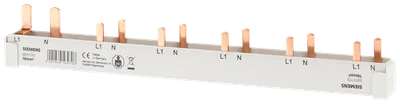

Siemens 5ST3772

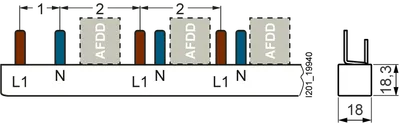

busbar 1-pole+N, 16 mm2, for FI5SV(1+N) and 5x(AFDD 5SM601+compact), fixed length 216 mm

SiemensMFR # 5ST3772SKU # YLSCQDVPPIR3CPZ

product brand nameSENTRON

product designationPin busbar

design of the product1x (1PH+N) + 5x (1PH+N)

design of pole1P+N

phase number2

operational current rated value80 A

Have questions?Chat on WhatsApp

About This Product

busbar 1-pole+N, 16 mm2, for FI5SV(1+N) and 5x(AFDD 5SM601+compact), fixed length 216 mm

Siemens 5ST3772

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product1x (1PH+N) + 5x (1PH+N)

General technical data

compatibilityfor RCCB 2P N right and 5 AFDD (5SM601.) + compact device

design of pole1P+N

phase number2

operational current rated value80 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 2P N right

colorlight grey

Product details

product component with end capYes

product feature attachable arc fault detection deviceYes

product feature insulatedYes

suitable for compact devicesYes

can be cutYes

number of devices suitable for fitting6

type of electrical connectionPin

Mechanical Design

module width18 mm

height18 mm

width18 mm

length214 mm

number of modular width units12

cross-section16 mm²

angle of the pin of busbar0°

Net Weight93 g

Accessories 11

Genuine accessories that can be used with the Siemens 5ST3772 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3788-0	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5SM6011-2	Uyumlu ürün
5SM6014-2	Uyumlu ürün
5SM6021-2	Uyumlu ürün
5SM6024-2	Uyumlu ürün
5SM6011-1	Uyumlu ürün
5SM6021-1	Uyumlu ürün
