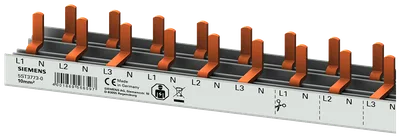

Siemens 5ST3773-0

compact pin busbar, 10 mm2, connection 3-pole/ N compact device 1 MW safe to touch 1m can be cut

SiemensMFR # 5ST3773-0SKU # YLSBUKKD1805UFG

product brand nameSENTRON

product designationPin busbar

design of the product60x (1PH+N)

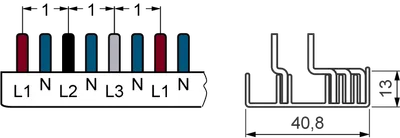

design of the phase tapL1/N/L2/N/L3/N

compatibilityfor compact devices

design of pole3P+N

Have questions?Chat on WhatsApp

About This Product

compact pin busbar, 10 mm2, connection 3-pole/ N compact device 1 MW safe to touch 1m can be cut

Siemens 5ST3773-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product60x (1PH+N)

design of the phase tapL1/N/L2/N/L3/N

General technical data

compatibilityfor compact devices

design of pole3P+N

phase number4

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesYes

can be cutYes

number of devices suitable for fitting60

type of electrical connectionPin

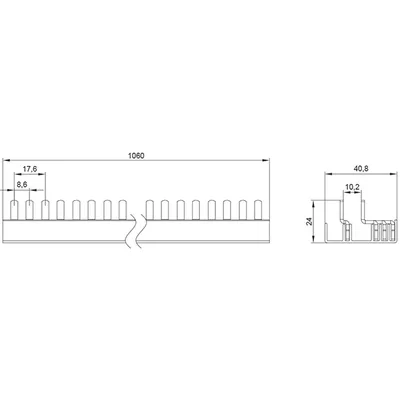

Mechanical Design

module width18 mm

height13 mm

width41 mm

length1 060 mm

number of modular width units59

cross-section10 mm²

angle of the pin of busbar0°

Net Weight679 g
