How can I get a price quote for Siemens 5SV1316-1KK13?

You can request a fast quote for Siemens 5SV1316-1KK13 from Yılsa Engineering. Reference part number YLSBZKHGXPRETS0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SV1316-1KK13 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SV1316-1KK13 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SV1316-1KK13?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

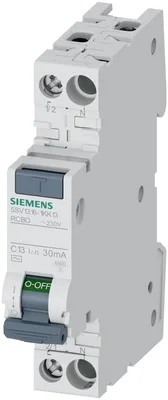

Siemens 5SV1316-1KK13

RCBO compact 1 MW 1-pole+N 6 kA type AC 30 mA C13, use of these devices is not permitted in all countries. Observe national installation regulations!

SiemensMFR # 5SV1316-1KK13SKU # YLSBZKHGXPRETS0

product brand nameSENTRON

product designationRCBO

design of the productInstantaneous

number of poles2

number of poles with protection1

design of pole1P+N

Have questions?Chat on WhatsApp

About This Product

RCBO compact 1 MW 1-pole+N 6 kA type AC 30 mA C13, use of these devices is not permitted in all countries. Observe national installation regulations!

Siemens 5SV1316-1KK13

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRCBO

design of the productInstantaneous

General technical data

number of poles2

number of poles with protection1

design of pole1P+N

tripping characteristic classC

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution2

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) rated value253 V

surge voltage resistance rated value4 000 V

tripping fault current rated value30 mA

— at 30 °C rated value13 A

— at 40 °C rated value12.35 A

— at 45 °C rated value11.96 A

— at 50 °C rated value11.57 A

— at 55 °C rated value11.18 A

— at 60 °C rated value10.79 A

— at 65 °C rated value10.4 A

— at 70 °C rated value10.01 A

operational current at AC rated value13 A

residual current typeAC

Supply voltage

at AC rated value230 V

for testing equipment minimum195 V

operating frequency50/60 Hz

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to EN 60898 rated value6 kA

according to IEC 60947-2 rated value10 kA

short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value6 kA

rated residual switching capacity (IΔm) according to IEC 61009-14.5 kA

energy limitation class3

Dissipation

maximum2.5 W

Product details

product feature touch protectionYes

product component neutral conductor switchingYes

product feature halogen-freeYes

product feature silicon-freeYes

Connections

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum10 mm²

minimum1.2 N·m

maximum2 N·m

position of power supply cordEither top or bottom

Mechanical Design

height90 mm

width18 mm

depth77 mm

installation depth70 mm

number of modular width units1

mounting positionany

Net Weight127 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity

minimum-25 °C

maximum45 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Accessories 64

Genuine accessories that can be used with the Siemens 5SV1316-1KK13 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3010	Aksesuar
5ST3020	Aksesuar
5ST3062	Aksesuar
5ST3071	Aksesuar
5SM6011-2	Aksesuar
5TG8240	Aksesuar
8WH8210-0AA35	Aksesuar
8WH8210-0AA36	Aksesuar
5SW3004	Aksesuar
5SW3005	Aksesuar
5SW3006	Aksesuar
5SW3007	Aksesuar
5ST2134	Aksesuar
7LF9006	Aksesuar
8GB4561	Aksesuar
8GB4562	Aksesuar
5ST3820-6	Aksesuar
5ST2135	Aksesuar
5ST2136	Aksesuar
8GB4563	Aksesuar
8GB4564	Aksesuar
5ST3785-4	Seçmeli zorunlu ürün
5ST3790-1	Seçmeli zorunlu ürün
5ST3790-2	Seçmeli zorunlu ürün
5ST3795-4	Seçmeli zorunlu ürün
5ST3774-0	Seçmeli zorunlu ürün
5ST3778-0	Seçmeli zorunlu ürün
5ST3784-0	Seçmeli zorunlu ürün
5ST3784-0KL	Seçmeli zorunlu ürün
5ST3770-8	Seçmeli zorunlu ürün
5ST3771-0	Seçmeli zorunlu ürün
5ST3764	Seçmeli zorunlu ürün
5ST3761	Seçmeli zorunlu ürün
5ST3763	Seçmeli zorunlu ürün
5ST3765	Seçmeli zorunlu ürün
5ST3770-6	Seçmeli zorunlu ürün
5ST3770-7	Seçmeli zorunlu ürün
5ST3785-0	Seçmeli zorunlu ürün
5ST3760	Seçmeli zorunlu ürün
5ST3762	Seçmeli zorunlu ürün
5ST3783-4	Seçmeli zorunlu ürün
5ST3674-7	Seçmeli zorunlu ürün
5ST3783-1	Seçmeli zorunlu ürün
5ST3673-0	Seçmeli zorunlu ürün
5ST3674-0	Seçmeli zorunlu ürün
5ST3783-0	Seçmeli zorunlu ürün
5ST3795-0	Seçmeli zorunlu ürün
5ST3687-0	Seçmeli zorunlu ürün
5ST3787-0	Seçmeli zorunlu ürün
5ST3675-0	Seçmeli zorunlu ürün
5ST3676-0	Seçmeli zorunlu ürün
5ST3685-0	Seçmeli zorunlu ürün
5ST3775-0	Seçmeli zorunlu ürün
5ST3776-0	Seçmeli zorunlu ürün
5ST3780-0	Seçmeli zorunlu ürün
5ST3674-6	Seçmeli zorunlu ürün
5ST3772	Seçmeli zorunlu ürün
5ST3773-0	Seçmeli zorunlu ürün
5ST3777-0	Seçmeli zorunlu ürün
5ST3783-0KL	Seçmeli zorunlu ürün
5ST3673-4	Seçmeli zorunlu ürün
5ST3673-6	Seçmeli zorunlu ürün
5ST3673-7	Seçmeli zorunlu ürün
5ST3783-1KL	Seçmeli zorunlu ürün
