How can I get a price quote for Siemens 5SM6011-2?

You can request a fast quote for Siemens 5SM6011-2 from Yılsa Engineering. Reference part number YLSQUUZXNPD7NLO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SM6011-2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SM6011-2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SM6011-2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

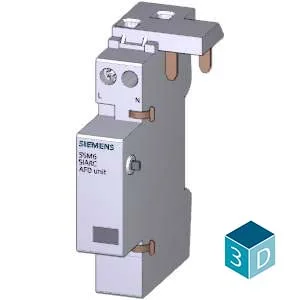

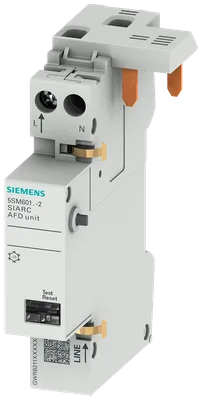

Siemens 5SM6011-2

arc fault detection unit AFDD, 1-16 A 230 V for MCB 5SL60, 5SY60 and RCCB/MCB 5SV1 1+N 1MW

SiemensMFR # 5SM6011-2SKU # YLSQUUZXNPD7NLO

product brand nameSENTRON

product designationArc fault detection unit

design of the productfor MCB 5SY60

number of poles2

design of pole1P+N

switching function short-term delayedNo

Have questions?Chat on WhatsApp

About This Product

arc fault detection unit AFDD, 1-16 A 230 V for MCB 5SL60, 5SY60 and RCCB/MCB 5SV1 1+N 1MW

Siemens 5SM6011-2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationArc fault detection unit

design of the productfor MCB 5SY60

General technical data

number of poles2

design of pole1P+N

size of installation devices according to DIN 438801

touch protection against electrical shock according to EN 50274finger and back-of-hand safe

mechanical service life (operating cycles) typical10 000

switching function short-term delayedNo

overvoltage category3

degree of pollution2

type of voltage of the operating voltageAC

Supply voltage

at AC230 V

value range of the supply voltage frequency50Hz

Protection class

protection class IPIP20, with connected protective device and conductors

Product details

product feature halogen-freeYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

communication functionNo

other measurement functionNo

Connections

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum10 mm²

minimum2 N·m

maximum2.5 N·m

position of power supply cordBottom

Mechanical Design

height95 mm

width36 mm

depth68.5 mm

installation depth70 mm

number of modular width units1

number of modular width units of the mountable protective device1

fastening methodDIN rail

mounting positionany

Net Weight98 g

Environmental conditions

minimum-25 °C

maximum45 °C

minimum-40 °C

maximum75 °C

ambient temperature with relative humidity 95%55 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Certificates

reference code according to IEC 81346-2F
