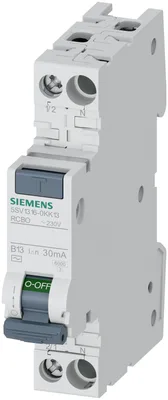

Siemens 5SV1316-0KK13

RCBO compact 1 MW 1-pole+N 6 kA type AC 30 mA B13 use of these devices is not permitted in all countries. Observe national installation regulations!

SiemensMFR # 5SV1316-0KK13SKU # YLSTDHTC9TAHELF

product brand nameSENTRON

product designationRCBO

design of the productInstantaneous

number of poles2

number of poles with protection1

design of pole1P+N

Have questions?Chat on WhatsApp

About This Product

RCBO compact 1 MW 1-pole+N 6 kA type AC 30 mA B13 use of these devices is not permitted in all countries. Observe national installation regulations!

Siemens 5SV1316-0KK13

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRCBO

design of the productInstantaneous

General technical data

number of poles2

number of poles with protection1

design of pole1P+N

tripping characteristic classB

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution2

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) rated value253 V

surge voltage resistance rated value4 000 V

tripping fault current rated value30 mA

— at 30 °C rated value13 A

— at 40 °C rated value12.35 A

— at 45 °C rated value11.96 A

— at 50 °C rated value11.57 A

— at 55 °C rated value11.18 A

— at 60 °C rated value10.79 A

— at 65 °C rated value10.4 A

— at 70 °C rated value10.01 A

operational current at AC rated value13 A

residual current typeAC

Supply voltage

at AC rated value230 V

for testing equipment minimum195 V

operating frequency50/60 Hz

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to EN 60898 rated value6 kA

according to IEC 60947-2 rated value15 kA

short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value6 kA

rated residual switching capacity (IΔm) according to IEC 61009-14.5 kA

energy limitation class3

Dissipation

maximum2.6 W

Product details

product feature touch protectionYes

product component neutral conductor switchingYes

product feature halogen-freeYes

product feature silicon-freeYes

Connections

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum10 mm²

minimum1.2 N·m

maximum2 N·m

position of power supply cordEither top or bottom

Mechanical Design

height90 mm

width18 mm

depth77 mm

installation depth70 mm

number of modular width units1

mounting positionany

Net Weight128 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity

minimum-25 °C

maximum45 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028
