How can I get a price quote for Siemens 5SL6825-6?

You can request a fast quote for Siemens 5SL6825-6 from Yılsa Engineering. Reference part number YLSVMFUWKUOD5FC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SL6825-6 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SL6825-6 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SL6825-6?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

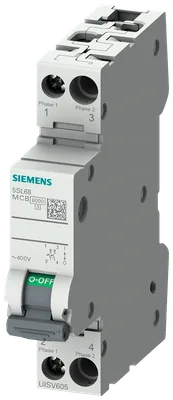

Siemens 5SL6825-6

miniature circuit breaker 6 kA 400 V AC, 2-pole, width 1 MW (18 mm), switching characteristic B, 25 A

SiemensMFR # 5SL6825-6SKU # YLSVMFUWKUOD5FC

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker compact

design of pole2P

tripping characteristic classB

type of voltage of the operating voltageAC

Have questions?Chat on WhatsApp

About This Product

miniature circuit breaker 6 kA 400 V AC, 2-pole, width 1 MW (18 mm), switching characteristic B, 25 A

Siemens 5SL6825-6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

design of the productMiniature circuit breaker compact

General technical data

design of pole2P

tripping characteristic classB

mechanical service life (operating cycles) typical10 000

Voltage

type of voltage of the operating voltageAC

— at 30 °C rated value25 A

operational current at AC rated value25 A

Supply voltage

at AC400 V

value range of the supply voltage frequency50/60 Hz

minimum24 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

according to EN 60898 rated value6 kA

grid spacing35 mm

Suitability

suitability for operationresidential buildings/infrastructure/mobility

Product details

product feature touch protectionYes

combined terminal topNo

combined terminal bottomNo

neutral conductor switchingNo

product feature properties for main switches in accordance with EN 60204-1No

product feature halogen-freeYes

product feature sealableYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

Product function

communication functionNo

other measurement functionNo

Connections

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum16 mm²

minimum0.8 mm²

maximum10 mm²

minimum10.6 lbf·in

maximum22 lbf·in

minimum1.2 N·m

maximum2 N·m

position of power supply cordAny

Mechanical Design

height90 mm

width18 mm

depth76 mm

installation depth70 mm

number of modular width units1

fastening methodDIN rail

mounting positionany

Net Weight150 g

Environmental conditions

standardIEC60898-1

vibration resistance according to IEC 60068-2-6Yes

minimum-40 °C

maximum70 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-306

Accessories 64

Genuine accessories that can be used with the Siemens 5SL6825-6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3807	Aksesuar
5ST3806	Aksesuar
5ST3010	Aksesuar
5ST3020	Aksesuar
5ST3062-0MC	Aksesuar
5ST3062	Aksesuar
5TG8240	Aksesuar
8WH8210-0AA36	Aksesuar
8WH8210-0AA35	Aksesuar
5SW3004	Aksesuar
5SW3005	Aksesuar
5SW3006	Aksesuar
5SW3007	Aksesuar
5ST2134	Aksesuar
7LF9006	Aksesuar
8GB4561	Aksesuar
8GB4562	Aksesuar
8GB4563	Aksesuar
8GB4564	Aksesuar
5ST2136	Aksesuar
5ST2135	Aksesuar
5ST3675-0	Seçmeli zorunlu ürün
5ST3676-0	Seçmeli zorunlu ürün
5ST3685-0	Seçmeli zorunlu ürün
5ST3775-0	Seçmeli zorunlu ürün
5ST3776-0	Seçmeli zorunlu ürün
5ST3674-6	Seçmeli zorunlu ürün
5ST3674-7	Seçmeli zorunlu ürün
5ST3773-0	Seçmeli zorunlu ürün
5ST3777-0	Seçmeli zorunlu ürün
5ST3783-0KL	Seçmeli zorunlu ürün
5ST3673-4	Seçmeli zorunlu ürün
5ST3673-6	Seçmeli zorunlu ürün
5ST3783-1	Seçmeli zorunlu ürün
5ST3787-0	Seçmeli zorunlu ürün
5ST3783-1KL	Seçmeli zorunlu ürün
5ST3783-4	Seçmeli zorunlu ürün
5ST3785-0	Seçmeli zorunlu ürün
5ST3785-4	Seçmeli zorunlu ürün
5ST3790-1	Seçmeli zorunlu ürün
5ST3790-2	Seçmeli zorunlu ürün
5ST3795-4	Seçmeli zorunlu ürün
5ST3774-0	Seçmeli zorunlu ürün
5ST3778-0	Seçmeli zorunlu ürün
5ST3784-0	Seçmeli zorunlu ürün
5ST3784-0KL	Seçmeli zorunlu ürün
5ST3673-7	Seçmeli zorunlu ürün
5ST3795-0	Seçmeli zorunlu ürün
5ST3780-0	Seçmeli zorunlu ürün
5ST3674-0	Seçmeli zorunlu ürün
5ST3783-0	Seçmeli zorunlu ürün
5ST3673-0	Seçmeli zorunlu ürün
5ST3764	Seçmeli zorunlu ürün
5ST3687-0	Seçmeli zorunlu ürün
5ST3760	Seçmeli zorunlu ürün
5ST3761	Seçmeli zorunlu ürün
5ST3762	Seçmeli zorunlu ürün
5ST3763	Seçmeli zorunlu ürün
5ST3765	Seçmeli zorunlu ürün
5ST3770-8	Seçmeli zorunlu ürün
5ST3771-0	Seçmeli zorunlu ürün
5ST3770-6	Seçmeli zorunlu ürün
5ST3770-7	Seçmeli zorunlu ürün
5ST3772	Seçmeli zorunlu ürün
