How can I get a price quote for FESTO VMPAL-EPL-IPO32?

You can request a fast quote for FESTO VMPAL-EPL-IPO32 from Yılsa Engineering. Reference part number CEY-937FC781BD88. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VMPAL-EPL-IPO32 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VMPAL-EPL-IPO32 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VMPAL-EPL-IPO32?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

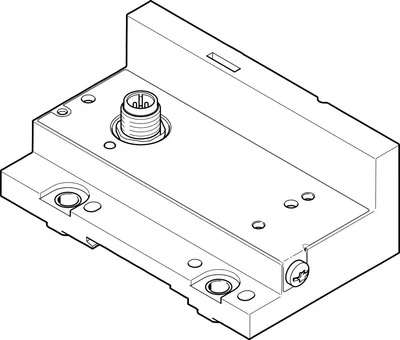

FESTO VMPAL-EPL-IPO32

End plate

FESTOMFR # VMPAL-EPL-IPO32SKU # CEY-937FC781BD88

Width64.8

Length107.3

Reverse polarity protectionFor operating voltage

Mounting positionAny

DiagnosisUndervoltage of load supplies

Max. number of valve positions32

Have questions?Chat on WhatsApp

About This Product

FESTO VMPAL-EPL-IPO32 (End plate) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VMPAL-EPL-IPO32 — price, stock availability and technical specifications.

FESTO VMPAL-EPL-IPO32

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Width64.8

Length107.3

Reverse polarity protectionFor operating voltage

Mounting positionAny

DiagnosisUndervoltage of load supplies

Max. number of valve positions32

Valve terminal structureValve sizes can be mixed

Max. number of valve coils32

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Internal current consumption, load voltage30

Internal current consumption, operating voltage30

Nominal operating voltage DC24

ProtocolI-Port, IO-Link®

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 40

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-5, 50

Product weight170

IO-Link, Protocol versionDevice V 1.0

IO-Link, communication modeCOM2 (38.4 kBaud), COM3 (230.4 kBaud)

IO-Link, Port classB

IO-Link, Number of ports1

IO-Link, Process data length OUT1 - 4 bytes

IO-Link, Min. cycle timeDevice 3.2 ms

Electrical connection 1, functionIO-Link®

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores5

Electrical connection 1, connection pattern00995383

LED display, bus-specific1x communication status

Note on materialsRoHS compliant

Material end plateReinforced PPA

Accessories 28

Genuine accessories that can be used with the FESTO VMPAL-EPL-IPO32 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CTEU-CO	Bus node · Electrical accessories
CTEU-DN	Bus node · Electrical accessories
CTEU-PB	Bus node · Electrical accessories
CTEU-AS	Bus node · Electrical accessories
CTEU-EC	Bus node · Electrical accessories
NEBU-M12G5-E-5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-7.5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-M12G5	Connecting cable · Connecting cables
CTEU-CC	Bus node · Electrical accessories
CTEU-CP	Bus node · Electrical accessories
CTEU-PN	Bus node · Electrical accessories
CTEU-EP	Bus node · Electrical accessories
NEBS-M12G5-ES-5-LE5	Connecting cable · Connecting cables
NEBS-M12G5-ES-10-LE5	Connecting cable · Connecting cables
NEBC-M12G5-ES-5-LE5-CO	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-10-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE5	Connecting cable · Connecting cables
NEBU-M12G5-E-5-Q8N-LE5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-LE5	Connecting cable · Connecting cables
NEBC-M12G5-S-1,5-N-M12G5	Connecting cable · Connecting cables
CTEU-VN	Bus node · Electrical accessories
NEBS-M12G5-ES-15-LE5	Connecting cable · Connecting cables
CTEU-PB-EX1C	Bus node · Electrical accessories
CTEU-PN-EX1C	Bus node · Electrical accessories
CTEU-EP-EX1C	Bus node · Electrical accessories
