How can I get a price quote for FESTO CTEU-DN?

You can request a fast quote for FESTO CTEU-DN from Yılsa Engineering. Reference part number CEY-937FC781CE28. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CTEU-DN in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CTEU-DN genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CTEU-DN?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

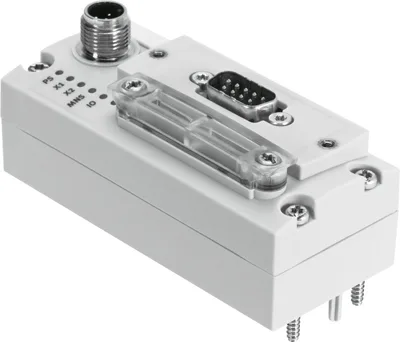

FESTO CTEU-DN

Bus node. For valve terminals VTUG, MPA-L, VTOC. Can be expanded into the installation system CTEL. Fieldbus-typical LEDs, interfaces and switching elements. Isolated power supply for electronics and valves

FESTOMFR # CTEU-DNSKU # CEY-937FC781CE28

ProtocolDeviceNet®

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Product weight90

Ambient temperature0, 50

Storage temperature-20, 70

Have questions?Chat on WhatsApp

About This Product

FESTO CTEU-DN

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolDeviceNet®

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Type of mountingOn electrical interface, On electrical connection block

Product weight90

Ambient temperature0, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state, Unused connections sealed

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Material housingMakrolon®

LED display, product-specificPS: Operating voltage for electronics and load supply, X1: System status of module at I-Port 1, X2: System status of module at I-Port 2

LED display, bus-specificIO: I/O status, MNS: Network status

DiagnosisCommunication error, System diagnostics, Undervoltage

Operator controlsDIL switch

Note on fieldbus interfaceOptional connection technology with accessories: micro style (plug/socket M12x1 A-coded, 5-pin, IP65 protection), open style (terminal strip, 5-pin, IP20 protection), Open style (screw terminal, 5-pin

Fieldbus interfaceCAN bus

Field bus, protocolDeviceNet®

Fieldbus interface, functionBus connection incoming/outgoing

Field bus, connection typePlug

Field bus, connection systemSub-D

Fieldbus interface, connection pattern00995639

Field bus, connection pattern9

Field bus interface, electrical isolationYes

Field bus interface, transmission rate500 kbps

Max. address volume, inputs8

Max. address volume, outputs8

ParameterisationDiagnostic behaviour, Fail-safe and idle response

Internal cycle time1 ms per 1 byte of user data

Configuration supportEDS file

Additional functionsAcyclic data access via "Explicit Message", QuickConnect, System status can be mapped using process data

Power supply, functionElectronics and load

Power supply, connection typePlug

power supply, connection systemM12x1, B-encoded to EN 61076-2-101

Power supply, connection pattern00995719

Power supply, number of pins/wires5

Operational voltage range DC18, 30

Nominal operating voltage DC24

Max. power supply4

Intern power consumption nominal operating voltageTyp. 65 mA

Accessories 6

Genuine accessories that can be used with the FESTO CTEU-DN motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
FBS-SUB-9-BU-2X5POL-B	Plug · Bus interface
FBA-2-M12-5POL	Bus connection · Electrical accessories
FBA-1-SL-5POL	Bus connection · Electrical accessories
FBSD-KL-2X5POL	Bus connection · Electrical accessories
NECB-M12G5-C2	Socket · Electrical accessories
NECB-S-M12G5-C2	Plug · Electrical accessories
