How can I get a price quote for Festo CTEU-EP?

You can request a fast quote for Festo CTEU-EP from Yılsa Engineering. Reference part number YLSW5RLWKDX7NS. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CTEU-EP in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CTEU-EP genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CTEU-EP?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

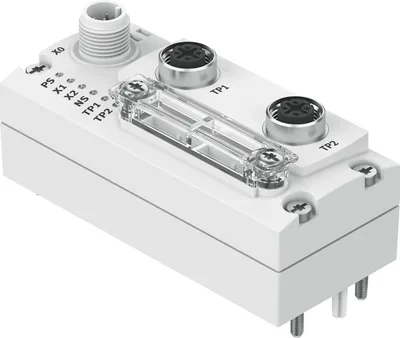

Festo CTEU-EP

Bus node. For valve terminals VTUG, MPA-L, VTOC. Can be expanded into the installation system CTEL. Fieldbus-typical LEDs, interfaces and switching elements. Isolated power supply for electronics and valves

FestoMFR # CTEU-EPSKU # YLSW5RLWKDX7NS

ProtocolEtherNet/IP, Modbus TCP

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Product weight98

Ambient temperature0, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Have questions?Chat on WhatsApp

About This Product

Festo CTEU-EP

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolEtherNet/IP, Modbus TCP

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Product weight98

Ambient temperature0, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Material housingPA

LED display, product-specificPS: Operating voltage for electronics and load supply, X1: System status of module at I-Port 1, X2: System status of module at I-Port 2

LED display, bus-specificNS: Network status, TP1: Network active port 1, TP2: Network active port 2

DiagnosisCommunication error, System diagnostics, Undervoltage

Operator controlsDIL switch

Field bus interface2x socket, M12x1, 4-pin, D-coded

Max. address volume, inputs64

Max. address volume, outputs64

ParameterisationDiagnostic behaviour, Fail-safe and idle response

Baud rate10/100 Mbit/s

Internal cycle time1 ms per 1 byte of user data

Configuration supportEDS file

Additional functionsAddressConflictDetection (ACD), Acyclic data access via "Explicit Message", EtherNet/IP Quickconnect, IP addressing via DHCP, DIL switch, fieldbus or FFT, Integrated switch, Ring topology (DLR), SNMP,

Operational voltage range DC18, 30

Nominal operating voltage DC24

Max. power supply4

Intern power consumption nominal operating voltageTyp. 65 mA

Accessories 9

Genuine accessories that can be used with the Festo CTEU-EP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBC-D12G4-ES-1-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-1-S-R3G4-ET	Connecting cable · Connecting cables
NEBU-M12G5-E-5-Q8N-M12G5	Connecting cable · Connecting cables
NECU-M-S-D12G4-C2-ET	Plug · Electrical accessories
NEBU-M12G5-E-7.5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-5-Q8N-LE5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-LE5	Connecting cable · Connecting cables
NECB-M12G5-C2	Socket · Electrical accessories
