How can I get a price quote for Festo CTEU-CP?

You can request a fast quote for Festo CTEU-CP from Yılsa Engineering. Reference part number YLS4YECUEWINE2U. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CTEU-CP in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CTEU-CP genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CTEU-CP?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

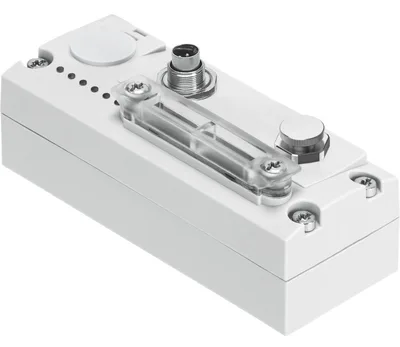

Festo CTEU-CP

Bus node. For valve terminals VTUG, MPA-L, VTOC. Can be expanded into the installation system CTEL. Fieldbus-typical LEDs, interfaces and switching elements. Isolated power supply for electronics and valves

FestoMFR # CTEU-CPSKU # YLS4YECUEWINE2U

ProtocolCPI-B

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Product weight105

Ambient temperature0, 50

Storage temperature-20, 70

Have questions?Chat on WhatsApp

About This Product

Festo CTEU-CP

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolCPI-B

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Type of mountingOn electrical interface, On electrical connection block

Product weight105

Ambient temperature0, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state, Unused connections sealed

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Material housingPA

LED display, product-specificPS: Operating voltage for electronics and load supply, X1: System status of module at I-Port 1, X2: System status of module at I-Port 2

LED display, bus-specificRUN: Communication OK

DiagnosisCommunication error, System diagnostics, Undervoltage

Operator controlsDIL switch

Fieldbus interfaceCP installation system

Field bus, protocolCPI-B

Fieldbus interface, functionIncoming bus connection, Power supply

Field bus, connection typePlug

Field bus, connection systemM9x0.5

Fieldbus interface, connection pattern00992012

Field bus, connection pattern5

Field bus interface, transmission rate1000 kbps

Fieldbus interface 2, functionBus connection continuing, Power supply

Fieldbus interface 2, connection typeSocket

Fieldbus interface 2, connection technologyM9x0.5

Fieldbus interface 2, connection pattern00995398

Fieldbus interface 2, number of pins/wires5

Max. address volume, inputs4

Max. address volume, outputs4

ParameterisationDiagnostic behaviour, Fail-safe response

Internal cycle time2 ms per 2 byte of user data

Configuration supportNone

Operational voltage range DC18, 30

Nominal operating voltage DC24

Max. power supply3.4

Intern power consumption nominal operating voltageTyp. 50 mA

Power failure bridging10

Accessories 8

Genuine accessories that can be used with the Festo CTEU-CP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KVI-CP-3-WS-WD-2	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-5	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-0,25	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-0,5	Connecting cable · Connecting cables
KVI-CP-3-WS-WD-8	Connecting cable · Connecting cables
KVI-CP-3-GS-GD-2	Connecting cable · Connecting cables
KVI-CP-3-GS-GD-5	Connecting cable · Connecting cables
KVI-CP-3-GS-GD-8	Connecting cable · Connecting cables
