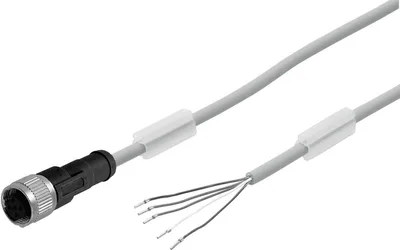

Festo NEBS-M12G5-ES-5-LE5

Connecting cable. For connection with rectangular design L1, grid dimension 5.8 mm. For thread M12x1 A-coded according to EN 61076-2-101. For thread M16x0.75. Connecting cable for pressure sensor SPAN. Degree of protection IP40, IP65, IP67, IP69K, when mounted. Cable length 0.5 ... 10 m. With PVC or PUR cable. Ambient temperature -40 ... +70 °C

FestoMFR # NEBS-M12G5-ES-5-LE5SKU # YLSPHYFFYXLWKJ5

Based on standardEN 61076-2-101

Cable designationWith 2x inscription label holders

Frequency of connection100

Type of mountingVia knurled nut

Product weight276

Electrical connection 1, functionField device side

Have questions?Chat on WhatsApp

About This Product

Festo NEBS-M12G5-ES-5-LE5

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardEN 61076-2-101

Cable designationWith 2x inscription label holders

Frequency of connection100

Type of mountingVia knurled nut

Product weight276

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores5

Electrical connection 1, used connections/cores5

Electrical connection 1, type of mountingScrew-type lock, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00995384

Electrical connection 1, terminal allocationPin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK, Pin 5 = GY

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores5

Operational voltage range DC0, 60

Operational voltage range AC0, 48

Current rating at 40° C4

Immunity to surge1.5

Protective conductor connectionNot provided

ShieldingYes

Cable length5

Cable characteristicSuitable for energy chains

Test conditions cableTest conditions on request

Bending radius, fixed cable26

Bending radius, moving cable52

Cable diameter5.25

Cable diameter tolerance±0.2 mm

Cable structure5 x 0.34 mm²

Nominal cross section conductor0.34

Conductor nominal cross sectionAWG22

Wire endsCut off bluntly

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Special characteristicsUV-resistant, Abrasion-resistant, Low adhesion, Flame-retardant and self-extinguishing, Hydrolysis-resistant, Alkali-resistant, Solvent-resistant, Resistant to microbes, Oil-resistant, Acid-resistant

Ambient temperature-40, 80

Ambient temperature with moving cable-25, 60

Overvoltage categoryII

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant, Free of halogen, Silicone free

Pollution degree3

Note on the contamination levelIn mounted state

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourBlack

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockNickel-plated die-cast zinc

Material sealsNBR

Material electrical contactNickel-plated and gold-plated bronze

Material insulating sheathPP
