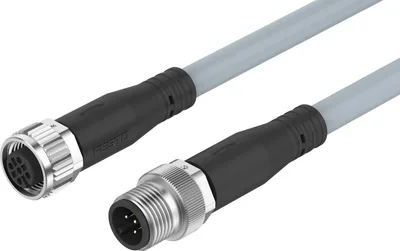

FESTO NEBU-M12G5-E-10-Q8N-M12G5

Connecting cable. Connecting cables with 5-pin plug/socket M12x1 A-coded according to EN 61076-2-101. Nominal conductor cross-section 1 mm². Cable length 5 … 10 m

FESTOMFR # NEBU-M12G5-E-10-Q8N-M12G5SKU # CEY-937FC781BC2E

Cable designationWithout inscription label holder

Frequency of connection100

Product weight835

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Have questions?Chat on WhatsApp

About This Product

Connecting cable. Connecting cables with 5-pin plug/socket M12x1 A-coded according to EN 61076-2-101. Nominal conductor cross-section 1 mm². Cable length 5 … 10 m

FESTO NEBU-M12G5-E-10-Q8N-M12G5

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 60947-5-2, EN 61076-2-101, IEC 61010-1

Cable designationWithout inscription label holder

Frequency of connection100

Product weight835

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores5

Electrical connection 1, used connections/cores5

Electrical connection 1, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00995384

Electrical connection 1, terminal allocationPin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK, Pin 5 = GY

Electrical connection 2, functionControl side

Electrical connection 2, designRound

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores5

electrical connection 2, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 2, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 2, connection pattern00995383

Electrical connection 2, terminal allocationPin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK, Pin 5 = GY

Operational voltage range DC0, 60

Operational voltage range AC0, 60

Current rating at 40° C4

Note on permissible current load at 40°CObserve derating

Immunity to surge1.5

Protective conductor connectionNot provided

ShieldingNo

Conductor resistance79.9

Cable length10

Cable characteristicSuitable for energy chains

Test conditions cableBending strength: to Festo standard, Test conditions on request, Flexural strength: >50000 cycles, bending radius 5 mm, Energy chain: > 5 million cycles, bending radius 75 mm, Acceleration: 10 m/s², S

Bending radius, fixed cable21

Bending radius, moving cable71

Cable diameter7

Cable diameter tolerance± 0.1 mm

Cable structure5 x 1 mm²

Nominal cross section conductor1

Degree of protectionIP65, IP68, IP69K

Note on degree of protectionIn mounted state

Special characteristicsOil-resistant

Vibration resistanceTest conditions on request

Shock resistanceTest conditions on request

Ambient temperature-25, 80

Ambient temperature with moving cable-5, 80

Storage temperature-25, 80

Relative air humidityMax. 93% at 40 °C

Nominal altitude of use<= 2000 m NHN

Overvoltage categoryII

CE mark (see declaration of conformity)To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Note on materialsFree of halogen, Copper-free, Free of phosphoric acid ester

Pollution degree3

Note on the contamination levelIn mounted state

Corrosion resistance class CRC2 - Moderate corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockBrass, nickel-plated

Material sealsNBR

Material electrical contactGold-plated copper alloy

Material insulating sheathPP
