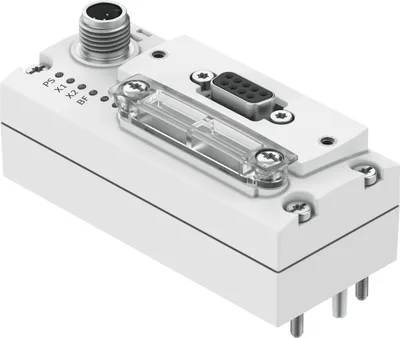

FESTO CTEU-PB

Bus node. For valve terminals VTUG, MPA-L, VTOC. Can be expanded into the installation system CTEL. Fieldbus-typical LEDs, interfaces and switching elements. Isolated power supply for electronics and valves

FESTOMFR # CTEU-PBSKU # CEY-937FC781CE27

ProtocolPROFIBUS DP

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Product weight90

Ambient temperature0, 50

Storage temperature-20, 70

Have questions?Chat on WhatsApp

About This Product

FESTO CTEU-PB

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolPROFIBUS DP

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Type of mountingOn electrical interface, On electrical connection block

Product weight90

Ambient temperature0, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state, Unused connections sealed

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Material housingPA

LED display, product-specificPS: Operating voltage for electronics and load supply, X1: System status of module at I-Port 1, X2: System status of module at I-Port 2

LED display, bus-specificBF: Bus fault

DiagnosisCommunication error, System diagnostics, Undervoltage

Operator controlsDIL switch

Note on fieldbus interfacePlug/socket M12x1 B-coded, 5-pin, IP65 protection, Optional connection technology with accessories:

Fieldbus interfacePROFIBUS

Field bus, protocolPROFIBUS DP

Fieldbus interface, functionBus connection incoming/outgoing

Field bus, connection typeSocket

Field bus, connection systemSub-D

Fieldbus interface, connection pattern00995638

Field bus, connection pattern9

Field bus interface, electrical isolationYes

Field bus interface, transmission rate500 kbps, 9.6 kbps, 93.75 kbps

Max. address volume, inputs16

Max. address volume, outputs16

ParameterisationDiagnostic behaviour, Fail-safe response

Internal cycle time1 ms per 1 byte of user data

Configuration supportGSD file

Additional functionsEmergency message, System status via diagnostic test

Power supply, functionElectronics and load

Power supply, connection typePlug

power supply, connection systemM12x1, A-coded according to EN 61076-2-101

Power supply, connection pattern00995383

Power supply, number of pins/wires5

Operational voltage range DC18, 30

Nominal operating voltage DC24

Max. power supply4

Intern power consumption nominal operating voltageTyp. 100 mA

Accessories 7

Genuine accessories that can be used with the FESTO CTEU-PB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
FBS-SUB-9-GS-DP-B	Plug · Bus interface
FBA-2-M12-5POL-RK	Bus connection · Electrical accessories
FBS-SUB-9-WS-PB-K	Plug · Electrical accessories
NECU-M-S-B12G5-C2-PB	Plug · Electrical accessories
NECU-M-B12G5-C2-PB	Plug socket · Electrical accessories
CACR-S-B12G5-220-PB	Terminating resistor · Electrical accessories
NECB-M12G5-C2	Socket · Electrical accessories
