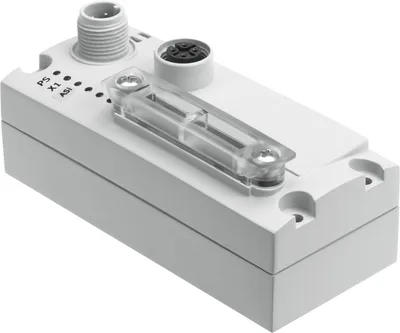

Festo CTEU-AS

Bus node. For valve terminals VTUG, MPA-L, VTOC. Can be expanded into the installation system CTEL. Fieldbus-typical LEDs, interfaces and switching elements. Isolated power supply for electronics and valves

FestoMFR # CTEU-ASSKU # YLSAA4POUXLKXH

ProtocolAS-i

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Product weight90

Ambient temperature0, 50

Storage temperature-20, 70

Have questions?Chat on WhatsApp

About This Product

Festo CTEU-AS

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolAS-i

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Type of mountingOn electrical interface, On electrical connection block

Product weight90

Ambient temperature0, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state, Unused connections sealed

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Approvalc UL us - Listed (Oil)

Note on materialsRoHS compliant

Material housingPA

LED display, product-specificPS: Operating voltage for electronics and load supply, X1: System status of module at I-Port 1

LED display, bus-specificAS-i: AS-Interface operation

DiagnosisCommunication error, System diagnostics, Undervoltage

Operator controlsDIL switch

Fieldbus interfaceAS-i

Field bus, protocolAS-i

Fieldbus interface, functionIncoming bus connection, Power supply

Field bus, connection typePlug

Field bus, connection systemM12x1, A-coded according to EN 61076-2-101

Fieldbus interface, connection pattern00995386

Field bus, connection pattern4

Fieldbus interface 2, functionBus connection continuing, Power supply

Fieldbus interface 2, connection typeSocket

Fieldbus interface 2, connection technologyM12x1, A-coded to EN 61076-2-101

Fieldbus interface 2, connection pattern00995385

Fieldbus interface 2, number of pins/wires4

Max. address volume, inputs2

Max. address volume, outputs2

ParameterisationWatchdog disable, Watchdog enable

Internal cycle time10 ms

Configuration supportNone

Operational voltage range DC20, 31.6

Nominal operating voltage DC30

Max. power supply4

Intern power consumption nominal operating voltageTyp. 50 mA
