How can I get a price quote for Festo NEBC-M12G5-S-1,5-N-M12G5?

You can request a fast quote for Festo NEBC-M12G5-S-1,5-N-M12G5 from Yılsa Engineering. Reference part number YLSXQD3OGP6E84R. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBC-M12G5-S-1,5-N-M12G5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBC-M12G5-S-1,5-N-M12G5 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBC-M12G5-S-1,5-N-M12G5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

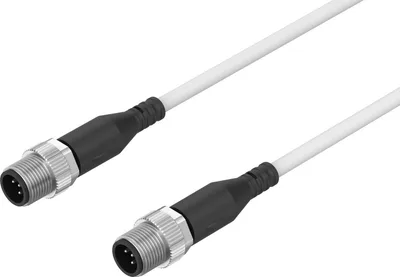

Festo NEBC-M12G5-S-1,5-N-M12G5

Connecting cable. Variants in easy-to-clean design. Standard variants, variants with shielding or as a hybrid cable. Variants suitable for energy chains. Variants with Ethernet, CANopen, I-Port or RS232

FestoMFR # NEBC-M12G5-S-1,5-N-M12G5SKU # YLSXQD3OGP6E84R

Cable designationWith accessories

Frequency of connection500

Product weight163

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typePlug

Have questions?Chat on WhatsApp

About This Product

Festo NEBC-M12G5-S-1,5-N-M12G5

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cable designationWith accessories

Frequency of connection500

Product weight163

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores5

Electrical connection 1, used connections/cores5

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00995383

Electrical connection 2, functionControl side

Electrical connection 2, designRound

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores5

electrical connection 2, type of mountingScrew-type lock

Electrical connection 2, connection pattern00995383

Operational voltage range DC0, 30

Operational voltage range AC0, 30

Current rating at 40° C4

Immunity to surge0.8

ShieldingYes

Cable length1.5

Cable characteristicStandard

Test conditions cableTest conditions on request

Cable diameter5

Cable structure4 x 0.34 mm²

Nominal cross section conductor0.34

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-25, 70

Ambient temperature with moving cable-5, 70

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC2 - Moderate corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourLight grey

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockBrass, nickel-plated

Material electrical contactGold-plated bronze, Gold-plated brass

Material insulating sheathPVC
