How can I get a price quote for Festo CTEU-PN?

You can request a fast quote for Festo CTEU-PN from Yılsa Engineering. Reference part number YLSBWCXS9FQ1DRO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CTEU-PN in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CTEU-PN genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CTEU-PN?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

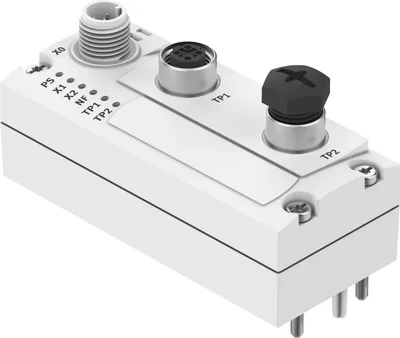

Festo CTEU-PN

Bus node. For valve terminals VTUG, MPA-L, VTOC. Can be expanded into the installation system CTEL. Fieldbus-typical LEDs, interfaces and switching elements. Isolated power supply for electronics and valves

FestoMFR # CTEU-PNSKU # YLSBWCXS9FQ1DRO

ProtocolPROFINET

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Product weight93

Ambient temperature0, 50

Storage temperature-20, 70

Have questions?Chat on WhatsApp

About This Product

Festo CTEU-PN

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolPROFINET

Dimensions (W x L x H)40 mm x 91 mm x 50 mm

Grid dimension40

Type of mountingOn electrical interface, On electrical connection block

Product weight93

Ambient temperature0, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state, Unused connections sealed

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Material housingPA

LED display, product-specificPS: Operating voltage for electronics and load supply, X1: System status of module at I-Port 1, X2: System status of module at I-Port 2

LED display, bus-specificNF: Network error, TP1: Network active port 1, TP2: Network active port 2

DiagnosisCommunication error, System diagnostics, Undervoltage

Fieldbus interfaceEthernet

Field bus, protocolPROFINET RT

Fieldbus interface, functionBus connection incoming/outgoing

Field bus, connection type2x socket

Field bus, connection systemM12x1, D-coded to EN 61076-2-101

Fieldbus interface, connection pattern00995716

Field bus, connection pattern4

Field bus interface, electrical isolationYes

Field bus interface, transmission rate100 Mbit/s

Max. address volume, inputs64

Max. address volume, outputs64

Internal cycle time1 ms per 1 byte of user data

Configuration supportGSDML file

Additional functionsConformance class C, Fast start-up (FSU), LLDP, Manufacturing Resource Planning, PROFINET IRT, PROFIenergy, SNMP, Shared device, Web server

Power supply, functionElectronics and load

Power supply, connection typePlug

power supply, connection systemM12x1, A-coded according to EN 61076-2-101

Power supply, connection pattern00995383

Power supply, number of pins/wires5

Operational voltage range DC18, 30

Nominal operating voltage DC24

Max. power supply4

Intern power consumption nominal operating voltageTyp. 80 mA

Accessories 5

Genuine accessories that can be used with the Festo CTEU-PN motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NECU-M-S-D12G4-C2-ET	Plug · Bus interface
NECB-M12G5-C2	Socket · Bus interface
NEBU-M12G5-E-5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-7.5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-M12G5	Connecting cable · Connecting cables
