How can I get a price quote for FESTO HGPD-40-A?

You can request a fast quote for FESTO HGPD-40-A from Yılsa Engineering. Reference part number CEY-937FC781BB5D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO HGPD-40-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO HGPD-40-A genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO HGPD-40-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

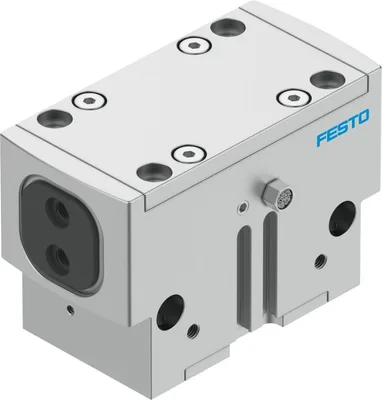

FESTO HGPD-40-A

Parallel gripper. Ideal for very harsh environments. Precise gripping even at high torque load. Max. gripping force at optimum installation space/force ratio. 8 sizes with total stroke of up to 40. Can be used as a double- and single-acting gripper. Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC). Suitable for external and internal gripping

FESTOMFR # HGPD-40-ASKU # CEY-937FC781BB5D

Size40

Stroke per gripper jaws10

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.1

Max. gripper jaw backlash Sz0.02

Rotationally symmetrical0.2

Have questions?Chat on WhatsApp

About This Product

FESTO HGPD-40-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size40

Stroke per gripper jaws10

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.1

Max. gripper jaw backlash Sz0.02

Rotationally symmetrical0.2

Repetition accuracy, gripper0.05

Number of gripper jaws2

Drive systemPneumatic

Mounting positionAny

Mode of operationDouble-acting

Gripper functionParallel

Gripper force back-upNone

DesignWedge-shaped drive, Force pilot operated motion sequence

Position detectionVia proximity switch

Symbol00991894

Operating pressure3, 8

Operating pressure of blocked air0, 0.5

Max. operating frequency of gripper2

Min. opening time at 0.6 MPa (6 bar, 87 psi)73

Min. closing time at 0.6 MPa (6 bar, 87 psi)77

Max. mass per external gripper finger445

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Degree of protectionIP65

Ambient temperature5, 60

Total gripping force, opening, 0.6MPa (6bar, 87 psi)630

Total gripping force, closing, 0.6MPa (6bar, 87 psi)598

Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi)315

Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)267

Mass moment of inertia10.1

Max. force on gripper jaw Fz static1200

Max. torque at gripper Mx static70

Max. torque at gripper My static45

Max. torque at gripper Mz static35

Lubrication interval for guide components5

Product weight1044

Type of mountingEither:, Via female thread and centring sleeve, Via through-hole and centring sleeve, Via through-hole and dowel pin, Via female thread and dowel pin

Pneumatic connection, blocked airM5

Pneumatic connectionM5

Note on materialsRoHS compliant

Material cover capHigh-alloy stainless steel

Material housingAnodised aluminium

Material gripper jawsHardened steel

Accessories 105

Genuine accessories that can be used with the FESTO HGPD-40-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DASI-B12-40-S8	Sensor bracket · Retainer for proximity sensor
QSM-M5-6	Push-in fitting · Fittings
QSML-M5-6	Push-in L-fitting · Fittings
SMT-8G-PS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
SMT-8G-PS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
PUN-H-6X1-NT	Plastic tubing · Tubes
BUB-HGPD-40	Gripper jaw blank · Mounting accessories
SMT-8G-NS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
PUN-H-6X1-BL	Plastic tubing · Tubes
SMT-8G-NS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
SIEN-M8B-PS-S-L	Proximity sensor · Proximity sensor for mounting kit
SIEN-M8B-PS-K-L	Proximity sensor · Proximity sensor for mounting kit
ZBH-9-B	Centring sleeve · Mounting accessories
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T-quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T-quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-4	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-4	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
B-M5-B	Blanking plug · Other connectors
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
HAPG-84	Adapter kit · Mounting accessories
HAPG-SD2-26	Adapter kit · Mounting accessories
DHAA-G-G6-20-B8-40	Adapter kit · Mounting accessories
DHAA-G-Q11-25-B12-40	Adapter kit · Mounting accessories
DHAA-G-Q11-32-B12-40	Adapter kit · Mounting accessories
DHAA-G-Q11-35-B12-40	Adapter kit · Mounting accessories
