Festo
YXCF-1
MFR #YXCF-1
SKU #YLSBOLBVXXHTEQR
Photo may not represent actual item. Refer to name and product specs for all details.

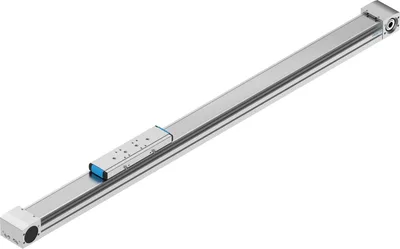

Festo ELGA-TB-KF-80-1000-0H
Toothed belt axis. Recirculating ball bearing guide for high loads and torques. High feed forces. Precision guide rail with high load capacity. Speeds up to 5 m/s with high acceleration up to 50 m/s². Optional: Food-safe (for further information, see www.festo.com/certificates/ELGA_KF). The motor can be flexibly mounted on 4 sides. Guide and toothed belt protected by cover band. 22 types in stock with short delivery times and modular products for custom variants. Long strokes of up to 8.5 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Effective diameter of drive pinion39.79
Working stroke1000
Size80
Stroke reserve0
Toothed-belt pitch5
Mounting positionAny
About This Product
Toothed belt axis. Recirculating ball bearing guide for high loads and torques. High feed forces. Precision guide rail with high load capacity. Speeds up to 5 m/s with high acceleration up to 50 m/s². Optional: Food-safe (for further information, see www.festo.com/certificates/ELGA_KF). The motor can be flexibly mounted on 4 sides. Guide and toothed belt protected by cover band. 22 types in stock with short delivery times and modular products for custom variants. Long strokes of up to 8.5 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Festo ELGA-TB-KF-80-1000-0H
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Effective diameter of drive pinion39.79
Working stroke1000
Size80
Stroke reserve0
Toothed-belt pitch5
Mounting positionAny
GuideRecirculating ball bearing guide
DesignElectromechanical linear axis, With toothed belt
Type of motorStepper motor, Servo motor
Functional principle of measuring systemIncremental
Max. acceleration50
Max. speed5
Repetition accuracy±0.08 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Ambient temperature-10, 60
2nd moment of area Iy257180
2nd moment of area Iz913660
Max. drive torque15.92
Max. force Fy2500
Max. force Fz3050
Max. force Fy total axis2500
Max. force Fz total axis3050
Fy at theoretical life value of 100 km (only guide consideration)9200
Fz at theoretical life value of 100 km (only guide consideration)11224
Max. idle running transfer resistance50.3
Max. moment Mx36
Max. moment My228
Max. moment Mz228
Max. moment Mx total axis36
Max. moment My total axis228
Max. moment Mz total axis228
Mx at theoretical life value of 100 km (only guide consideration)132
My at theoretical life value of 100 km (only guide consideration)839
Mz at theoretical life value of 100 km (only guide consideration)839
Distance between slide surface and guide centre50
Max. feed force Fx800
Frictional torque independent of load1
Torsional mass moment of inertia It159250
Mass moment of inertia JH per metre of stroke0.93
Mass moment of inertia JL per kg of working load3.96
Mass moment of inertia JO9.82
Mass moment of inertia JW for additional slide7.61
Feed constant125
Reference service life5000
Weight of slide1900
Weight of additional slide1530
Basic weight for 0 mm stroke4700
Additional weight per 10 mm stroke51
Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Material profileWrought aluminium alloy, anodised
Note on materialsRoHS compliant
Material cover tapeStainless steel strip
Material drive coverWrought aluminium alloy, anodised
Material guide slideStainless steel
Material guide railStainless steel
Material pulleysHigh-alloy stainless steel
Material slideWrought aluminium alloy, anodised
Material toothed belt clamping pieceCast stainless steel
Material toothed beltPolychloroprene or nitrile rubber (NBR) with glass cord and nylon coating
Accessories 232
Genuine accessories that can be used with the Festo ELGA-TB-KF-80-1000-0H motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SIES-8M-PO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-PO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| MUE-70/80 | Profile mounting · Mounting accessories | |
| SIES-8M-NO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SF-EGC-1-80 | Switch lug · Position sensing | |
| SIES-8M-NO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| ZBH-9-B | Centring sleeve · Mounting accessories | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| EMGA-60-P-G3-SST-57 | Gear unit · Gear unit | |
| EMGA-60-P-G5-SST-57 | Gear unit · Gear unit | |
| EMMT-AS-100-S-HS-RS | Servo motor · Motors | |
| EMMT-ST-57-M-RS | Stepper motor · Motors | |
| GASA-MIE-CTR-12M-1 | AX Industrial App · Digital services | |
| GASA-MIE-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIE-CTR-12M-100 | AX Industrial App · Digital services | |
| GASA-MIE-CTR-12M-50 | AX Industrial App · Digital services | |
| EAMM-A-N38-87A | Axial kit · Mounting accessories | |
| SIEN-M8B-PS-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PS-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PO-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PO-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-S-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| NST-5-M5-1 | Slot nut · Mounting accessories | |
| ABP-5 | Slot cover · Mounting accessories | |
| SME-8-K-LED-230 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-O-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-K-24-S6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-ZS-KL-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-K5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| CRSMB-8-32/100 | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| SME-8-K-7,5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMBK-8 | Clip · Mounting accessories | |
| HMIA-E07- - | Support profile · Mounting accessories | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| EMGA-80-P-G3-SST-87 | Gear unit · Mounting accessories | |
| EMGA-80-P-G5-SST-87 | Gear unit · Mounting accessories | |
| SIES-8M-PS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| EMGA-80-P-G3-SAS-100 | Gear unit · Mounting accessories | |
| EMGA-80-P-G5-SAS-100 | Gear unit · Mounting accessories | |
| EAMD-32-32-11-16X20 | Coupling · Mounting accessories | |
| EAMD-42-40-19-16X25 | Coupling · Mounting accessories | |
| EAMB-24-6-15X21-16X20 | Drive shaft adapter · Mounting accessories | |
| SF-EGC-2-80 | Switch lug · Mounting accessories | |
| HWS-EGC-M5 | Sensor bracket · Mounting accessories | |
| HPE-80 | Foot mounting · Cylinder mountings | |
| DHAM-ME-N1-CL | Adapter kit · Mounting accessories | |
| KSK-80- | Connecting shaft · Mounting accessories | |
| ABP-5-S1 | Slot cover · Mounting accessories | |
| DHAM-ME-N1-50-CL | Adapter kit · Mounting accessories | |
| EMMT-AS-80-H-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RS | Servo motor · Electrical accessories | |
| EAMD-42-40-20-16X25 | Coupling · Mounting accessories | |
| EAMF-A-48C-80G | Motor flange · Mounting accessories | |
| EAMK-A-N48-48C | Coupling housing · Mounting accessories | |
| EAMF-A-48C-60G/H | Motor flange · Mounting accessories | |
| EMGA-80-P-G3-EAS-80 | Gear unit · Mounting accessories | |
| EMGA-80-P-G5-EAS-80 | Gear unit · Mounting accessories | |
| EAPM-L5-80-SLM | Switch lug · Mounting accessories | |
| EAHF-L5-80-P | Central support · Cylinder mountings | |
| EMMT-AS-80- | Servo motor · Electrical accessories | |
| EMMT-AS-60- | Servo motor · Electrical accessories | |
| EMMT-AS-100- | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RMB | Servo motor · Electrical accessories | |
| EAMM-A-N48-60PA | Axial kit · Mounting accessories | |
| EAMM-A-N48-70AA | Axial kit · Mounting accessories | |
| EAMM-A-N48-80P | Axial kit · Mounting accessories | |
| EAMM-A-N48-88A | Axial kit · Mounting accessories | |
| EAMM-A-N48-84AA | Axial kit · Mounting accessories | |
| EAMM-A-N48-50GA | Axial kit · Mounting accessories | |
| EAMM-A-N48-56GA | Axial kit · Mounting accessories | |
| EAMM-A-N48-75GA | Axial kit · Mounting accessories | |
| EAMM-A-N48-68GA | Axial kit · Mounting accessories | |
| EAMM-A-N48-72GA | Axial kit · Mounting accessories | |
| EAMM-A-N48-90GB | Axial kit · Mounting accessories | |
| EAMM-A-N48-90GA | Axial kit · Mounting accessories | |
| EAMM-A-N48-120GA | Axial kit · Mounting accessories | |
| EAMM-A-N80-84AA | Axial kit · Mounting accessories | |
| EAMM-A-N80-70GA | Axial kit · Mounting accessories | |
| EAMM-A-N80-75GA | Axial kit · Mounting accessories | |
| EAMM-A-N80-68GA | Axial kit · Mounting accessories | |
| EAMM-A-N80-72GA | Axial kit · Mounting accessories | |
| EAMM-A-N80-90GB | Axial kit · Mounting accessories | |
| EAMM-A-N80-90GA | Axial kit · Mounting accessories | |
| EAMM-A-N80-115GA | Axial kit · Mounting accessories | |
| EAMM-A-N80-120GA | Axial kit · Mounting accessories | |
| EAMM-A-N80-120GB | Axial kit · Mounting accessories | |
| EAMM-A-N80-120GC | Axial kit · Mounting accessories | |
| NEFM-S1G9-K-0,5-R3G8 | Adapter · Electrical accessories | |
| EAMM-A-N48-80PB | Axial kit · Mounting accessories | |
| EMGA-80-P-G8-EAS-80 | Gear unit · Mounting accessories | |
| EMGA-80-P-G12-EAS-80 | Gear unit · Mounting accessories | |
| EMGA-80-P-G20-EAS-80 | Gear unit · Mounting accessories | |
| EMGA-80-P-G8-SAS-100 | Gear unit · Mounting accessories | |
| EMGA-80-P-G12-SAS-100 | Gear unit · Mounting accessories | |
| EMGA-80-P-G20-SAS-100 | Gear unit · Mounting accessories | |
| EMGA-60-P-G8-SST-57 | Gear unit · Mounting accessories | |
| EMGA-60-P-G12-SST-57 | Gear unit · Mounting accessories | |
| EMGA-80-P-G8-SST-87 | Gear unit · Mounting accessories | |
| EMGA-80-P-G12-SST-87 | Gear unit · Mounting accessories | |
| EMMT-AS-60-S-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RMYB | Servo motor · Electrical accessories | |
| EAMM-A-N48-100A-G2 | Axial kit · Mounting accessories | |
| EAMM-A-N48-60H-G2 | Axial kit · Mounting accessories | |
| EAMM-A-N48-87A | Axial kit · Mounting accessories | |
| EAMM-A-N48-40G | Axial kit · Mounting accessories | |
| EAMM-A-N48-60P | Axial kit · Mounting accessories | |
| EAMM-A-N48-60G-G2 | Axial kit · Mounting accessories | |
| EAMM-A-N48-80G-G2 | Axial kit · Mounting accessories | |
| EAMM-A-N48-70GA-G2 | Axial kit · Mounting accessories |
Related Products
View Details
Festo
YXCF-2
MFR #YXCF-2
SKU #YLSL6U6NTXCKHGD
View Details
Festo
YXCF-3
MFR #YXCF-3
SKU #YLSZVSBYGKJ08DU
View Details
Festo
YXCF-4
MFR #YXCF-4
SKU #YLSIOSKDCAW31TC
View Details
Festo
YXCF-1-B
MFR #YXCF-1-B
SKU #YLS8M1FM2JHSBU
View Details
Festo
YXCF-2-B
MFR #YXCF-2-B
SKU #YLSAJENB5OIQWGN
View Details
Festo
YXCL-1-D
MFR #YXCL-1-D
SKU #YLS74NKJF7W65BZ
View Details
Festo
YXCL-2-D
MFR #YXCL-2-D
SKU #YLS1RJGPTBKRKVF
View Details
Festo
YXCL-1
MFR #YXCL-1
SKU #YLSFPVVOW7GENV
View Details
Festo
YXCR-1
MFR #YXCR-1
SKU #YLSW4HQHDBEYOQG
Featured Products
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Related Searches
Festo ELGA-TB-KF-80-1000-0H priceFesto ELGA-TB-KF-80-1000-0H quotebuy Festo ELGA-TB-KF-80-1000-0HELGA-TB-KF-80-1000-0H priceELGA-TB-KF-80-1000-0H stock availabilityFesto spare partsFesto ELGA-TB-KF-80-1000-0H equivalentFesto ELGA-TB-KF-80-1000-0H specifications
