FESTO EMGA-60-P-G3-SST-57

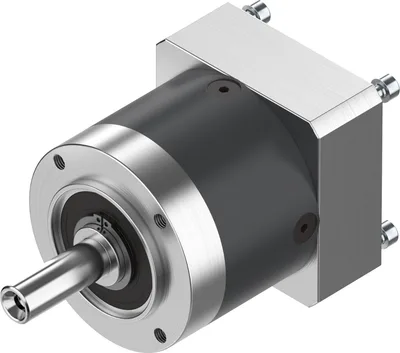

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO EMGA-60-P-G3-SST-57

Gear unit. Planetary gear set, straight, for servo motors EMME-AS, EMMT-AS, EMMT-EC. Planetary gear unit, straight, for stepper motors EMMS-ST. Bevel gear for servo motors EMME-AS, EMMT-AS, EMMS-AS. Life-time lubrication. Degree of protection IP54. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FESTOMFR # EMGA-60-P-G3-SST-57SKU # CEY-937FC781EB0C
Gear unit flange size60
Motor flange size57
Torsional backlash0.17
Type of gear unitPlanetary gear set
Gear unit ratio3:1
Max. drive speed13000
Share
Have questions?Chat on WhatsApp

About This Product

Gear unit. Planetary gear set, straight, for servo motors EMME-AS, EMMT-AS, EMMT-EC. Planetary gear unit, straight, for stepper motors EMMS-ST. Bevel gear for servo motors EMME-AS, EMMT-AS, EMMS-AS. Life-time lubrication. Degree of protection IP54. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FESTO EMGA-60-P-G3-SST-57

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Gear unit flange size60
Motor flange size57
Torsional backlash0.17
Type of gear unitPlanetary gear set
Gear unit ratio3:1
Max. drive speed13000
Operating temperature of gear unit-25, 90
LABS (PWIS) conformityVDMA24364-B2-L
Degree of protectionIP54
Continuous output torque22
Mass moment of inertia of gear unit0.135
Max. output torque35.2
Max. efficiency98
Torsional rigidity2.3
Product weight900
Permissible axial shaft load500
Permissible radial shaft load400
Gear unit interface, output shaft60G
Gear unit interface, drive shaft57A
Note on materialsRoHS compliant

Accessories 49

Genuine accessories that can be used with the FESTO EMGA-60-P-G3-SST-57 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
EAMM-A-S60-60GAxial kit · Mounting accessories
EAMM-A-D60-60G-G3Axial kit · Mounting accessories
EAMM-A-D60-60G-S1-G3Axial kit · Mounting accessories
EAMM-U-86-S60-60G-177Parallel kit · Mounting accessories
EAMM-A-D40-60GAxial kit · Mounting accessories
EAMF-A-48A-60G/HMotor flange · Mounting accessories
EAHM-L2-M5-40Screw kit · Mounting accessories
EAMM-A-L27-60GAxial kit · Mounting accessories
EAMM-A-L62-60HAxial kit · Mounting accessories
EAMM-A-M48-60GAxial kit · Mounting accessories
EAMM-A-L38-60H-G2Axial kit · Mounting accessories
EAMM-A-N38-60H-G2Axial kit · Mounting accessories
EAMM-A-S48-60H-G3Axial kit · Mounting accessories
EAMM-U-86-S48-60G-177Parallel kit · Mounting accessories
EAMM-A-M43-60GAxial kit · Mounting accessories
EAMM-U-110-D60-60G-120-S1Parallel kit · Mounting accessories
EAMM-U-86-D60-60G-102-S1Parallel kit · Mounting accessories
EAMM-U-110-D60-60G-120Parallel kit · Mounting accessories
EAMM-U-86-D60-60G-102Parallel kit · Mounting accessories
EAMM-U-86-D40-60G-102-S1Parallel kit · Mounting accessories
EAMM-U-86-D40-60G-102Parallel kit · Mounting accessories
EAMM-U-86-S48-60G-102Parallel kit · Mounting accessories
EAMM-U-86-S62-60G-177Parallel kit · Mounting accessories
EAMM-A-D40-60H-S1Axial kit · Mounting accessories
EAMM-A-D40-60G-S1Axial kit · Mounting accessories
EAMM-A-D60-60G-G2Axial kit · Mounting accessories
EAMM-A-D60-60G-S1Axial kit · Mounting accessories
EAMM-A-S62-60G-G2Axial kit · Mounting accessories
EAMM-A-R38-60GAxial kit · Mounting accessories
EAMM-A-R48-60GAxial kit · Mounting accessories
EADS-F-57ASeal-SET · General accessories
EAMM-U-70-D32-60G-96Parallel kit · Mounting accessories
EAMM-U-70-D32-60G-96-S1Parallel kit · Mounting accessories
EAMM-U-70-D40-60G-96Parallel kit · Mounting accessories
EAMM-U-70-D40-60G-96-S1Parallel kit · Mounting accessories
EAMM-U-110-D50-60G-120Parallel kit · Mounting accessories
EAMM-U-110-D50-60G-120-S1Parallel kit · Mounting accessories
EAMM-U-70-S48-60G-96Parallel kit · Mounting accessories
EAMM-U-86-D50-60G-102Parallel kit · Mounting accessories
EAMM-U-86-D50-60G-102-S1Parallel kit · Mounting accessories
EAMM-A-D32-60GAxial kit · Mounting accessories
EAMM-A-D32-60G-S1Axial kit · Mounting accessories
EAMM-A-L48-60G-G2Axial kit · Mounting accessories
EAMM-A-L38-60G-G2Axial kit · Mounting accessories
EAMM-A-N38-60G-G2Axial kit · Mounting accessories
EAMM-A-N48-60G-G2Axial kit · Mounting accessories
EAMM-A-S48-60G-G3Axial kit · Mounting accessories
EAMM-A-D50-60G-S1-G2Axial kit · Mounting accessories
EAMM-A-D50-60G-G2Axial kit · Mounting accessories
