How can I get a price quote for Festo EMMT-AS-80-M-HS-RMYB?

You can request a fast quote for Festo EMMT-AS-80-M-HS-RMYB from Yılsa Engineering. Reference part number YLS78ZBUBGGHNP. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EMMT-AS-80-M-HS-RMYB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EMMT-AS-80-M-HS-RMYB genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EMMT-AS-80-M-HS-RMYB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

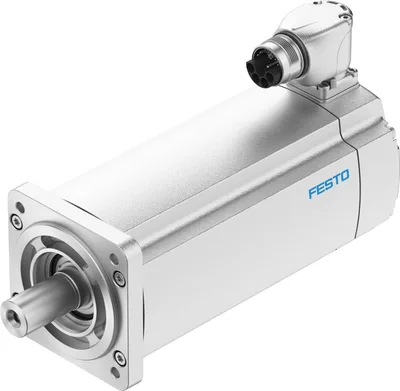

Festo EMMT-AS-80-M-HS-RMYB

Servo motor. Technology series for demanding positioning tasks. A selection of 6 motor sizes in up to 4 lengths. Brushless, permanently magnetized synchronous servo motor. Digital absolute displacement encoder, single turn or multi-turn. Reliable, highly dynamic, extremely precise. Extremely low cogging torque – supports high synchronisation even at low rotational speeds. One motor connection (OCP: one cable plug) - one connecting cable for supply and encoder, with rotatable plug. Degree of protection IP67 (for motor housing and connection technology) and up to IP65 (on the motor shaft with shaft seal). Optionally with holding brake. Optionally with absolute safety encoder, multi-turn. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMT-AS-80-M-HS-RMYBSKU # YLS78ZBUBGGHNP

Ambient temperature-40, 40

Max. installation height4000

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Have questions?Chat on WhatsApp

About This Product

Festo EMMT-AS-80-M-HS-RMYB

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-40, 40

Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius

Max. installation height4000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Max. winding temperature155

Rating class as per EN 60034-1S1

Temperature monitoringDigital motor temperature transmission via EnDat® 2.2

Motor type to EN 60034-7IM V1, IM V3

Mounting positionAny

Degree of protectionIP40

Note on degree of protectionIP67 for motor housing including connection components

Concentricity, coaxiality, axial runout to DIN SPEC 42955N

Balance qualityG 2.5

Detent torque<1.0% of peak torque

Bearing lifetime under nominal conditions20000

Interface code, motor out80P

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemM23x1

Electrical connection 1, number of connections/cores15

Electrical connection 1, connection pattern00995913

Pollution degree2

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

ApprovalRCM, German Technical Control Board (TÜV), c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Certificate issuing authorityTÜV 968/INS 464.00/24, UL E342973

Nominal operating voltage DC680

Type of winding switchStar inside

Number of pole pairs5

Standstill torque2.6

Nominal torque2.2

Peak torque6.4

Nominal rotary speed3000

Max. rotational speed6800

Max. mechanical speed14000

Angular acceleration100000

Nominal power rating of motor690

Continuous stall current2.6

Nominal motor current2.2

Peak current9

Motor constant1

Standstill torque constant1.17

Voltage constant, phase-to-phase70.7

Phase-phase winding resistance7.43

Phase-phase winding inductance31.8

Winding longitudinal inductivity Ld (phase)19.4

Winding cross inductivity Lq (phase)23.8

Electric time constant6.4

Thermal time constant45

Thermal resistance0.78

Measuring flange250 x 250 x 15 mm, steel

Total mass moment of inertia of output1.285

Product weight3360

Permissible axial shaft load120

Permissible radial shaft load620

Rotor position sensorAbsolute multi-turn safety encoder

rotor position sensor, manufacturer designationEQI 1131

rotor position sensor, absolute detectable revolutions4096

Rotor position encoder interfaceEnDat 22

Rotor position sensor, encoder measuring principleInductive

rotor position sensor, DC operating voltage5

rotor position sensor, DC operating voltage range3.6, 14

rotor position sensor, position values per revolution524288

Rotor position transducer resolution19

rotor position sensor, system accuracy of angle measurement-120, 120

Brake holding torque4.5

Operating voltage DC for brake24

Brake current consumption0.5

Power consumption, brake12

Brake coil resistance48

Brake coil inductivity1000

Brake separation time55

Brake closing time15

DC brake response delay3

Max. brake no-load speed10000

Max. friction per braking process8200

Number of emergency stops per hour1

Total brake friction580

Mass moment of inertia of brake0.249

Switching cycles holding brake10 million idle actuations (without friction work!)

Safety deviceSafety device

Maximum SILSafety integrity level 3, See user documentation

Safety sub-functions up to SIL2Reliable recording and transmission of single-turn position data

Safety sub-functions up to SIL3Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive

Maximum PL and categoryPerformance Level e, category 3, See user documentation

Safety sub-function up to PL d, Cat. 3Reliable recording and transmission of single-turn position data

Safety sub-function up to PL e, Cat. 3Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive

PFHd, subcomponent15 x 10E-9, encoder

Duration of use Tm, subcomponent20 years, rotor position encoder

Energy efficiencyENEFF (CN) / Class 2

Accessories 84

Genuine accessories that can be used with the Festo EMMT-AS-80-M-HS-RMYB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAMM-U-87-T42-80P-114	Parallel kit · Mounting accessories
EAMM-U-87-T42-80P-147	Parallel kit · Mounting accessories
EAMM-A-S60-80P	Axial kit · Mounting accessories
EAMM-U-86-D60-80P-102	Parallel kit · Mounting accessories
EAMM-U-86-S60-80P-177	Parallel kit · Mounting accessories
EAMM-U-86-D60-80P-102-G2	Parallel kit · Mounting accessories
EAMM-A-N48-80P	Axial kit · Mounting accessories
EAMM-U-86-D60-80P-102-S1-G2	Parallel kit · Mounting accessories
EAMM-U-86-D40-80P-102	Parallel kit · Mounting accessories
EAMM-U-86-D40-80P-102-S1	Parallel kit · Mounting accessories
EAMM-U-86-D50-80P-102	Parallel kit · Mounting accessories
EAMM-U-86-D50-80P-102-S1	Parallel kit · Mounting accessories
EAMM-U-86-S62-80P-177	Parallel kit · Mounting accessories
EAMM-U-86-D60-80P-102-S1	Parallel kit · Mounting accessories
EAMM-A-D60-80P	Axial kit · Mounting accessories
EAMM-A-M48-80G	Axial kit · Mounting accessories
EAMM-A-M80-80G	Axial kit · Mounting accessories
EAMM-A-L48-80G-G2	Axial kit · Mounting accessories
EAMM-A-L62-80G-G2	Axial kit · Mounting accessories
EAMM-A-N48-80G-G2	Axial kit · Mounting accessories
EAMM-A-N80-80G-G2	Axial kit · Mounting accessories
EAMM-A-S95-80G	Axial kit · Mounting accessories
EAMM-A-S62-80G-G3	Axial kit · Mounting accessories
EAMM-A-D60-80G-G2	Axial kit · Mounting accessories
EAMM-A-D60-80G-S1-G2	Axial kit · Mounting accessories
EAMM-A-S60-80G	Axial kit · Mounting accessories
EAMM-A-D60-80P-G2	Axial kit · Mounting accessories
EAMM-A-D60-80P-S1-G2	Axial kit · Mounting accessories
EAMM-A-D50-80G	Axial kit · Mounting accessories
EAMM-A-D50-80G-S1	Axial kit · Mounting accessories
EAMM-A-D80-80G	Axial kit · Mounting accessories
EAMM-A-D80-80G-S1	Axial kit · Mounting accessories
EAMM-A-D60-80P-S1	Axial kit · Mounting accessories
EAMM-A-S62-80P-G2	Axial kit · Mounting accessories
EAMM-A-L95-80G-G2	Axial kit · Mounting accessories
EAMM-A-T46-80P	Axial kit · Mounting accessories
EAMD-56-46-20-23X27	Coupling · Mounting accessories
EAMK-A-L62-62A	Coupling housing · Mounting accessories
EAMF-A-62A-80G	Motor flange · Mounting accessories
EAHM-L2-M6-65-L	Screw kit · Mounting accessories
EAMM-A-R48-80P	Axial kit · Mounting accessories
EMGA-80-P-G3-EAS-80	Gear unit · Mounting accessories
EMGA-80-P-G5-EAS-80	Gear unit · Mounting accessories
EAMM-A-T42-80P	Axial kit · Mounting accessories
EAMM-U-87-T46-80P-114	Parallel kit · Mounting accessories
NEBM-M23G15-EH- -Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH- -Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH- -Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q10N-R3LEG14	Motor cable · Electrical accessories
EASS-RS-T-A-4P-20-40-B7	Radial shaft seal · General accessories
EAMM-U-87-T46-80P-147	Parallel kit · Mounting accessories
EMGA-80-P-G8-EAS-80	Gear unit · Mounting accessories
EMGA-80-P-G12-EAS-80	Gear unit · Mounting accessories
EMGA-80-P-G20-EAS-80	Gear unit · Mounting accessories
EADS-F-D80-150A	Seal SET · General accessories
EAMM-A-L48-80P-G2	Axial kit · Mounting accessories
EAMM-A-X48-80P	Axial kit · Mounting accessories
NEBM-M23/40	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q7N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q7N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q7N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q9N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q9N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q9N-S1LEG21	Motor cable · Electrical accessories
EAMM-A-S48-80P	Axial kit · Mounting accessories
EAMM-A-D50-80P-G2	Axial kit · Mounting accessories
EAMM-A-D50-80P-S1-G2	Axial kit · Mounting accessories
