How can I get a price quote for Festo EMMT-AS-60-M-HS-RS?

You can request a fast quote for Festo EMMT-AS-60-M-HS-RS from Yılsa Engineering. Reference part number YLSIKN1OERCOSAR. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EMMT-AS-60-M-HS-RS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EMMT-AS-60-M-HS-RS genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EMMT-AS-60-M-HS-RS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

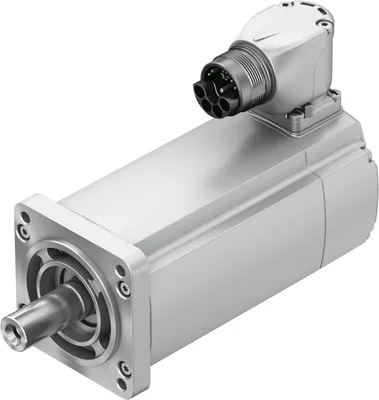

Festo EMMT-AS-60-M-HS-RS

Servo motor. Technology series for demanding positioning tasks. A selection of 6 motor sizes in up to 4 lengths. Brushless, permanently magnetized synchronous servo motor. Digital absolute displacement encoder, single turn or multi-turn. Reliable, highly dynamic, extremely precise. Extremely low cogging torque – supports high synchronisation even at low rotational speeds. One motor connection (OCP: one cable plug) - one connecting cable for supply and encoder, with rotatable plug. Degree of protection IP67 (for motor housing and connection technology) and up to IP65 (on the motor shaft with shaft seal). Optionally with holding brake. Optionally with absolute safety encoder, multi-turn. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMT-AS-60-M-HS-RSSKU # YLSIKN1OERCOSAR

Ambient temperature-40, 40

Max. installation height4000

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Have questions?Chat on WhatsApp

About This Product

Festo EMMT-AS-60-M-HS-RS

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-40, 40

Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius

Max. installation height4000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Max. winding temperature155

Rating class as per EN 60034-1S1

Temperature monitoringDigital motor temperature transmission via EnDat® 2.2

Motor type to EN 60034-7IM V1, IM V3

Mounting positionAny

Degree of protectionIP40

Note on degree of protectionIP67 for motor housing including connection components

Concentricity, coaxiality, axial runout to DIN SPEC 42955N

Balance qualityG 2.5

Detent torque<1.0% of peak torque

Bearing lifetime under nominal conditions20000

Interface code, motor out60P

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemM23x1

Electrical connection 1, number of connections/cores15

Electrical connection 1, connection pattern00995913

Pollution degree2

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Certificate issuing authorityUL E342973

Nominal operating voltage DC680

Type of winding switchStar inside

Number of pole pairs5

Standstill torque1.24

Nominal torque1.1

Peak torque3.4

Nominal rotary speed3000

Max. rotational speed14200

Max. mechanical speed16000

Angular acceleration100000

Nominal power rating of motor350

Continuous stall current2.7

Nominal motor current2.4

Peak current11

Motor constant0.45

Standstill torque constant0.53

Voltage constant, phase-to-phase32

Phase-phase winding resistance4.85

Phase-phase winding inductance20

Winding longitudinal inductivity Ld (phase)8

Winding cross inductivity Lq (phase)10

Electric time constant2.7

Thermal time constant41

Thermal resistance1.1

Measuring flange250 x 250 x 15 mm, steel

Total mass moment of inertia of output0.286

Product weight1530

Permissible axial shaft load70

Permissible radial shaft load350

Rotor position sensorAbsolute encoder, single turn

rotor position sensor, manufacturer designationECI 1118

rotor position sensor, absolute detectable revolutions1

Rotor position encoder interfaceEnDat 22

Rotor position sensor, encoder measuring principleInductive

rotor position sensor, DC operating voltage5

rotor position sensor, DC operating voltage range3.6, 14

rotor position sensor, position values per revolution262144

Rotor position transducer resolution18

rotor position sensor, system accuracy of angle measurement-120, 120

Mean time to failure (MTTF), subcomponent190 years, rotor position encoder

Accessories 85

Genuine accessories that can be used with the Festo EMMT-AS-60-M-HS-RS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBM-M23G15-EH-5-Q7N-R3LEG14	Motor cable · Connecting cables
NEBM-M23G15-EH-7.5-Q7N-R3LEG14	Motor cable · Connecting cables
NEBM-M23G15-EH-10-Q7N-R3LEG14	Motor cable · Connecting cables
EMGA-60-P-G3-EAS-60	Gear unit · Gear unit
EMGA-60-P-G5-EAS-60	Gear unit · Gear unit
NEBM-M23G15-EH-5-Q7N-S1LEG21	Motor cable · Connecting cables
NEBM-M23G15-EH-7.5-Q7N-S1LEG21	Motor cable · Connecting cables
NEBM-M23G15-EH-10-Q7N-S1LEG21	Motor cable · Connecting cables
EAMM-U-86-D60-60P-102	Parallel kit · Mounting accessories
EAMM-U-86-S48-60P-177	Parallel kit · Mounting accessories
EAMM-U-60-D32-60P-91	Parallel kit · Mounting accessories
EAMM-A-D32-60P-G2	Axial kit · Mounting accessories
EAMM-U-70-D40-60P-96-S1	Parallel kit · Mounting accessories
EAMM-U-70-D40-60P-96	Parallel kit · Mounting accessories
EAMM-U-70-D32-60P-96	Parallel kit · Mounting accessories
EAMM-U-70-D32-60P-96-S1	Parallel kit · Mounting accessories
EAMM-A-D32-60H	Axial kit · Mounting accessories
EAMM-A-D32-60H-S1	Axial kit · Mounting accessories
EAMM-A-V32-60P	Axial kit · Mounting accessories
EAMM-A-D40-60H	Axial kit · Mounting accessories
EAMM-A-D60-60H	Axial kit · Mounting accessories
EAMM-A-M43-60H	Axial kit · Mounting accessories
EAMM-A-M48-60H	Axial kit · Mounting accessories
EAMM-A-S62-60H-G2	Axial kit · Mounting accessories
EAMM-A-L62-60H	Axial kit · Mounting accessories
EAMM-A-N48-60PA	Axial kit · Mounting accessories
EAMM-A-N38-60H-G2	Axial kit · Mounting accessories
EAMM-A-N48-60H-G2	Axial kit · Mounting accessories
EAMM-A-L48-60H-G2	Axial kit · Mounting accessories
EAMM-A-L38-60H-G2	Axial kit · Mounting accessories
EAMM-A-S48-60H-G3	Axial kit · Mounting accessories
EAMM-A-D50-60H-S1-G2	Axial kit · Mounting accessories
EAMM-A-D50-60H-G2	Axial kit · Mounting accessories
EAMM-A-D60-60H-G3	Axial kit · Mounting accessories
EAMM-A-D60-60H-S1-G3	Axial kit · Mounting accessories
EAMM-A-S60-60H	Axial kit · Mounting accessories
EAMM-U-86-S60-60H-177	Parallel kit · Mounting accessories
EAMM-A-D40-60H-S1	Axial kit · Mounting accessories
EAMM-A-D60-60H-S1	Axial kit · Mounting accessories
EAMM-A-R38-40G	Axial kit · Mounting accessories
EAMM-A-R38-60H	Axial kit · Mounting accessories
EAMM-A-R48-60H	Axial kit · Mounting accessories
EAMM-U-86-D40-60H-102	Parallel kit · Mounting accessories
EAMM-A-P8-38A-60P	Axial kit · Mounting accessories
EAMM-A-R38-60P	Axial kit · Mounting accessories
EAMM-A-T42-60P	Axial kit · Mounting accessories
EAMM-U-87-T46-60P-114	Parallel kit · Mounting accessories
EAMM-A-T46-60P	Axial kit · Mounting accessories
NEBM-M23G15-EH- -Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH- -Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH- -Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q10N-R3LEG14	Motor cable · Electrical accessories
EASS-RS-T-A-4P-15-30-B7	Radial shaft seal · General accessories
EAMM-U-87-T46-60P-147	Parallel kit · Mounting accessories
EMGA-60-P-G8-EAS-60	Gear unit · Mounting accessories
EMGA-60-P-G12-EAS-60	Gear unit · Mounting accessories
EMGA-60-P-G20-EAS-60	Gear unit · Mounting accessories
EAMM-U-60-D40-60P-61	Parallel kit · Mounting accessories
EAMM-A-N38-60P	Axial kit · Mounting accessories
NEBM-M23/40	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q9N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q9N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q9N-S1LEG21	Motor cable · Electrical accessories
EAMM-A-L48-60P	Axial kit · Mounting accessories
EAMM-A-L38-60P-G2	Axial kit · Mounting accessories
EAMM-A-N48-60P	Axial kit · Mounting accessories
EAMM-A-S38-60P-G3	Axial kit · Mounting accessories
EAMM-A-S48-60P-G3	Axial kit · Mounting accessories
EAMM-A-D40-60P-G2	Axial kit · Mounting accessories
EAMM-A-D32-60P-S1-G2	Axial kit · Mounting accessories
EAMM-A-D40-60P-S1-G2	Axial kit · Mounting accessories
