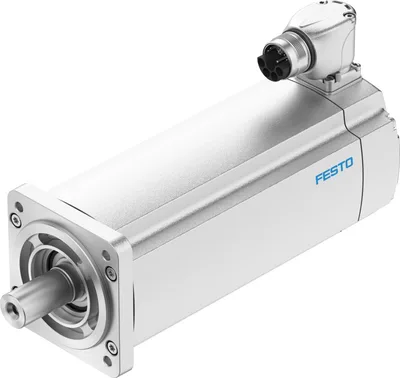

Festo EMMT-AS-80-L-HS-RMYB

Servo motor. Technology series for demanding positioning tasks. A selection of 6 motor sizes in up to 4 lengths. Brushless, permanently magnetized synchronous servo motor. Digital absolute displacement encoder, single turn or multi-turn. Reliable, highly dynamic, extremely precise. Extremely low cogging torque – supports high synchronisation even at low rotational speeds. One motor connection (OCP: one cable plug) - one connecting cable for supply and encoder, with rotatable plug. Degree of protection IP67 (for motor housing and connection technology) and up to IP65 (on the motor shaft with shaft seal). Optionally with holding brake. Optionally with absolute safety encoder, multi-turn. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMT-AS-80-L-HS-RMYBSKU # YLSA68AKRCEKUB

Ambient temperature-40, 40

Max. installation height4000

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Have questions?Chat on WhatsApp

About This Product

Festo EMMT-AS-80-L-HS-RMYB

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-40, 40

Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius

Max. installation height4000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Max. winding temperature155

Rating class as per EN 60034-1S1

Temperature monitoringDigital motor temperature transmission via EnDat® 2.2

Motor type to EN 60034-7IM V1, IM V3

Mounting positionAny

Degree of protectionIP40

Note on degree of protectionIP67 for motor housing including connection components

Concentricity, coaxiality, axial runout to DIN SPEC 42955N

Balance qualityG 2.5

Detent torque<1.0% of peak torque

Bearing lifetime under nominal conditions20000

Interface code, motor out80P

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemM23x1

Electrical connection 1, number of connections/cores15

Electrical connection 1, connection pattern00995913

Pollution degree2

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

ApprovalRCM, German Technical Control Board (TÜV), c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Certificate issuing authorityTÜV 968/INS 464.00/24, UL E342973

Nominal operating voltage DC680

Type of winding switchStar inside

Number of pole pairs5

Standstill torque3.5

Nominal torque2.9

Peak torque9.9

Nominal rotary speed3000

Max. rotational speed8540

Max. mechanical speed14000

Angular acceleration100000

Nominal power rating of motor910

Continuous stall current4.3

Nominal motor current3.5

Peak current17.5

Motor constant0.82

Standstill torque constant0.93

Voltage constant, phase-to-phase56

Phase-phase winding resistance2.69

Phase-phase winding inductance12.6

Winding longitudinal inductivity Ld (phase)7.5

Winding cross inductivity Lq (phase)9.45

Electric time constant7

Thermal time constant48

Thermal resistance0.68

Measuring flange250 x 250 x 15 mm, steel

Total mass moment of inertia of output1.993

Product weight4120

Permissible axial shaft load120

Permissible radial shaft load620

Rotor position sensorAbsolute multi-turn safety encoder

rotor position sensor, manufacturer designationEQI 1131

rotor position sensor, absolute detectable revolutions4096

Rotor position encoder interfaceEnDat 22

Rotor position sensor, encoder measuring principleInductive

rotor position sensor, DC operating voltage5

rotor position sensor, DC operating voltage range3.6, 14

rotor position sensor, position values per revolution524288

Rotor position transducer resolution19

rotor position sensor, system accuracy of angle measurement-120, 120

Brake holding torque7

Operating voltage DC for brake24

Brake current consumption0.63

Power consumption, brake15

Brake coil resistance38.4

Brake coil inductivity900

Brake separation time45

Brake closing time30

DC brake response delay4

Max. brake no-load speed10000

Max. friction per braking process12000

Number of emergency stops per hour1

Total brake friction2400

Mass moment of inertia of brake0.459

Switching cycles holding brake10 million idle actuations (without friction work!)

Safety deviceSafety device

Maximum SILSafety integrity level 3, See user documentation

Safety sub-functions up to SIL2Reliable recording and transmission of single-turn position data

Safety sub-functions up to SIL3Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive

Maximum PL and categoryPerformance Level e, category 3, See user documentation

Safety sub-function up to PL d, Cat. 3Reliable recording and transmission of single-turn position data

Safety sub-function up to PL e, Cat. 3Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive

PFHd, subcomponent15 x 10E-9, encoder

Duration of use Tm, subcomponent20 years, rotor position encoder

Energy efficiencyENEFF (CN) / Class 2

Accessories 84

Genuine accessories that can be used with the Festo EMMT-AS-80-L-HS-RMYB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAMM-U-87-T42-80P-114	Parallel kit · Mounting accessories
EAMM-U-87-T42-80P-147	Parallel kit · Mounting accessories
EAMM-A-S60-80P	Axial kit · Mounting accessories
EAMM-U-86-D60-80P-102	Parallel kit · Mounting accessories
EAMM-U-86-S60-80P-177	Parallel kit · Mounting accessories
EAMM-U-86-D60-80P-102-G2	Parallel kit · Mounting accessories
EAMM-A-N48-80P	Axial kit · Mounting accessories
EAMM-U-86-D60-80P-102-S1-G2	Parallel kit · Mounting accessories
EAMM-U-86-D40-80P-102	Parallel kit · Mounting accessories
EAMM-U-86-D40-80P-102-S1	Parallel kit · Mounting accessories
EAMM-U-86-D50-80P-102	Parallel kit · Mounting accessories
EAMM-U-86-D50-80P-102-S1	Parallel kit · Mounting accessories
EAMM-U-86-S62-80P-177	Parallel kit · Mounting accessories
EAMM-U-86-D60-80P-102-S1	Parallel kit · Mounting accessories
EAMM-A-D60-80P	Axial kit · Mounting accessories
EAMM-A-M48-80G	Axial kit · Mounting accessories
EAMM-A-M80-80G	Axial kit · Mounting accessories
EAMM-A-L48-80G-G2	Axial kit · Mounting accessories
EAMM-A-L62-80G-G2	Axial kit · Mounting accessories
EAMM-A-N48-80G-G2	Axial kit · Mounting accessories
EAMM-A-N80-80G-G2	Axial kit · Mounting accessories
EAMM-A-S95-80G	Axial kit · Mounting accessories
EAMM-A-S62-80G-G3	Axial kit · Mounting accessories
EAMM-A-D60-80G-G2	Axial kit · Mounting accessories
EAMM-A-D60-80G-S1-G2	Axial kit · Mounting accessories
EAMM-A-S60-80G	Axial kit · Mounting accessories
EAMM-A-D60-80P-G2	Axial kit · Mounting accessories
EAMM-A-D60-80P-S1-G2	Axial kit · Mounting accessories
EAMM-A-D50-80G	Axial kit · Mounting accessories
EAMM-A-D50-80G-S1	Axial kit · Mounting accessories
EAMM-A-D80-80G	Axial kit · Mounting accessories
EAMM-A-D80-80G-S1	Axial kit · Mounting accessories
EAMM-A-D60-80P-S1	Axial kit · Mounting accessories
EAMM-A-S62-80P-G2	Axial kit · Mounting accessories
EAMM-A-L95-80G-G2	Axial kit · Mounting accessories
EAMM-A-T46-80P	Axial kit · Mounting accessories
EAMD-56-46-20-23X27	Coupling · Mounting accessories
EAMK-A-L62-62A	Coupling housing · Mounting accessories
EAMF-A-62A-80G	Motor flange · Mounting accessories
EAHM-L2-M6-65-L	Screw kit · Mounting accessories
EAMM-A-R48-80P	Axial kit · Mounting accessories
EMGA-80-P-G3-EAS-80	Gear unit · Mounting accessories
EMGA-80-P-G5-EAS-80	Gear unit · Mounting accessories
EAMM-A-T42-80P	Axial kit · Mounting accessories
EAMM-U-87-T46-80P-114	Parallel kit · Mounting accessories
NEBM-M23G15-EH- -Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH- -Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH- -Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q10N-R3LEG14	Motor cable · Electrical accessories
EASS-RS-T-A-4P-20-40-B7	Radial shaft seal · General accessories
EAMM-U-87-T46-80P-147	Parallel kit · Mounting accessories
EMGA-80-P-G8-EAS-80	Gear unit · Mounting accessories
EMGA-80-P-G12-EAS-80	Gear unit · Mounting accessories
EMGA-80-P-G20-EAS-80	Gear unit · Mounting accessories
EADS-F-D80-150A	Seal SET · General accessories
EAMM-A-L48-80P-G2	Axial kit · Mounting accessories
EAMM-A-X48-80P	Axial kit · Mounting accessories
NEBM-M23/40	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q7N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q7N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q7N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q9N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q9N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q9N-S1LEG21	Motor cable · Electrical accessories
EAMM-A-S48-80P	Axial kit · Mounting accessories
EAMM-A-D50-80P-G2	Axial kit · Mounting accessories
EAMM-A-D50-80P-S1-G2	Axial kit · Mounting accessories
