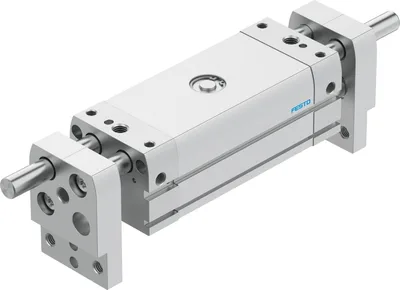

Festo DHPL-32-160-P-A

Parallel gripper. High torque resistance due to guided gripper jaw. Compact and sturdy design. Ideal for gripping larger parts. Double-acting piston drive. Suitable for external and internal gripping. Mounting: direct fastening via thread, with through-hole. For position sensing with proximity sensor for T-slot and for C-slot. Sustainable in production thanks to reduced use of materials

FestoMFR # DHPL-32-160-P-ASKU # YLSXFXK1PDDW8XG

Size32

Total stroke160

Stroke per gripper jaws80

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.12

Max. gripper jaw backlash Sz0.066

Have questions?Chat on WhatsApp

About This Product

Festo DHPL-32-160-P-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size32

Total stroke160

Stroke per gripper jaws80

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.12

Max. gripper jaw backlash Sz0.066

Rotationally symmetrical0.2

Repetition accuracy, gripper0.03

Number of gripper jaws2

Mounting positionAny

Mode of operationDouble-acting

CushioningElastic cushioning rings/plates at both ends

Gripper functionParallel

DesignRack and pinion

GuidePlain-bearing guide

Position detectionVia proximity switch

Symbol00991894

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Operating pressure21.75, 116

Max. operating frequency of gripper0.6

Min. opening time at 0.6 MPa (6 bar, 87 psi)272

Min. closing time at 0.6 MPa (6 bar, 87 psi)473

Max. mass per external gripper finger498

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Degree of protectionIP54

Ambient temperature-10, 60

Total gripping force, opening, 0.6MPa (6bar, 87 psi)800

Total gripping force, closing, 0.6MPa (6bar, 87 psi)600

Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi)400

Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)300

Mass moment of inertia315.8, 727

Max. force on gripper jaw Fz static750

Max. torque at gripper Mx static18

Max. torque at gripper My static18

Max. torque at gripper Mz static18

Maintenance intervalLifetime lubrication

Product weight4154

Type of mountingEither:, Direct mounting via thread, With through-hole

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material cover capWrought aluminium alloy, anodised

Material coverAnodised wrought aluminium alloy

Material end plateAnodised wrought aluminium alloy

Material housingAnodised wrought aluminium alloy

Material gripper jawsAnodised wrought aluminium alloy

Material piston sealTPE-U(PU)

Material piston rodHigh-alloy stainless steel

Material o-ringNBR

Material screwsGalvanised steel

Gear rack materialHigh-alloy stainless steel

Gear wheel materialSintered bronze

Accessories 66

Genuine accessories that can be used with the Festo DHPL-32-160-P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LE-T-G18-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q4	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-P50	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8-F1A	One-way flow control valve · Function fittings
QS-G1/8-6	Push-in fitting · Fittings
QSL-G1/8-6	Push-in L-fitting · Fittings
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SME-10M	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-10,0-OE-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M12-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDAT-MHS-M50-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M80-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M100-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M125-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M160-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3	Connecting cable · Connecting cables
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
