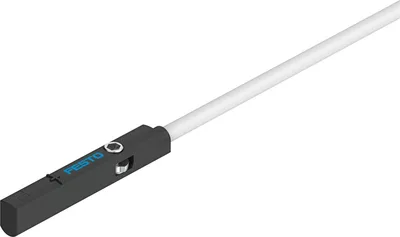

FESTO SME-10M-DS-24V-E-0,3-L-M8D

Proximity sensor. Measuring principle: magnetic reed. Individually configurable or pre-assembled. Inserted in the slot from above, flush with the cylinder profile. LED switching status indication. Cable length 0.3, 2.5 m

FESTOMFR # SME-10M-DS-24V-E-0,3-L-M8DSKU # CEY-937FC78204BA

DesignFor C-slot

Conforms to standardEN 60947-5-2

Symbol00991619

ApprovalRCM

Special characteristicsOil-resistant

Note on materialsRoHS compliant, Free of halogen

Have questions?Chat on WhatsApp

About This Product

FESTO SME-10M-DS-24V-E-0,3-L-M8D

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor C-slot

Conforms to standardEN 60947-5-2

Symbol00991619

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Special characteristicsOil-resistant

Note on materialsRoHS compliant, Free of halogen

Measured variablePosition

Measuring principleMagnetic reed

Ambient temperature-40, 70

Repetition accuracy0.2

Switching outputContacting, bipolar

Switching element functionN/O contact

Switch-on time1.2

Switch-off time1

Max. switching frequency50

Max. output current300

Max. output current using mounting kits50

Max. switching capacity AC9

Max. switching capacity DC9

Max. switching capacity DC using mounting kits1.5

Max. switching capacity AC using mounting kits1.5

Voltage drop1.5

Short circuit current ratingNo

Overload protectionNo

Rated operational voltage DC24

Operational voltage range AC5, 30

Operational voltage range DC5, 30

Reverse polarity protectionNo

Electrical connection 1, connection typeCable with plug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingRotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00991155

Connection outlet orientationIn-line

Test conditions cableBending strength: to Festo standard, Test conditions on request, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm

Cable length0.3

Cable characteristicSuitable for energy chains/robot applications

Material cable sheathTPE-U(PUR)

Type of mountingScrew-clamped, Insertable in the slot from above

Max. tightening torque0.4

Mounting positionAny

Product weight6.7

Material housingHigh-alloy stainless steel

Switching status indicationYellow LED

Ambient temperature with moving cable-20, 70

Degree of protectionIP65, IP68

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 14

Genuine accessories that can be used with the FESTO SME-10M-DS-24V-E-0,3-L-M8D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBK-10	Clip · Mounting accessories
SMM-10	Positioning element · Mounting accessories
NEDY-L2R1-V1-M8G3-U-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-M12G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEDY-L2R1-V1-M8G3-U-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-M8G4-5R	Distributor · Electrical accessories
NEDY-	Distributor · Electrical accessories
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEAU-LH-1	Inscription label holder · General accessories
