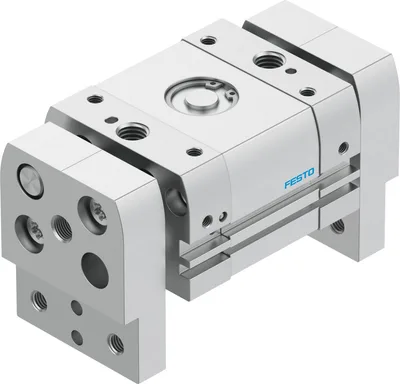

Festo DHPL-25-50-P-A
Parallel gripper. High torque resistance due to guided gripper jaw. Compact and sturdy design. Ideal for gripping larger parts. Double-acting piston drive. Suitable for external and internal gripping. Mounting: direct fastening via thread, with through-hole. For position sensing with proximity sensor for T-slot and for C-slot. Sustainable in production thanks to reduced use of materials
Size25
Total stroke50
Stroke per gripper jaws25
Max. replacement accuracy0.2
Max. angular gripper jaw backlash ax, ay0.13
Max. gripper jaw backlash Sz0.064
About This Product
Parallel gripper. High torque resistance due to guided gripper jaw. Compact and sturdy design. Ideal for gripping larger parts. Double-acting piston drive. Suitable for external and internal gripping. Mounting: direct fastening via thread, with through-hole. For position sensing with proximity sensor for T-slot and for C-slot. Sustainable in production thanks to reduced use of materials
Festo DHPL-25-50-P-A
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size25
Total stroke50
Stroke per gripper jaws25
Max. replacement accuracy0.2
Max. angular gripper jaw backlash ax, ay0.13
Max. gripper jaw backlash Sz0.064
Rotationally symmetrical0.2
Repetition accuracy, gripper0.03
Number of gripper jaws2
Mounting positionAny
Mode of operationDouble-acting
CushioningElastic cushioning rings/plates at both ends
Gripper functionParallel
DesignRack and pinion
GuidePlain-bearing guide
Position detectionVia proximity switch
Symbol00991894
Operating pressure0.15, 0.8
Operating pressure1.5, 8
Operating pressure21.75, 116
Max. operating frequency of gripper2
Min. opening time at 0.6 MPa (6 bar, 87 psi)81
Min. closing time at 0.6 MPa (6 bar, 87 psi)116
Max. mass per external gripper finger305
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Degree of protectionIP54
Ambient temperature-10, 60
Total gripping force, opening, 0.6MPa (6bar, 87 psi)470
Total gripping force, closing, 0.6MPa (6bar, 87 psi)360
Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi)235
Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)180
Mass moment of inertia50.4, 76.4
Max. force on gripper jaw Fz static320
Max. torque at gripper Mx static6.5
Max. torque at gripper My static6.5
Max. torque at gripper Mz static6.5
Maintenance intervalLifetime lubrication
Product weight1447
Type of mountingEither:, Direct mounting via thread, With through-hole
Pneumatic connectionM5
Note on materialsRoHS compliant
Material cover capWrought aluminium alloy, anodised
Material coverAnodised wrought aluminium alloy
Material end plateAnodised wrought aluminium alloy
Material housingAnodised wrought aluminium alloy
Material gripper jawsAnodised wrought aluminium alloy
Material piston sealTPE-U(PU)
Material piston rodHigh-alloy stainless steel
Material o-ringNBR
Material screwsGalvanised steel
Gear rack materialHigh-alloy stainless steel
Gear wheel materialSintered bronze
Accessories 59
Genuine accessories that can be used with the Festo DHPL-25-50-P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QSM-M5-4 | Push-in fitting · Fittings | |
| QSML-M5-4 | Push-in L-fitting · Fittings | |
| PUN-H-4X0,75-NT | Plastic tubing · Tubes | |
| PUN-H-4X0,75-BL | Plastic tubing · Tubes | |
| PUN-H-4X0,75-SW | Plastic tubing · Tubes | |
| PUN-H-4X0,75-TBL | Plastic tubing · Tubes | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| NEBA-M8G3-U-1-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-M8G3 | Connecting cable · Connecting cables | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SME-10M | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-10M-DS-24V-E-2,5-L-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-10M-DS-24V-E-0,3-L-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-10M-ZS-24V-E-2,5-L-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-PS-24V-E-2,5-L-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-PS-24V-E-2,5-Q-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-PS-24V-E-0,3-L-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-PS-24V-E-0,3-Q-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-NS-24V-E-2,5-L-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-NS-24V-E-2,5-Q-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-NS-24V-E-0,3-L-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-NS-24V-E-0,3-Q-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-ZS-24V-E-2,5-L-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-10M-ZS-24V-E-2,5-Q-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| CRSMT-8M-PS-24V-K-5,0-OE-EX2 | Proximity sensor · Cylinder sensors for direct mounting | |
| CRSMT-8M-PS-24V-K-10,0-OE-EX2 | Proximity sensor · Cylinder sensors for direct mounting | |
| CRSMT-8M-PS-24V-K-0,3-M12-EX2 | Proximity sensor · Cylinder sensors for direct mounting | |
| CRSMT-8M-PS-24V-K-0,3-M8D-EX2 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-5-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-10-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDAT-MHS-M50-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M80-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M100-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M125-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M160-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE | Position transmitter · Cylinder sensors for direct mounting | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G4-U-2.5-N-LE4 | Connecting cable · Connecting cables | |
| NEBA-M8G4-U-5-N-LE4 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W4-U-2.5-N-LE4 | Connecting cable · Connecting cables | |
| NEBA-M8W4-U-5-N-LE4 | Connecting cable · Connecting cables | |
| NEBA-M12G5-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M12G5-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M12W5-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M12W5-U-5-N-LE3 | Connecting cable · Connecting cables | |
| SMT-10M-PS-24V-E-0,3-L-M12 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-2.5-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-20-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting |
