How can I get a price quote for Festo DHPL-10-20-P-A?

You can request a fast quote for Festo DHPL-10-20-P-A from Yılsa Engineering. Reference part number YLS7SWSCMJMXCI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DHPL-10-20-P-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DHPL-10-20-P-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DHPL-10-20-P-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

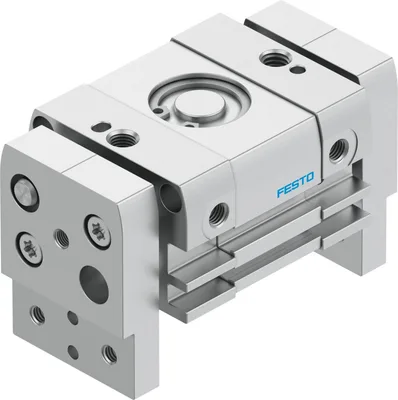

Festo DHPL-10-20-P-A

Parallel gripper. High torque resistance due to guided gripper jaw. Compact and sturdy design. Ideal for gripping larger parts. Double-acting piston drive. Suitable for external and internal gripping. Mounting: direct fastening via thread, with through-hole. For position sensing with proximity sensor for T-slot and for C-slot. Sustainable in production thanks to reduced use of materials

FestoMFR # DHPL-10-20-P-ASKU # YLS7SWSCMJMXCI

Size10

Total stroke20

Stroke per gripper jaws10

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.22

Max. gripper jaw backlash Sz0.064

Have questions?Chat on WhatsApp

About This Product

Festo DHPL-10-20-P-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size10

Total stroke20

Stroke per gripper jaws10

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0.22

Max. gripper jaw backlash Sz0.064

Rotationally symmetrical0.2

Repetition accuracy, gripper0.03

Number of gripper jaws2

Drive systemPneumatic

Mounting positionAny

Mode of operationDouble-acting

CushioningElastic cushioning rings/plates at both ends

Gripper functionParallel

Gripper force back-upNone

DesignRack and pinion

GuidePlain-bearing guide

Position detectionVia proximity switch

Symbol00991894

Operating pressure0.25, 0.8

Operating pressure2.5, 8

Operating pressure36.25, 116

Max. operating frequency of gripper2

Min. opening time at 0.6 MPa (6 bar, 87 psi)41

Min. closing time at 0.6 MPa (6 bar, 87 psi)70

Max. mass per external gripper finger54

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Degree of protectionIP54

Ambient temperature-10, 60

Total gripping force, opening, 0.6MPa (6bar, 87 psi)60

Total gripping force, closing, 0.6MPa (6bar, 87 psi)38

Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi)30

Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)19

Mass moment of inertia1.6, 2.2

Max. force on gripper jaw Fz static40

Max. torque at gripper Mx static0.5

Max. torque at gripper My static0.5

Max. torque at gripper Mz static0.5

Maintenance intervalLifetime lubrication

Product weight251

Type of mountingEither:, With through-hole

Pneumatic connectionM5

Note on materialsRoHS compliant

Material cover capWrought aluminium alloy, anodised

Material coverAnodised wrought aluminium alloy

Material end plateAnodised wrought aluminium alloy

Material housingAnodised wrought aluminium alloy

Material gripper jawsAnodised wrought aluminium alloy

Material piston sealTPE-U(PU)

Material piston rodHigh-alloy stainless steel

Material o-ringNBR

Material screwsGalvanised steel

Gear rack materialHigh-alloy stainless steel

Gear wheel materialSintered bronze

Accessories 59

Genuine accessories that can be used with the Festo DHPL-10-20-P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M5-4	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SME-10M	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-10,0-OE-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M12-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDAT-MHS-M50-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M80-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M100-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M125-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAT-MHS-M160-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3	Connecting cable · Connecting cables
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
