How can I get a price quote for FESTO DHEB-22-E-D-E-L?

You can request a fast quote for FESTO DHEB-22-E-D-E-L from Yılsa Engineering. Reference part number CEY-937FC781B55D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DHEB-22-E-D-E-L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DHEB-22-E-D-E-L genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DHEB-22-E-D-E-L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

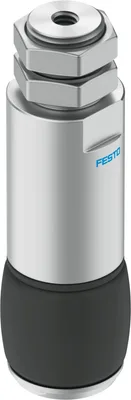

FESTO DHEB-22-E-D-E-L

Bellow gripper. 11 sizes for gripping diameter from 8 to 85 mm. Direction of movement: bellows upwards or downwards. Different bellows materials: EPDM or silicone. Air connection on the side or from above. Optimised process sequence with increased quality: prevents the workpieces from being scratched. Additional reliability: optional sensing via proximity or position sensor. For gentle internal gripping of delicate workpieces

FESTOMFR # DHEB-22-E-D-E-LSKU # CEY-937FC781B55D

Size22

Stroke of bellows12

Min. ø to be gripped24

Max. ø to be gripped31.5

Mounting positionAny

Mode of operationSingle-acting, Closed

Have questions?Chat on WhatsApp

About This Product

FESTO DHEB-22-E-D-E-L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size22

Stroke of bellows12

Min. ø to be gripped24

Max. ø to be gripped31.5

Mounting positionAny

Mode of operationSingle-acting, Closed

Gripper functionAdaptive

DesignContracting diaphragm, Force pilot operated motion sequence

GuideBasic Guide

Position detectionNone

Operating pressure5, 8

Reset pressure1

Max. operating frequency of gripper4

Min. opening time at 0.6 MPa (6 bar, 87 psi)30

Min. closing time at 0.6 MPa (6 bar, 87 psi)60

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature5, 60

Average replacement interval for the bellows0.5

Guide value for effective load0.32

Product weight43

Type of mountingWith male thread, Via lock nut

Pneumatic connectionM5

Note on materialsRoHS compliant

Material bellowsEPDM

Material housingAluminium, anodised

Accessories 89

Genuine accessories that can be used with the FESTO DHEB-22-E-D-E-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LS-T-M5-Q4	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q6	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q4-F1A	One-way flow control valve · Function fittings
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T-quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T-quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-4	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-4	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
