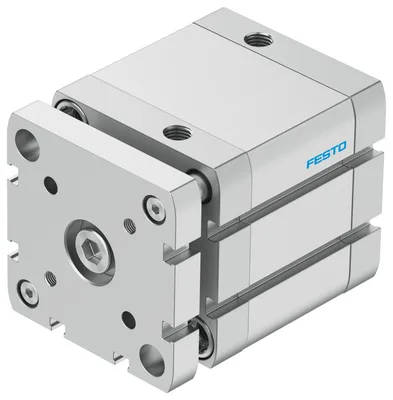

FESTO ADNGF-63-30-PPS-A
Compact cylinder. For position sensing. Standards-based cylinders to ISO 21287. Good running performance and long service life. With fixed or self-adjusting cushioning. Optionally available with a through piston rod
Stroke30
Piston diameter63 mm
Based on standardISO 21287
Mounting positionAny
DesignPiston, Piston rod, Profile barrel
Position detectionVia proximity switch
About This Product
Compact cylinder. For position sensing. Standards-based cylinders to ISO 21287. Good running performance and long service life. With fixed or self-adjusting cushioning. Optionally available with a through piston rod
FESTO ADNGF-63-30-PPS-A
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke30
Piston diameter63 mm
Based on standardISO 21287
CushioningSelf-adjusting pneumatic end-position cushioning
Mounting positionAny
DesignPiston, Piston rod, Profile barrel
Position detectionVia proximity switch
Protection against torque/guideGuide rod with yoke
Operating pressure0.14, 1
Operating pressure1.4, 10
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 80
Impact energy in end positions4.8
Cushioning length7
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1750
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870
Moving mass502
Product weight1162
Pneumatic connectionG1/8
Note on materialsRoHS compliant
Material collar screwsSteel
Material coverAnodised wrought aluminium alloy
Material sealsTPE-U(PUR)
Material end plateAnodised wrought aluminium alloy
Material piston rodHigh-alloy steel
Material cylinder barrelSmooth-anodised wrought aluminium alloy
Accessories 335
Genuine accessories that can be used with the FESTO ADNGF-63-30-PPS-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| PUN-H-6X1-NT | Plastic tubing · Tubes | |
| PUN-H-6X1-BL | Plastic tubing · Tubes | |
| PUN-H-6X1-SW | Plastic tubing · Tubes | |
| PUN-H-6X1-TBL | Plastic tubing · Tubes | |
| QS-G1/8-6 | Push-in fitting · Fittings | |
| QSL-G1/8-6 | Push-in L-fitting · Fittings | |
| GRLA-1/8-QS-6-D | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6 | One-way flow control valve · Function fittings | |
| FNC-63 | Flange mounting · Cylinder mountings | |
| SNCL-63 | Swivel flange · Cylinder mountings | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| VFOE-LE-T-G18-Q4 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q8 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6-P50 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q4-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q8-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6-F1A | One-way flow control valve · Function fittings | |
| CK-1/8-PK-4 | Quick connector · Quick connectors | |
| CK-1/8-PK-6 | Quick connector · Quick connectors | |
| CK-1/8-PK-3 | Quick connector · Quick connectors | |
| LCK-1/8-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-3 | T-quick connector · Quick connectors | |
| LCK-1/8-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4 | T-quick connector · Quick connectors | |
| TCK-1/8-PK-6 | T-quick connector · Quick connectors | |
| SEU-1/8 | Quick exhaust valve · Function fittings | |
| CK-1/8-PK-3-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-6-KU | Quick connector · Quick connectors | |
| LCK-1/8-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4-KU | T-quick connector · Quick connectors | |
| TCK-1/8-PK-6-KU | T-quick connector · Quick connectors | |
| GRU-1/8-B | Flow control/silencer · Function fittings | |
| SE-1/8-B | Quick exhaust valve · Function fittings | |
| CN-1/8-PK-3 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-6 | Barbed fitting · Barbed fittings | |
| LCN-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| TCN-1/8-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCNH-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| QSW-1/8-4 | Push-in fitting · Push-in fittings | |
| QSW-1/8-6 | Push-in fitting · Push-in fittings | |
| QSW-1/8-8 | Push-in fitting · Push-in fittings | |
| QSL-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSM-1/8-4-100 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-100 | Push-in fitting · Push-in fittings | |
| QSML-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-V0-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSML-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8-100 | Push-in L-fitting, long · Push-in fittings | |
| SME-8-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-S-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| GRLA-1/8-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-PK-3-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-PK-4-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-PK-6-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-RS-B | One-way flow control valve · Function fittings | |
| ABP-5-S | Slot cover · Mounting accessories | |
| SME-8-K-LED-230 | Proximity sensor · Cylinder sensors for direct mounting | |
| QSL-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/8-4-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/8-6-B | Multiple distributor · Push-in fittings | |
| QST3-1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| SME-8-O-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| QSL-V0-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/8-8 | Push-in T-fitting · Push-in fittings | |
| SME-8-K-24-S6 | Proximity sensor · Cylinder sensors for direct mounting | |
| CRZNG-63 | Trunnion flange · Cylinder mountings | |
| SME-8-ZS-KL-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SNC-63 | Swivel flange · Cylinder mountings | |
| SNCB-63 | Swivel flange · Cylinder mountings | |
| SNCS-63 | Swivel flange · Cylinder mountings | |
| ZNCF-63 | Trunnion flange · Cylinder mountings | |
| SME-8-K5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SNCB-63-R3 | Swivel flange · Cylinder mountings | |
| QS-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QSL-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/8-6 | Multiple distributor · Push-in fittings | |
| QST3-G1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-G1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-G1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-G1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-G1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSL-1/8-10 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-10 | Push-in T-fitting · Push-in fittings | |
| GRLA-1/8-QS-3-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-4-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-8-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-3-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-4-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-6-RS-D | One-way flow control valve · Function fittings | |
| HGL-1/8-B | Piloted check valve · Function fittings | |
| HGL-1/8-QS-4 | Piloted check valve · Function fittings | |
| HGL-1/8-QS-6 | Piloted check valve · Function fittings | |
| SME-8-K-7,5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| GRLA-1/8-QS-8-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-6-MF-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-8-MF-D | One-way flow control valve · Function fittings | |
| DPNA-63 | Multi-position kit · Cylinder mountings | |
| SMBN-10 | Mounting · Mounting kits for proximity sensors, other sensors | |
| GRLSA-1/8-QS-6 | One-way flow control valve · Function fittings | |
| HGL-1/8-1/8-B | Piloted check valve · Function fittings | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| VBQF-U-G18-E | Quick exhaust valve · Function fittings | |
| VBQF-U-G18-Q6 | Quick exhaust valve · Function fittings | |
| VBQF-D-G18-E | Quick exhaust valve · Function fittings | |
| VBQF-D-G18-Q6 | Quick exhaust valve · Function fittings | |
| SMT-8-SL-PS-LED-24-B | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| VFOH-LE-A-G18-Q4 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G18-Q6 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G18-Q8 | One-way flow control valve · Function fittings | |
| SDBT-MS-20NL-ZN-E-5-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-10-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-L-2G18-F | Elbow fitting · Other connectors | |
| NPFC-L-R18-G18-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R18-M | Elbow fitting · Other connectors | |
| NPFC-Y-R18-2G18-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G18-F | T-fitting · Other connectors | |
| NPFC-T-R18-2G18-MFF | T-fitting · Other connectors | |
| NPFC-T-2G18-R18-FMF | T-fitting · Other connectors | |
| NPFC-T-G18-2R18-FMM | T-fitting · Other connectors | |
| NPFC-T-2R18-G18-MMF | T-fitting · Other connectors | |
| NPFC-D-M7-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M | Double nipple · Other connectors | |
| NPFC-D-2R18-M | Double nipple · Other connectors | |
| NPFC-S-2G18-F | Coupling sleeve · Other connectors | |
| NPFC-R-G38-G18-F | Reducing coupling · Other connectors | |
| NPFC-E1-2G18-FM | Extension · Other connectors | |
| NPFC-E2-2G18-FM | Extension · Other connectors | |
| NPFC-E3-2G18-FM | Extension · Other connectors | |
| NPFC-E4-2G18-FM | Extension · Other connectors | |
| NPFC-R-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G14-G18-FM | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Other connectors | |
| NEAU-A-N8-1 | Mounting · Mounting accessories | |
| NEAU-A-N8-2 | Mounting · Mounting accessories | |
| SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE | Position transmitter · Cylinder sensors for direct mounting | |
| NPFC-D-M5-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G14-G18-F | Reducing coupling · Other connectors | |
| NPFC-R-G12-G18-F | Reducing coupling · Other connectors | |
| NPFC-R-G14-G18-MF-P100 | Reducing nipple · Other connectors | |
| NPFC-H-G18-F | Bulkhead fitting · Other connectors | |
| NPFC-D-2G18-M-F1A | Double nipple · Other connectors | |
| SMT-8M-A-NO-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-DS-G18-G18-M | Double nipple · Other connectors | |
| NPFC-DS-G18-G14-M | Double nipple · Other connectors | |
| NPFC-RS-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Other connectors | |
| SMT-8M-A-ZS-24V-E-5,0-OE | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-2.5-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-20-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting |
Related Products
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
View Details
Festo
DDPC-...-80- -
MFR #DDPC-...-80- -
SKU #YLS4SHYOTSRTIP
View Details
Festo
AEVUZ-12- -P-A
MFR #AEVUZ-12- -P-A
SKU #YLSCKLUCYWUPXLU
View Details
Festo
AEVUZ-12- -A-P-A
MFR #AEVUZ-12- -A-P-A
SKU #YLSTV5C7OJHR5U
View Details
Festo
AEVU-12- -P-A
MFR #AEVU-12- -P-A
SKU #YLS3TZ4SLKMP3F9
View Details
Festo
AEVU-12- -A-P-A
MFR #AEVU-12- -A-P-A
SKU #YLS3HRQPDAIT8C
View Details
Festo
SLG-8- -
MFR #SLG-8- -
SKU #YLS9SOTFXFPKQRQ
View Details
Festo
SLG-12- -
MFR #SLG-12- -
SKU #YLS9BK0KMC5LER
View Details
Festo
ADVU-12- -P-A
MFR #ADVU-12- -P-A
SKU #YLS0CS8PIQ6XHGN
Featured Products
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Related Searches
FESTO ADNGF-63-30-PPS-A priceFESTO ADNGF-63-30-PPS-A quotebuy FESTO ADNGF-63-30-PPS-AADNGF-63-30-PPS-A priceADNGF-63-30-PPS-A stock availabilityFESTO spare partsFESTO ADNGF-63-30-PPS-A equivalentFESTO ADNGF-63-30-PPS-A specifications
