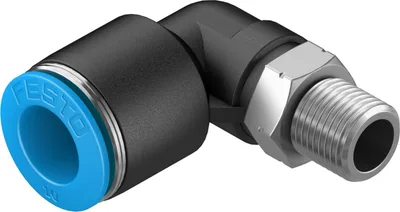

FESTO QSL-1/8-10

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO QSL-1/8-10

Push-in L-fitting. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FESTOMFR # QSL-1/8-10SKU # CEY-937FC78225C4
SizeStandard
Nominal size6
Tubing insertion depth20.2
Type of seal on screwed plugCoating
Mounting positionAny
DesignL-shape
Share
Have questions?Chat on WhatsApp

About This Product

Push-in L-fitting. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FESTO QSL-1/8-10

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size6
Tubing insertion depth20.2
Type of seal on screwed plugCoating
Mounting positionAny
DesignL-shape
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 80
Product weight18
Type of mountingExternal hex SW12
Pneumatic connection, port 1Male thread R1/8
Pneumatic connection, port 2For tubing outside diameter of 10 mm
Colour of release ringBlue
Material screwed plugNickel-plated brass
Note on materialsRoHS compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel

Accessories 84

Genuine accessories that can be used with the FESTO QSL-1/8-10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
QSORelease tool · General accessories
PUN-H-10X1,5-SWPlastic tubing · Tubes
PUN-H-10X1,5-TBL Plastic tubing · Tubes
PUN-H-10X1,5-NTPlastic tubing · Tubes
PUN-H-10X1,5-BL Plastic tubing · Tubes
PUN-10X1,5-SG-4,8-BL-1/4 Spiral plastic tubing · Tubing
PUN-10X1,5-SG-6-BL-1/4 Spiral plastic tubing · Tubing
PUN-10X1,5-SG-2,4-BL-1/4 Spiral plastic tubing · Tubing
PUN-10X1,5-SIPlastic tubing · Tubing
PAN-10X1,5-SIPlastic tubing · Tubing
PUN-10X1,5-DUO-SIDUO tubing · Tubing
PUN-10X1,5-BLPlastic tubing · Tubing
PUN-10X1,5-SWPlastic tubing · Tubing
PUN-10X1,5-DUO-BSDUO tubing · Tubing
PUN-10X1,5-RTPlastic tubing · Tubing
PUN-10X1,5-GEPlastic tubing · Tubing
PUN-10X1,5-GNPlastic tubing · Tubing
PUN-10X1,5-S-1-BLSpiral plastic tubing · Tubing
PUN-10X1,5-S-2-BLSpiral plastic tubing · Tubing
PUN-10X1,5-S-6-BLSpiral plastic tubing · Tubing
PUN-10X1,5-S-1-SWSpiral plastic tubing · Tubing
PUN-10X1,5-S-2-SWSpiral plastic tubing · Tubing
PUN-10X1,5-S-6-SWSpiral plastic tubing · Tubing
PUN-10X1,5-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-10X1,5-S-2-DUO-BSDUO spiral plastic tubing · Tubing
PUN-10X1,5-S-6-DUO-BS DUO spiral plastic tubing · Tubing
PUN-10X1,5-SI-300Plastic tubing · Tubing
PUN-10X1,5-BL-300Plastic tubing · Tubing
PEN-10X1,5-SWPlastic tubing · Tubing
PEN-10X1,5-NTPlastic tubing · Tubing
PAN-10X1,5-NTPlastic tubing · Tubing
PEN-10X1,5-SW-300Plastic tubing · Tubing
PEN-10X1,5-BL-300Plastic tubing · Tubing
PEN-10X1,5-SI-300Plastic tubing · Tubing
PEN-10X1,5-BLPlastic tubing · Tubing
PEN-10X1,5-SIPlastic tubing · Tubing
PEN-10X1,5-GNPlastic tubing · Tubing
PEN-10X1,5-RTPlastic tubing · Tubing
PEN-10X1,5-GEPlastic tubing · Tubing
PUNPlastic tubing · Tubing
PANPlastic tubing · Tubing
PENPlastic tubing · Tubing
PLNPlastic tubing · Tubing
PAN-10X1,5-SI-300Plastic tubing · Tubing
PAN-10X1,5-BL-300Plastic tubing · Tubing
PAN-10X1,5-SW-300Plastic tubing · Tubing
PAN-10X1,5-BLPlastic tubing · Tubing
PAN-10X1,5-SWPlastic tubing · Tubing
PAN-10X1,5-GNPlastic tubing · Tubing
PAN-10X1,5-RTPlastic tubing · Tubing
PAN-10X1,5-GEPlastic tubing · Tubing
PUN-10X1,5-SW-300Plastic tubing · Tubing
PUN-H-10X1,5-SW-300Plastic tubing · Tubing
PUN-H-10X1,5-BL-300Plastic tubing · Tubing
PUN-H-10X1,5-NT-300Plastic tubing · Tubing
PUN-H-10X1,5-SI-300Plastic tubing · Tubing
PUN-H-10X1,5-SIPlastic tubing · Tubing
PUN-H-10X1,5-RTPlastic tubing · Tubing
PUN-H-10X1,5-GNPlastic tubing · Tubing
PUN-H-10X1,5-GEPlastic tubing · Tubing
PUN-H-10X1,5-TBL-300Plastic tubing · Tubing
PUN-H-10X1,5-TSWPlastic tubing · Tubing
PUN-H-10X1,5-TSW-300Plastic tubing · Tubing
PUN-H-10X1,5-TRTPlastic tubing · Tubing
PUN-H-10X1,5-TRT-300Plastic tubing · Tubing
PUN-H-10X1,5-TGNPlastic tubing · Tubing
PUN-H-10X1,5-TGN-300Plastic tubing · Tubing
PUN-H-10X1,5-TGEPlastic tubing · Tubing
PUN-H-10X1,5-TGE-300Plastic tubing · Tubing
PTFEN-10X1,5-NTPlastic tubing · Tubing
PTFEN-10X1,5-NT-300Plastic tubing · Tubing
PUN-H-F-10X1,5-RTPlastic tubing · Tubing
PUN-H-F-10X1,5-BLPlastic tubing · Tubing
PUN-H-F-10X1,5-TBLPlastic tubing · Tubing
PUN-H-F-10X1,5-GNPlastic tubing · Tubing
PUN-H-F-10X1,5-GEPlastic tubing · Tubing
PUN-H-F-10X1,5-SWPlastic tubing · Tubing
PUN-H-F-10X1,5-NTPlastic tubing · Tubing
PUN-H-SF-10X2-BLPlastic tubing · Tubing
PUN-H-SF-10X2-SWPlastic tubing · Tubing
PUN-H-10X1,5-BL-25Plastic tubing · Tubing
PUN-H-10X1,5-SW-25Plastic tubing · Tubing
PUN-H-10X1,5-RT-25Plastic tubing · Tubing
PUN-H-10X1,5-TBL-25Plastic tubing · Tubing
