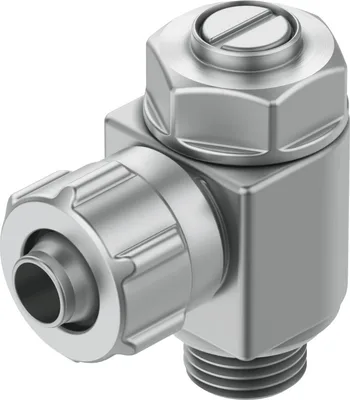

FESTO GRLA-1/8-PK-6-B
One-way flow control valve. Functional combination of one-way flow control valve and piloted check valve. Flow control valve, flow control at one end. Polymer, metal or stainless steel design. Standard, mini, in-line variants with different flow rates. Connections: thread at both ends, push-in connector at both ends, thread/push-in connector
Pneumatic connection, port 1PK-6 with union nut
Pneumatic connection, port 2G1/8
Adjustment componentSlotted head screw
Type of mountingScrew-in
Ambient temperature-10, 60
Maritime classificationSee certificate
About This Product
One-way flow control valve. Functional combination of one-way flow control valve and piloted check valve. Flow control valve, flow control at one end. Polymer, metal or stainless steel design. Standard, mini, in-line variants with different flow rates. Connections: thread at both ends, push-in connector at both ends, thread/push-in connector
FESTO GRLA-1/8-PK-6-B
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve functionExhaust air one-way flow control function
Pneumatic connection, port 1PK-6 with union nut
Pneumatic connection, port 2G1/8
Adjustment componentSlotted head screw
Type of mountingScrew-in
Standard nominal flow rate in flow control direction300
Standard nominal flow rate in blocked direction210, 290
Ambient temperature-10, 60
Maritime classificationSee certificate
Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Mounting positionAny
Symbol00991452
Operating pressure complete temperature range0.3, 10
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)455
Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)320, 440
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Media temperature-10, 60
Max. tightening torque6
Product weight25
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material sealsNBR
Material adjusting screwBrass
Material swivel fittingDie-cast zinc
