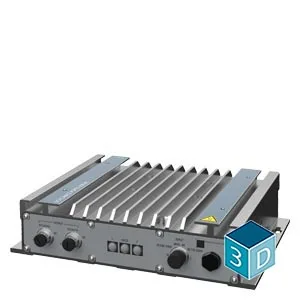

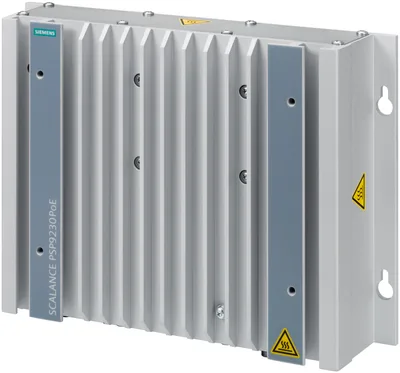

Siemens 6GK5923-0PS00-2AA6
SCALANCE PSP9230PoE; giriş: 100-240 V AC, 110-250 V DC; çıkış: 24 V DC/1 A + 54 V DC/4 A; IP65 güç kaynağı için power-over-Ethernet (PoE); SCALANCE XP208 veya XP216 mountable on PSP9230PoE güç kaynağı ünite; two adapter plates included in scope of besleme; çalışma outside of kontrol pano possible; optional aksesuar: M12 plug (S-coded): 6GK1907-0DC00-6AA4, M12 plug-in cables pre-assembled (L-coded) lengths 0,5 m to 15 m mevcut (see compact installation instructions)
product brand nameSCALANCE
product categoryPower supply
voltage curve / at input1-phase AC veya DC
supply voltage / 1 / rated value230 V
supply voltage / 1 / rated value85... 264 V
supply voltage / 2 / rated value110 V
Ürün Hakkında
SCALANCE PSP9230PoE; giriş: 100-240 V AC, 110-250 V DC; çıkış: 24 V DC/1 A + 54 V DC/4 A; IP65 güç kaynağı için power-over-Ethernet (PoE); SCALANCE XP208 veya XP216 mountable on PSP9230PoE güç kaynağı ünite; two adapter plates included in scope of besleme; çalışma outside of kontrol pano possible; optional aksesuar: M12 plug (S-coded): 6GK1907-0DC00-6AA4, M12 plug-in cables pre-assembled (L-coded) lengths 0,5 m to 15 m mevcut (see compact installation instructions)
Siemens 6GK5923-0PS00-2AA6
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
type of current supply240 W, input nominal voltage: 100V
240V AC / 110V
250V DC, non-redundant, 50/60 Hz, output: 24V DC (1A) / 54V DC (4A)
suitability for useIP65 power supply unit for PoE, especially for use with SCALANCE XP-200 devices. SCALANCE XP208 can be mounted directly ve SCALANCE XP216 can be mounted on the PSP9230PoE using two adapter plates included in scope of delivery. Intended for operation outside a control cabinet.
electrical data
product categoryPower supply
electrical data / input
voltage curve / at input1-phase AC veya DC
supply voltage / 1 / rated value230 V
supply voltage / 1 / rated value85... 264 V
type of voltage / 1 / of the supply voltageAC
consumed current / 1 / at rated supply voltage / maximum2,67 A
supply voltage / 2 / rated value110 V
supply voltage / 2 / rated value88... 300 V
type of voltage / 2 / of the supply voltageDC; PSP9230PoE with EN 50155 supports the voltage range 77... 300 V DC
consumed current / 2 / at rated supply voltage / maximum2,5 A
design of input / wide range inputVar
overvoltage categoryCategory II
buffering time / for rated value of the output current / in the event of power failure / minimum20 ms
50 HzVar
60 HzVar
line frequency47... 63 Hz
input current / at rated input voltage 230 V / rated value1,1 A
current limitation / of inrush current / at 25 °C / maximum60 A
fuse protection type / at inputfuse T 4A, electronically controlled
electrical data / output
voltage curve / at outputControlled, isolated DC voltage
1 / at DC / rated value56 V
2 / at DC / rated value24 V
display version / for normal operationLED green for DC ok
voltage increase time / of the output voltage / maximum800 ms
rated value3 A
rated range0... 4 A
supplied active power / typical224 W
product feature / parallel switching of channelsYok
number of parallel-switched equipment resources / for increasing the power0
efficiency in percent93,4 %
power loss [W]24 W
electrical data / closed-loop control
relative overall tolerance / of the voltage3 %
residual ripple / maximum0,05 V
switching frequency100 kHz; 10...200
electrical data / protection and monitoring
property of the output / short-circuit proofVar
design of short-circuit protectionElectronic shutdown, automatic restart
enduring short circuit current / RMS value / maximum8,2 A
electrical data / safety
galvanic isolation / between input and outputVar
galvanic isolationInput to output: 4 kV, input to PE 2,5 kV, output to PE: 2,25 kV
operating resource protection classClass I
interfaces
for power supply1
for signaling contact0
for power supplyM12 (S-coded)
at output2x M12 (L-coded)
display versionLED
signal inputs/outputs
product component / signaling contactYok
design, dimensions and weights
designcompact
width280 mm
height200 mm
depth65 mm
net weight4,5 kg
product feature / of the enclosure / housing can be lined upYok
fastening methodwall mounting, back wall mounting
19-inch installationYok
wall mountingVar
screw connectionVar
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
noteConvection
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
environmental category / according to IEC 60721Climate class 3K3, without condensation
protection class IPIP65
standards, specifications, approvals
for safety / from CSA and ULUL 62368-1:2014 (Second Edition) Report Yok. E115352, IEC 62368-1:2014 (Second Edition)
for emitted interferenceEN 61000-6-4:2007 +A1:2011
for interference immunityEN 61000-6-2:2019
certificate of suitabilityEN 61000-6-4: 2007
CE markingVar
C-TickVar
KC onayıVar
IEC 61850-3Yok
IEEE 1613Yok
MTBF94,74 a; EN/IEC 61709; 40°C)
accessories
accessoriespower M12 cable connector PRO (6GK1907-0DC00-6AA4)
accessories / included2 adapter plates including 4 countersunk head screws for mounting SCALANCE XP216 on PSP9230PoE
