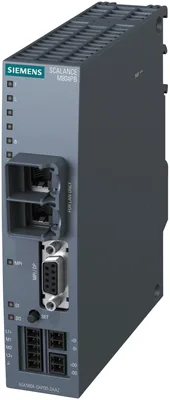

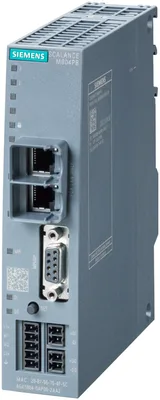

Siemens 6GK5804-0AP00-2AA2
SCALANCE M804PB; Router için secure uzak bağlantı of PROFIBUS / MPI programmable controllers at Ethernet networks by means of VPN ve firewall. Further functions: adres conversion (NAT/NAPT), bağlantı to SINEMA RC, 2-port anahtar; 1x dijital giriş, 1x dijital çıkış.
product brand nameSCALANCE
transfer rate / for Industrial Ethernet10, 100 Mbit/s
for internal network2
for external network1
for power supply2
for power supplyTerminal strip
Ürün Hakkında
SCALANCE M804PB; Router için secure uzak bağlantı of PROFIBUS / MPI programmable controllers at Ethernet networks by means of VPN ve firewall. Further functions: adres conversion (NAT/NAPT), bağlantı to SINEMA RC, 2-port anahtar; 1x dijital giriş, 1x dijital çıkış.
Siemens 6GK5804-0AP00-2AA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate / for Industrial Ethernet10, 100 Mbit/s
interfaces
for internal network2
for external network1
number of interfaces / according to RS 4851
for power supply2
for internal networkRJ45 port (10/100 Mbit/s, TP, autocrossover), SUB-D
for external networkRJ45 port (10/100 Mbit/s, TP, autocrossover)
for power supplyTerminal strip
supply voltage, current consumption, power loss
supply voltage / rated value10,8... 28,8
at DC / at 24 V / typical0,25 A
maximum8 W
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
ambient conditions
during operation-20... +60 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
depth127 mm
height147 mm
width35 mm
net weight350 g
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
product features, product functions, product components / general
DynDNS clientVar
no-ip.com clientVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeYok
statistics packet typeYok
error statisticsYok
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
with VPN connectionIPsec, OpenVPN (as Client)
number of possible connections / with VPN connection20
type of authentication / with Virtual Private Network / PSKVar
IPsec tunnel and transport modeVar
1 / with IPsec AES / with Virtual Private Network128 bit
2 / with IPsec AES / with Virtual Private Network192 bit
3 / with IPsec AES / with Virtual Private Network256 bit
with IPsec 3DES / with Virtual Private Network168 bit
main modeVar
quick modeVar
type of packet authentication / with Virtual Private NetworkMD5, SHA-1, SHA-256, SHA-384, SHA-512
IETF profile / with Virtual Private Network / X.509v3 certificateVar
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total280,14 kg
during manufacturing29,35 kg
during operation250,33 kg
after end of life0,46 kg
Aksesuarlar 1
Siemens 6GK5804-0AP00-2AA2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9MC0110-1EG00-0AA3 | Servis · Box PC |
