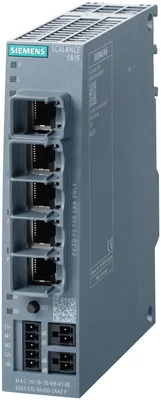

Siemens 6GK5615-0AA00-2AA2
SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output.
product brand nameSCALANCE
transfer rate10, 100 Mbit/s
for power supply1
for redundant voltage supply1
for power supply5-pole terminal block
design of the removable storage / C-PLUGVar
Ürün Hakkında
SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output.
Siemens 6GK5615-0AA00-2AA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate10, 100 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum5
for power supply1
for redundant voltage supply1
for power supply5-pole terminal block
design of the removable storage / C-PLUGVar
signal inputs/outputs
for digital input signals1
for digital output signals1
for digital input signals2-pole terminal block
for digital output signals2-pole terminal block
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value4 W
supply voltage / 1 / rated value10,8... 28,8 V
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageNon-replaceable melting fuse (F 2 A5 / 32 V)
consumed current / at DC / at 24 V / typical0,2 A
ambient conditions
during operation-40... +70 °C
during storage-40... +80 °C
during transport-40... +80 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

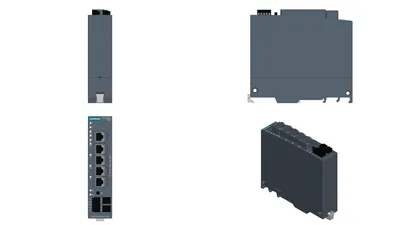

design, dimensions and weights
designcompact
width35 mm
height147 mm
depth127 mm
net weight0,4 kg
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
HTTPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
type of configurationWeb Based Management, CLI, SNMP, SCT (Configuration support for certificate generation)
product functions / diagnostics
SysLogVar
packet filter logVar
audit logVar
system logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
product function / static IP routingVar
protocol / is supported / VRRP for IPv6Var
product functions / security
firewall versionstateful inspection
product function / with VPN connectionIPsec, OpenVPN (as client for SINEMA RC)
type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168, DES-56
type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates
type of hashing algorithms / with VPN connectionMD5, SHA-1, SHA-256, SHA-384, SHA-512
number of possible connections / with VPN connection20
password protectionVar
bandwidth limitationYok
NAT/NAPTVar
product functions / time
protocol / is supported / NTPVar
product component / hardware real time clockVar
product feature / hardware real time clock w. battery backupYok
standards, specifications, approvals
for safety / from CSA and ULUL 60950 E115352
for emitted interferenceEN 61000-6-4
for interference immunityEN 61000-6-2
certificate of suitabilityATEX, EMC, RoHS
CE markingVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Var
DNV GLVar
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Var
Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN 60079-15, EN 60079-0, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X
certificate of suitability / CCC / for hazardous zone according to GB standardVar; GB3836.1, GB3836.8
certificate of suitability / CCC / for hazardous zone according to GB standard / as markingEx nA IIC T4 Gc
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total141,056 kg
during manufacturing15,6 kg
during operation125 kg
after end of life0,42 kg
accessories
C-PLUGYok
KEY-PLUGVar
accessoriesoptional KEY-PLUG
