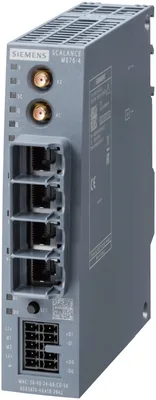

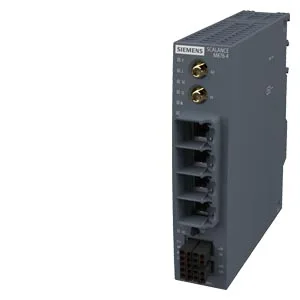

Siemens 6GK5876-4AA10-2BA2
SCALANCE M876-4 4G router; for wireless IP communication from Ethernet-based programmable controllers via LTE (4G) mobile radio optimized for worldwide usage, VPN, firewall, NAT; 4-port switch; 2x SMA antennas, MIMO technology; 1x digital input, 1x digital output; observe national approvals.
product brand nameSCALANCE
transfer rate / for Industrial Ethernet10, 100 Mbit/s
for internal network4
for external network2
for power supply2
for external antenna(s)SMA antenna socket (50 ohms)
Ürün Hakkında
SCALANCE M876-4 4G router; for wireless IP communication from Ethernet-based programmable controllers via LTE (4G) mobile radio optimized for worldwide usage, VPN, firewall, NAT; 4-port switch; 2x SMA antennas, MIMO technology; 1x digital input, 1x digital output; observe national approvals.
Siemens 6GK5876-4AA10-2BA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate / for Industrial Ethernet10, 100 Mbit/s
for GPRS transmission / with downlink / maximum85,6 kbit/s
for GPRS transmission / with uplink / maximum85,6 kbit/s
with eGPRS transmission / with downlink / maximum236,8 kbit/s
with eGPRS transmission / with uplink / maximum236,8 kbit/s
with UMTS transmission / with downlink / maximum14,4 Mbit/s
with UMTS transmission / with uplink / maximum5,76 Mbit/s
for LTE transmission / with downlink / maximum100 Mbit/s
for LTE transmission / with uplink / maximum50 Mbit/s
interfaces
for internal network4
for external network2
for power supply2
for internal networkRJ45 port (10/100 Mbit/s, TP, autocrossover)
for external antenna(s)SMA antenna socket (50 ohms)
for power supply5-pole terminal strip
signal inputs/outputs
number of digital inputs1
number of digital outputs1
WAN connection
type of wireless network / is supportedLTE, UMTS, GSM
type of mobile wireless service / is supportedGPRS, eGPRS, HSPA+
operating frequency / for GSM transmission850 MHz, 900 MHz, 1800 MHz, 1900 MHz
LTEB1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28, B38, B40, B41, B66
UMTSB1, B2, B4, B5, B6, B8, B19
supply voltage, current consumption, power loss
supply voltage / rated value10,8... 28,8
at DC / at 24 V / typical0,33 A
maximum8 W
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
ambient conditions
during operation-20... +70 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
depth127 mm
height147 mm
width35 mm
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
product features, product functions, product components / general
DynDNS clientVar
no-ip.com clientVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeYok
statistics packet typeYok
error statisticsYok
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
with VPN connectionIPsec, OpenVPN (as Client)
number of possible connections / with VPN connection20
type of authentication / with Virtual Private Network / PSKVar
IPsec tunnel and transport modeVar
1 / with IPsec AES / with Virtual Private Network128 bit
2 / with IPsec AES / with Virtual Private Network192 bit
3 / with IPsec AES / with Virtual Private Network256 bit
with IPsec 3DES / with Virtual Private Network168 bit
main modeVar
quick modeVar
type of packet authentication / with Virtual Private NetworkMD5, SHA-1, SHA-256, SHA-384, SHA-512
IETF profile / with Virtual Private Network / X.509v3 certificateVar
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals
for EMCETSI EN 301 489-1, ETSI EN 301 489-52, EN 55011, NAMUR NE21
for emitted interferenceCISPR 32, ETSI EN 55032 Class A / Class B, EN IEC 61000-6-3, EN IEC 61000-6-4
for interference immunityCISPR 35, EN 55035, EN IEC 61000-6-1, EN IEC 61000-6-2
CE markingVar
railway application in accordance with EN 50121-3-2Var
railway application in accordance with EN 50121-4Var
railway application in accordance with EN 50155Var; no coated printed-circuit boards, EMC: trackside unit/vehicle unit, climate: use in the vehicle within equipment boxes/cabinets, mechanical system: class B: in equipment housing
Aksesuarlar 1
Siemens 6GK5876-4AA10-2BA2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9MC0110-1EG00-0AA3 | Servis · Box PC |
