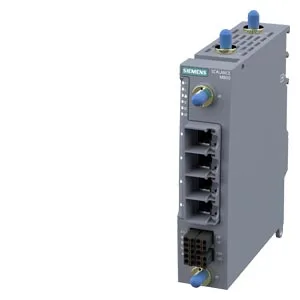

Siemens 6GK5853-2EA10-2BA1
SCALANCE MUM853-1 (B1) 5G router, IP30, için kablosuz IP communication from Ethernet-based applications via public 3/4/5G mobile radio networks ve private 5G networks, VPN, firewall, NAT, IPv6, bağlantı to SINEMA RC via CLP, 4 SMA connections, 1x micro SIM slot, eSIM, 4x10/100/1000 Mbps RJ45 port, redundant DC 24 V, -30… +60 °C, CLP slot, 1x DI ve 1x DO, observe national approvals: siemens.com/mobile-approvals CERT ID: MS5G16R-30-M1-RJ-E4-2
product brand nameSCALANCE
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
for external antenna(s)4
for power supply1
for redundant voltage supply1
for external antenna(s)SMA antenna socket (50 ohms)
Ürün Hakkında
SCALANCE MUM853-1 (B1) 5G router, IP30, için kablosuz IP communication from Ethernet-based applications via public 3/4/5G mobile radio networks ve private 5G networks, VPN, firewall, NAT, IPv6, bağlantı to SINEMA RC via CLP, 4 SMA connections, 1x micro SIM slot, eSIM, 4x10/100/1000 Mbps RJ45 port, redundant DC 24 V, -30… +60 °C, CLP slot, 1x DI ve 1x DO, observe national approvals: siemens.com/mobile-approvals CERT ID: MS5G16R-30-M1-RJ-E4-2
Siemens 6GK5853-2EA10-2BA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
with UMTS transmission / with downlink / maximum42 Mbit/s
with UMTS transmission / with uplink / maximum5,76 Mbit/s
for LTE transmission / with downlink / maximum1000 Mbit/s
for LTE transmission / with uplink / maximum200 Mbit/s
for 5G transmission / with downlink / maximum1000 Mbit/s
for 5G transmission / with uplink / maximum500 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum4
number of electrical/optical connections / for gigabit Ethernet / maximum4
for network components or terminal equipment4
for external antenna(s)4
for power supply1
for redundant voltage supply1
for internal networkRJ45 port (10/100/1000 Mbps, TP, auto-crossover)
for external antenna(s)SMA antenna socket (50 ohms)
for power supply5-pole terminal strip
memory
number of slots / for Micro-SIM card1
product component / eSIM integratedVar
design of the removable storage / CLPVar
signal inputs/outputs
number of digital inputs1
number of digital outputs1
type of electrical connection / at the digital inputs/outputsterminal block
input voltage / at digital input / at DC-30... +30 V
output voltage / at digital output / at DC / maximum24 V; 0,5 A
operational current / of the signaling contacts / at DC / at 30 V / maximum0,008 A
WAN connection
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS
type of mobile wireless service / is supportedHSDPA, HSUPA, HSPA+
5G Standalone (SA)n1, n3, n5, n8, n28, n41, n77, n78, n79
5G Non-Standalone (NSA)n41, n78, n79
LTEB1, B3, B5, B8, B34, B38, B39, B40, B41
UMTSB1, B5, B8
supply voltage, current consumption, power loss
at DC / at 24 V0,55 A
at DC / at 24 V / sleep mode / maximum0,013 A
supply voltage / 1 / rated value24 V
type of voltageredundant power supply, 24 V DC
type of voltage / 1 / of the supply voltageDC
supply voltage / 2 / rated value24 V
type of voltage / 2 / of the supply voltageDC
ambient conditions
during operation-30... +60 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP30
design, dimensions and weights
designcompact
depth137 mm
height157 mm
width35 mm
net weight680 g
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
product features, product functions, product components / general
DynDNS clientVar
no-ip.com clientVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
with VPN connectionIPsec, OpenVPN (as Client)
number of possible connections / with VPN connection20
type of authentication / with Virtual Private Network / PSKVar
IPsec tunnel and transport modeVar
1 / with IPsec AES / with Virtual Private Network128 bit
2 / with IPsec AES / with Virtual Private Network192 bit
3 / with IPsec AES / with Virtual Private Network256 bit
with IPsec 3DES / with Virtual Private Network168 bit
main modeVar
quick modeVar
type of packet authentication / with Virtual Private NetworkMD5, SHA-1, SHA-256, SHA-384, SHA-512
IETF profile / with Virtual Private Network / X.509v3 certificateVar
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals
SRRC approvalVar; SRRC-ID: 2023CJ21647
NAL approvalVar; NAL-ID: 17-7730-234111
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total390,86 kg
during manufacturing29,7 kg
during operation361 kg
after end of life0,16 kg
