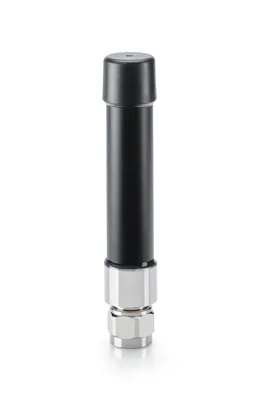

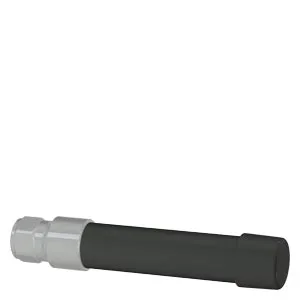

Siemens 6GK5897-4MC00-0AA0
Please observe national approvals: www.siemens.com/mobilenetwork-approvals antenna for GSM (2G), UMTS (3G) and for public 3/4/5G mobile wireless networks and private 5G networks worldwide; omnidirectional characteristic; 600..5000 MHz; antenna gain: 2..3dBi, including N-Connect male connection, IP67 -30..+70°C, national approvals to be observed; for direct installation with N-Connect connection system scope of delivery: 1x ANT 897-4MC, compact instructions as hard copy German/English.
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks
operating frequency / 1617... 960 MHz
operating frequency / 21452... 1496 MHz
operating frequency / 31710... 2690 MHz
operating frequency / 43300... 5000 MHz
Ürün Hakkında
Please observe national approvals: www.siemens.com/mobilenetwork-approvals antenna for GSM (2G), UMTS (3G) and for public 3/4/5G mobile wireless networks and private 5G networks worldwide; omnidirectional characteristic; 600..5000 MHz; antenna gain: 2..3dBi, including N-Connect male connection, IP67 -30..+70°C, national approvals to be observed; for direct installation with N-Connect connection system scope of delivery: 1x ANT 897-4MC, compact instructions as hard copy German/English.
Siemens 6GK5897-4MC00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks
radio frequencies
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS, GSM
operating frequency / 1617... 960 MHz
operating frequency / 21452... 1496 MHz
operating frequency / 31710... 2690 MHz
operating frequency / 43300... 5000 MHz
electrical data
with linear radiation / in operating frequency area 1 / typical2 dB
with linear radiation / in operating frequency area 2 / typical2 dB
with linear radiation / in operating frequency area 3 / typical2 dB
with linear radiation / in operating frequency area 4 / typical3 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum3,5
horizontal360°
number of electrical connections / of the antenna1
type of electrical connection / of the antennaN-Connector
design of plug-in connectionmale, straight
mechanical data
of outer shellGlass fiber
colorblack
ambient conditions
during operation-30... +70 °C
during storage-40... +85 °C
protection class IPIP65/67
product feature / resistant to UV radiationVar
design, dimensions and weights
height132 mm
diameter24 mm
net weight96 g
mast mountingYok
flat roof mountingYok
wall mountingYok
roof mountingYok
directly on the deviceVar
product features, product functions, product components / general
product feature / silicon-freeVar
standards, specifications, approvals
RoHS conformityVar
Aksesuarlar 1
Siemens 6GK5897-4MC00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9MC0110-1EG00-0AA3 | Servis · Box PC |
