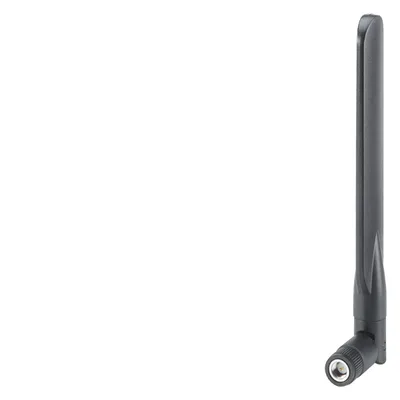

Siemens 6GK5897-4MA00-0AA3
Please observe national approvals: www.siemens.com/mobilenetwork-approvals antenna için public 3G/4G/5G mobile kablosuz networks ve private 5G networks worldwide; omnidirectional characteristic; 600..5000 MHz antenna gain: 1..2dBi, incl. SMA male bağlantı, radial rotatable ile ek joint, IP65 (-20... +65 °C), observe national approvals; için direct installation ile SMA bağlantı system scope of teslimat: 1x ANT 897-4MA, compact instructions as hard copy German/English
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks
operating frequency / 1617... 960 MHz
operating frequency / 21452... 1576 MHz
operating frequency / 31710... 2690 MHz
operating frequency / 43300... 4200 MHz
Ürün Hakkında
Please observe national approvals: www.siemens.com/mobilenetwork-approvals antenna için public 3G/4G/5G mobile kablosuz networks ve private 5G networks worldwide; omnidirectional characteristic; 600..5000 MHz antenna gain: 1..2dBi, incl. SMA male bağlantı, radial rotatable ile ek joint, IP65 (-20... +65 °C), observe national approvals; için direct installation ile SMA bağlantı system scope of teslimat: 1x ANT 897-4MA, compact instructions as hard copy German/English
Siemens 6GK5897-4MA00-0AA3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks
radio frequencies
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS, GSM
operating frequency / 1617... 960 MHz
operating frequency / 21452... 1576 MHz
operating frequency / 31710... 2690 MHz
operating frequency / 43300... 4200 MHz
operating frequency / 54400... 5000 MHz
electrical data
with linear radiationtypical maximum gain
with linear radiation / in operating frequency area 1 / typical1 dB
with linear radiation / in operating frequency area 2 / typical2 dB
with linear radiation / in operating frequency area 3 / typical2 dB
with linear radiation / in operating frequency area 4 / typical2 dB
with linear radiation / in operating frequency area 5 / typical2 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum3,5
number of electrical connections / of the antenna1
type of electrical connection / of the antennaN-Connector
design of plug-in connectionmale, variable 0-90°
mechanical data
of outer shellPC
colorblack
ambient conditions
during operation-20... +65 °C
during storage-30... +70 °C
protection class IPIP65
design, dimensions and weights
width35 mm
height160 mm
depth13 mm
net weight27 g
mast mountingYok
flat roof mountingYok
wall mountingYok
roof mountingYok
directly on the deviceVar
product features, product functions, product components / general
product feature / silicon-freeVar
standards, specifications, approvals
RoHS conformityVar
