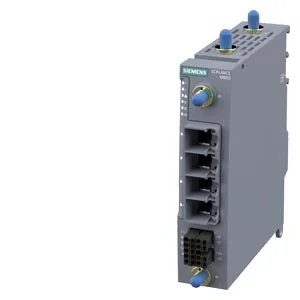

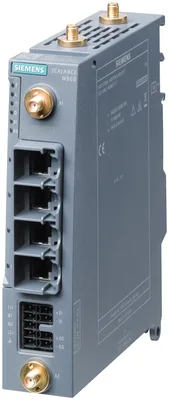

Siemens 6GK5853-2EA10-2AA1
SCALANCE MUM853-1 (A1) 5G router, IP30, için kablosuz IP communication from Ethernet-based applications via public 3/4/5G mobile radio networks ve private 5G networks, VPN, firewall, NAT, IPv6, bağlantı to SINEMA RC via CLP, 4 SMA connections, 1x micro SIM slot, eSIM, 4x10/100/1000 Mbps RJ45 port, redundant DC 24 V, -30… +60 °C, CLP slot, 1x DI ve 1x DO, observe national approvals: siemens.com/mobile-approvals CERT ID: MS5G16R-30-M1-RJ-E4-1
product brand nameSCALANCE
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
for external antenna(s)4
for power supply1
for redundant voltage supply1
for external antenna(s)SMA antenna socket (50 ohms)
Ürün Hakkında
SCALANCE MUM853-1 (A1) 5G router, IP30, için kablosuz IP communication from Ethernet-based applications via public 3/4/5G mobile radio networks ve private 5G networks, VPN, firewall, NAT, IPv6, bağlantı to SINEMA RC via CLP, 4 SMA connections, 1x micro SIM slot, eSIM, 4x10/100/1000 Mbps RJ45 port, redundant DC 24 V, -30… +60 °C, CLP slot, 1x DI ve 1x DO, observe national approvals: siemens.com/mobile-approvals CERT ID: MS5G16R-30-M1-RJ-E4-1
Siemens 6GK5853-2EA10-2AA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
with UMTS transmission / with downlink / maximum42 Mbit/s
with UMTS transmission / with uplink / maximum5,76 Mbit/s
for LTE transmission / with downlink / maximum1000 Mbit/s
for LTE transmission / with uplink / maximum200 Mbit/s
for 5G transmission / with downlink / maximum1000 Mbit/s
for 5G transmission / with uplink / maximum500 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum4
number of electrical/optical connections / for gigabit Ethernet / maximum4
for network components or terminal equipment4
for external antenna(s)4
for power supply1
for redundant voltage supply1
for internal networkRJ45 port (10/100/1000 Mbps, TP, auto-crossover)
for external antenna(s)SMA antenna socket (50 ohms)
for power supply5-pole terminal strip
memory
number of slots / for Micro-SIM card1
product component / eSIM integratedVar
design of the removable storage / CLPVar
signal inputs/outputs
number of digital inputs1
number of digital outputs1
type of electrical connection / at the digital inputs/outputsterminal block
input voltage / at digital input / at DC-30... +30 V
output voltage / at digital output / at DC / maximum24 V; 0,5 A
operational current / of the signaling contacts / at DC / at 30 V / maximum0,008 A
WAN connection
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS
type of mobile wireless service / is supportedHSDPA, HSUPA, HSPA+
5G Standalone (SA)n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75(DL), n77, n78, n79
5G Non-Standalone (NSA)n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n66, n71, n77, n78, n79
LTEB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(DL), B48, B66, B71
UMTSB1, B2, B4, B5, B6, B8, B19
supply voltage, current consumption, power loss
at DC / at 24 V0,55 A
at DC / at 24 V / sleep mode / maximum0,013 A
supply voltage / 1 / rated value24 V
type of voltageredundant power supply, 24 V DC
type of voltage / 1 / of the supply voltageDC
supply voltage / 2 / rated value24 V
type of voltage / 2 / of the supply voltageDC
ambient conditions
during operation-30... +60 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP30
design, dimensions and weights
designcompact
depth137 mm
height157 mm
width35 mm
net weight680 g
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
product features, product functions, product components / general
DynDNS clientVar
no-ip.com clientVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeYok
statistics packet typeYok
error statisticsYok
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
with VPN connectionIPsec, OpenVPN (as Client)
number of possible connections / with VPN connection20
type of authentication / with Virtual Private Network / PSKVar
IPsec tunnel and transport modeVar
1 / with IPsec AES / with Virtual Private Network128 bit
2 / with IPsec AES / with Virtual Private Network192 bit
3 / with IPsec AES / with Virtual Private Network256 bit
with IPsec 3DES / with Virtual Private Network168 bit
main modeVar
quick modeVar
type of packet authentication / with Virtual Private NetworkMD5, SHA-1, SHA-256, SHA-384, SHA-512
IETF profile / with Virtual Private Network / X.509v3 certificateVar
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals
for EMCETSI EN 301 489-1, ETSI EN 301 489-19, ETSI EN 301 489-52, EN 55011, NAMUR NE21
for emitted interferenceCISPR 32, ETSI EN 55032 Class A / Class B, EN IEC 61000-6-3, EN IEC 61000-6-4
for interference immunityCISPR 35, EN 55035, EN IEC 61000-6-1, EN IEC 61000-6-2
EC Declaration of ConformityVar
CE markingVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total390,86 kg
during manufacturing29,7 kg
during operation361 kg
after end of life0,16 kg
Aksesuarlar 67
Siemens 6GK5853-2EA10-2AA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0UB00-0AA0 | Aksesuar | |
| 6GK5908-0UA00-0AA0 | Aksesuar | |
| 6GK5897-4MA00-0AA3 | Aksesuar · Antenna | |
| 6XV1875-5LH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5897-4ME00-0AA0 | Aksesuar · Antenna | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6GK1720-1AH01-0BV0 | Aksesuar | |
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK5898-8MD00 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5MH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1875-5LE30 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5LH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5LH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5UH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5UH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5UH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5897-4MC00-0AA0 | Aksesuar · Antenna | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1876-2A | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical |
