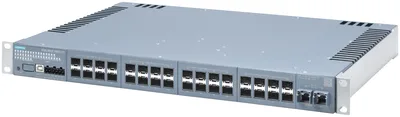

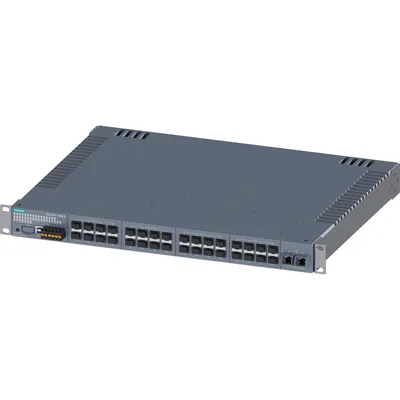

Siemens 6GK5334-5TS00-2AR3
SCALANCE XR302-32; managed layer 2, IE anahtar, 19" rack; 2x 1G/2.5G/5G/10 Gbps RJ45 port; 24x 100M/1G SFP port; 8x 1G/10G SFP+ port; LED diagnostics; error sinyalizasyon kontak; select/set buton; PROFINET IO cihaz; network management; dahili redundancy yönetici; office features (RSTP, VLAN, IGMP,..); CLP included in scope of besleme; güç kaynağı 24 V DC;
product brand nameSCALANCE
product type designationXR302-32
transfer rate100, 1000 Mbit/s
transfer rate2,5, 5, 10 Gbit/s
with securing collar0
for SFP24; 100 Mbps ve 1000 Mbps SFP usable
Ürün Hakkında
SCALANCE XR302-32; managed layer 2, IE anahtar, 19" rack; 2x 1G/2.5G/5G/10 Gbps RJ45 port; 24x 100M/1G SFP port; 8x 1G/10G SFP+ port; LED diagnostics; error sinyalizasyon kontak; select/set buton; PROFINET IO cihaz; network management; dahili redundancy yönetici; office features (RSTP, VLAN, IGMP,..); CLP included in scope of besleme; güç kaynağı 24 V DC;
Siemens 6GK5334-5TS00-2AR3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXR302-32
transfer rate
transfer rate100, 1000 Mbit/s
transfer rate2,5, 5, 10 Gbit/s
interfaces / for communication / integrated
for network components or terminal equipment2; RJ45
with securing collar0
number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar2
for SFP24; 100 Mbps ve 1000 Mbps SFP usable
for SFP+8; 1000 Mbps ve 10000 Mbps SFP usable
interfaces / other
for operator console1
for signaling contact1
for power supply2
for operator consoleUSB (2,0 type B, USB-to-serial adapter)
for signaling contact2-pole terminal block
for power supply2 x 2-pole terminal block
CLPVar
at AC / rated value24 V
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value72 W
power loss [W] / at DC / at 24 V / typical43,2 W
supply voltage / 1 / voltage range19,2... 31,2
consumed current / 1 / maximum3 A
consumed current / at DC / at 24 V / typical1,8 A
type of electrical connection / 1 / for power supply2 x 2-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 10 A / 250 V
type of voltage / 2 / of the supply voltageAC (50 / 60 Hz)
supply voltage / 2 / rated value24 V
power loss [W] / 2 / rated value76,8 W
supply voltage / 2 / voltage range19,2... 30
consumed current / 2 / maximum3,2 A
type of electrical connection / 2 / for power supply2 x 2-pole terminal block
fuse protection type / 2 / at input for supply voltageF 10 A / 250 V
ambient conditions
ambient temperature / in horizontal mounting position / during operation-40... +55 °C; Starting -40 °C; The maximum ambient temperature during operation depends on the operating height ve the plug-in transceivers, see also manual.
installation altitude / at height above sea level / maximum4000 m
at 25 °C / without condensation / during operation / maximum95 %
operating condition / fanless operationVar
protection class IPIP20
design, dimensions and weights
design19-inch rack
number of modular height units / relating to 19-inch cabinet1
width446 mm
height43,6 mm
depth374,8 mm
net weight8 kg
material / of the enclosuremetal
19-inch installationVar
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
number of automatically learnable MAC addresses16382
number of QoS queues / per port8
QoS according to IEEE 802.1QVar
Store & Forward switching methodVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
SMTP serverYok
port mirroringVar
multiport mirroringVar
Encapsulated Remote Traffic Mirroring (ERTM)Var
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum9194 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
SFTPVar
BOOTPYok
NETCONFYok
GMRPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicVar
number of VLANs / maximum2048
number of VLANs - dynamic / maximum2048
product function / VXLAN according to RFC 7348Var
product functions / DHCP
DHCP serverVar
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
of the PROFINET IO device / is supported / H-Sync forwardingVar
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
redundancy procedure MSTPVar
High-availability Seamless Redundancy (HSR)Var
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Var
passive listeningVar
STP/RSTPVar
STPVar
RSTPVar
MSTPVar
RSTP big network supportVar
LACPVar
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
IEEE 802.1x (radius)Var
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientVar
IEEE 1588 v2 transparent forwardingVar
NTPVar
SNTPVar
IEEE 1588 profile defaultYok
not less than100 ns
typical50 ns
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
product conformity / according to EMC-guideline2014/30/EU
for EMC interference emissionEN 61000-6-4
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 62368-1, UL 61010
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'Yok' are currently under renewal.
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Chinese Classification Society (CCS)Yok
Det Norske Veritas (DNV)Yok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Royal Institution of Naval Architects (RINA)Yok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total2239,67 kg
during manufacturing138 kg
during operation2101 kg
after end of life0,67 kg
product functions / general
MTBF16,7 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing138 kg
global warming potential [CO2 eq] / during operation2101 kg
global warming potential [CO2 eq] / after end of life0,67 kg
global warming potential [CO2 eq] / total2239,67 kg
