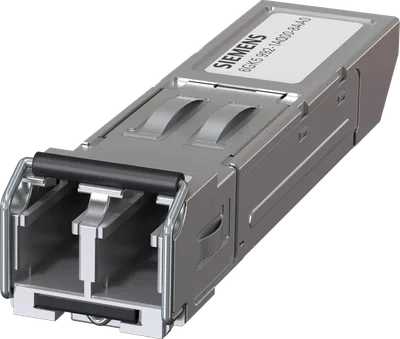

Siemens 6GK5992-1AQ00-8AA0
SCALANCE X aksesuar, Plug-in transceiver SFP992-1ELH 1x 1000 Mbit/s LC port, optical single-mode en çok max. 120 km.
product brand nameSCALANCE
wavelength / of the optical interface1550 nm; Single-mode
of the transmitter output / minimum0 dB
of the transmitter output / maximum5 dB
of the receiver input / maximum-8 dB
during operation-40... +85 °C
Ürün Hakkında
SCALANCE X aksesuar, Plug-in transceiver SFP992-1ELH 1x 1000 Mbit/s LC port, optical single-mode en çok max. 120 km.
Siemens 6GK5992-1AQ00-8AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum1
number of optical interfaces / for network components or terminal equipment / maximum1
number of 1000 Mbit/s LC ports / for single mode (LD) / integrated1
design of the optical interface / for network components or terminal equipmentLC
wavelength / of the optical interface1550 nm; Single-mode
of the transmitter output / minimum0 dB
of the transmitter output / maximum5 dB
of the receiver input / maximum-8 dB
optical sensitivity relating to 1 mW / of the receiver input / minimum-32 dB
attenuation factor / of the FOC transmission link / minimum necessary8 dB
range / at the optical interface / depending on the optical fiber used37... 120 km
transmission method / for connection type 11000BASE-ZX
ambient conditions
during operation-40... +85 °C
during storage-40... +85 °C
during transport-40... +85 °C
noteA maximum operating temperature of +85 °C is permissible for a duration of 16 hours
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

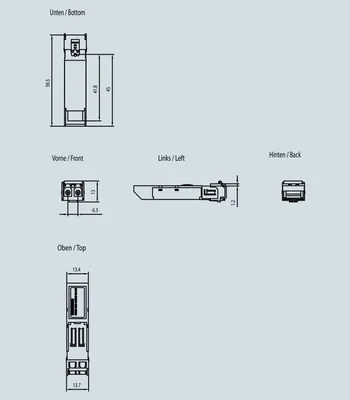

design, dimensions and weights
designSFP Module
width14 mm
height9 mm
depth57 mm
net weight0,02 kg
fastening methodlatched
standards, specifications, approvals
for FMFM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
for hazardous zoneEN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
for safety / from CSA and ULUL 62368-1 ve CAN/CSA C22.2 Yok. 62368-1:19
for emitted interferenceEN 61000-6-4:2007 (Class A)
for interference immunityEN 61000-6-2:2005
certificate of suitabilityEN 61000-6-2:2005, EN 61000-6-4:2007
CE markingVar
C-TickVar
KC onayıYok
CCC / for hazardous zone according to GB standardVar; GB3836.1, GB3836.8
CCC / for hazardous zone according to GB standard / as markingEx nA IIC T4 Gc
French marine classification society (BV)Var
MTBF430 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total18,95 kg
during manufacturing1,7 kg
during operation17,24 kg
after end of life0,01 kg
