Siemens
6GK1411-1AC00
MFR #6GK1411-1AC00
SKU #YLSUPUJLQ5SX
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

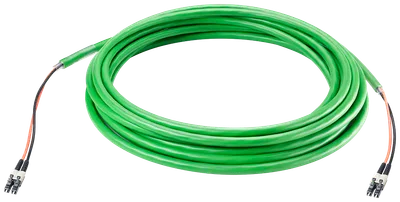

Siemens 6XV1873-5AN40
FO standart kablo GP 50/125, pre-assembled ile 2x LC duplex connectors, uzunluk 40 m.
product brand nameSIMATIC NET
cable designationAT-W(ZN)YY 2x1 G 50/125 OM2++
wire length40 m
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum0,7 dB/km
at 850 nm600 GHz·m
Ürün Hakkında
FO standart kablo GP 50/125, pre-assembled ile 2x LC duplex connectors, uzunluk 40 m.
Siemens 6XV1873-5AN40
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useCable for installation indoors ve outdoors, UL approval
version of the assembled FO cablePre-assembled with 2x LC DUPLEX connectors
cable designationAT-W(ZN)YY 2x1 G 50/125 OM2++
wire length40 m
optical data
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum0,7 dB/km
at 850 nm600 GHz·m
at 1300 nm1200 GHz·m
mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2
version of the FO conductor fiberMulti-mode gradient fiber 50/125 µm, OM 2
design of the FOC coreHollow core, filled, diameter 1400 µm
design of the fiber-optic cablesegmentable
of the optical fibers50 µm
of the optical fiber sheath125 µm
of the FOC core sheath2,9 mm
symmetrical deviation / of the outer diameter of the FOC core sheath0,1 mm
width / of cable sheath7,4 mm
thickness / of cable sheath4,5 mm
of the fiber-optic cable coreQuartz glass
of the optical fiber sheathQuartz glass
of the FOC core sheathPVC
of the fiber-optic cable sheathPVC
of the strain reliefAramid fibers
of the FOC core sheathorange/black
of cable sheathgreen
with single bend / minimum permissible45 mm
with multiple bends / minimum permissible65 mm
during installation / short-term1200 N
during operation / maximum500 N
short-term shear force per length600 N/cm
continuous shear force per length400 N/cm
weight per length40 kg/km
ambient conditions
during operation-25... +80 °C
during storage-25... +80 °C
during transport-25... +80 °C
during installation-5... +50 °C
fire behaviorflame-resistant acc. to IEC 60332-1-2 ve IEC 60332-3-22 (Cat. A)
to mineral oilconditional resistance
to greaseconditional resistance
radiological resistance / to UV radiationresistant
protection class IPIP20
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
product component / rodent protectionYok
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum5000 m
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum750 m
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum2000 m
for glass FOC / with PROFIBUS / maximum3000 m
standards, specifications, approvals
UL onayıVar; c(UL)us OFN FT4
RoHS conformityVar
