Siemens 6XV1873-5RN10

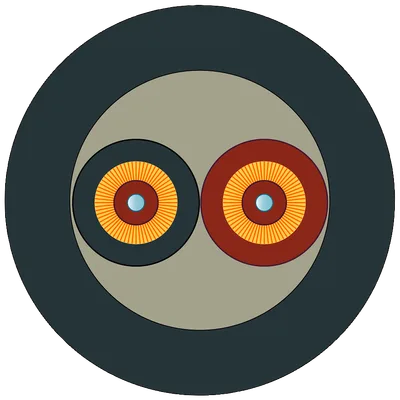

FO Robust kablo GP 50/125, pre-assembled ile 2x LC Duplex connectors, uzunluk 10 m.
product brand nameSIMATIC NET
cable designationAT-V(ZN)H(ZN)BH 2G50/125 OM2+
wire length10 m
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum1 dB/km
at 850 nm600 GHz·m
Ürün Hakkında
FO Robust kablo GP 50/125, pre-assembled ile 2x LC Duplex connectors, uzunluk 10 m.
Siemens 6XV1873-5RN10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useWaterproof cable (lengthwise ve sideways) with non-metallic protection against rodents for use indoors ve outdoors as well as for direct routing underground
version of the assembled FO cablePre-assembled with 2x LC DUPLEX connectors
cable designationAT-V(ZN)H(ZN)BH 2G50/125 OM2+
wire length10 m
optical data
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum1 dB/km
at 850 nm600 GHz·m
at 1300 nm1200 GHz·m
mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2
version of the FO conductor fiberMulti-mode gradient fiber 50/125/245 µm, OM2
design of the FOC coreSolid core, diameter 900 µm
design of the fiber-optic cablesegmentable
of the optical fibers50 µm
of the optical fiber sheath125 µm
of the FOC core sheath2,2 mm
outer diameter / of the cable7,5 mm
of the fiber-optic cable coreQuartz glass
of the optical fiber sheathQuartz glass
of the FOC core sheathPE flame retardant
of the fiber-optic cable sheathPE flame retardant
of the strain reliefAramid fibers ve glass roving
of the FOC core sheathorange/black, with direction arrow
of cable sheathBlack
with single bend / minimum permissible25 mm
with multiple bends / minimum permissible40 mm
during installation / short-term2000 N
during operation / maximum1000 N
short-term shear force per length600 N/cm
continuous shear force per length200 N/cm
weight per length67 kg/km
ambient conditions
during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
during installation-20... +60 °C
fire behaviorflame-resistant acc. to IEC 60332-3-24
to mineral oilconditional resistance
to greaseconditional resistance
to waterresistant
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeVar
silicon-freeVar
product component / rodent protectionVar
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum5000 m
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum750 m
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum2000 m
for glass FOC / with 10GBaseSR / for Industrial Ethernet / maximum60 m
for glass FOC / with PROFIBUS / maximum3000 m
standards, specifications, approvals
RoHS conformityVar
