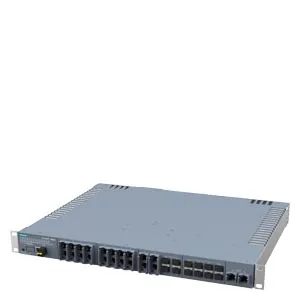

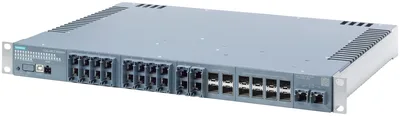

Siemens 6GK5334-3TS01-3AR3
SCALANCE XRM334; managed layer 2; IE anahtar, 19" rack; 20x, 100/1000 Mbps RJ45 port; 2x 1G/2.5G/5G/10 Gbps RJ45 port; 4x 100 MB/1G SFP port; 8x 1G/10G SFP+ port; LED diagnostics; error sinyalizasyon kontak; select/set buton; PROFINET IO cihaz; network management; dahili redundancy yönetici; office features (RSTP, VLAN, IGMP,..); CLP included in scope of besleme; güç kaynağı 230 V AC;
product brand nameSCALANCE
product type designationXRM334
transfer rate10, 100, 1000 Mbit/s
transfer rate2,5, 5, 10 Gbit/s
with securing collar22
for SFP4; 100 Mbps ve 1000 Mbps SFP usable
Ürün Hakkında
SCALANCE XRM334; managed layer 2; IE anahtar, 19" rack; 20x, 100/1000 Mbps RJ45 port; 2x 1G/2.5G/5G/10 Gbps RJ45 port; 4x 100 MB/1G SFP port; 8x 1G/10G SFP+ port; LED diagnostics; error sinyalizasyon kontak; select/set buton; PROFINET IO cihaz; network management; dahili redundancy yönetici; office features (RSTP, VLAN, IGMP,..); CLP included in scope of besleme; güç kaynağı 230 V AC;
Siemens 6GK5334-3TS01-3AR3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXRM334
transfer rate
transfer rate10, 100, 1000 Mbit/s
transfer rate2,5, 5, 10 Gbit/s
interfaces / for communication / integrated
for network components or terminal equipment22; RJ45
with securing collar22
number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar2
for SFP4; 100 Mbps ve 1000 Mbps SFP usable
for SFP+8; 1000 Mbps ve 10000 Mbps SFP usable
interfaces / other
for operator console1
for signaling contact1
for power supply1
for operator consoleUSB (2,0 type B, USB-to-serial adapter)
for signaling contact2-pole terminal block
for power supplyIEC plug C14 AC supply veya 2-pole terminal block for DC supply
CLPVar
at AC / rated value24 V
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYok
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value240 V; 100 V... 240 V DC
power loss [W] / 1 / rated value99 W
supply voltage / 1 / voltage range77... 300
consumed current / 1 / maximum0,8 A
type of electrical connection / 1 / for power supply2 x 2-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 4 A / 250 V
type of voltage / 2 / of the supply voltageAC (50 / 60 Hz)
ambient conditions
ambient temperature / in horizontal mounting position / during operation-25... +60 °C; Starting -25 °C; The maximum ambient temperature during operation depends on the operating height ve the plug-in transceivers, see also manual.
installation altitude / at height above sea level / maximum3000 m
at 25 °C / without condensation / during operation / maximum95 %
operating condition / fanless operationVar
protection class IPIP20
design, dimensions and weights
design19-inch rack
number of modular height units / relating to 19-inch cabinet1
width446 mm
height43,6 mm
depth374,8 mm
net weight8,2 kg
material / of the enclosuremetal
19-inch installationVar
product features, product functions, product components / general
cascading in cases of star topologyany (depending only on signal propagation time)
number of automatically learnable MAC addresses16382
number of QoS queues / per port8
QoS according to IEEE 802.1QVar
product conformity / according to IEEE 802.1Qbu and IEEE 802.3br (Frame Preemption)Var
Store & Forward switching methodVar
product license
product license / Upgrade licenseVar; layer 3 license
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONYok
SMTP serverYok
port mirroringVar
multiport mirroringVar
Encapsulated Remote Traffic Mirroring (ERTM)Var
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETII
telegram length / for Ethernet / maximum9194 bayt
TelnetYok
HTTPVar
HTTPSVar
TFTPVar
FTPVar
SFTPVar
BOOTPYok
NETCONFVar
GMRPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicVar
number of VLANs / maximum2048
number of VLANs - dynamic / maximum2048
product functions / DHCP
DHCP serverYok
DHCP clientVar
DHCP Option 82Yok
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yok
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Yok
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerYok
high speed redundancy protocol (HRP) with standby redundancyYok
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Yok
redundancy procedure MSTPVar
passive listeningVar
eRSTPVar
LACPVar
system modification during operation
product function / configuration in RUN via CiR/H-CiRYok
product functions / security
product conformity / according to IEEE 802.1X-port based Network Access ControlYok
RADIUSVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
IEEE 1588 v2 transparent forwardingVar
NTPVar
SNTPVar
IEEE 1588 profile defaultVar
not less than100 ns
typical50 ns
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
product conformity / according to EMC-guideline2014/30/EU
for EMC interference emissionEN 61000-6-4
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 62368-1, UL 61010 - 2
standards, specifications, approvals / other
railway application in accordance with EN 50121-4Var; use only in areas not accessible to the public
railway application in accordance with EN 50125-3Var; Section 4,2: Class AX (up to 2000m); section 4,3: T1: Containers N.T.C ve T.C. / Buildings N.C.C ve C.C, T2: Containers N.T.C ve T.C. / Buildings N.C.C ve C.C, TX: Containers N.T.C ve T.C. / Buildings N.C.C ve C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used; section 4,4: T1: Containers C.C. / Buildings N.C.C ve C.C., T2: Containers C.C. / Buildings N.C.C ve C.C, T3: Containers C.C. / Buildings N.C.C ve C.C; section 4,11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 62368-1, UL 61010-2-10; section 4,13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4,14: yes; section 4,15: yes, according to manual.
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'Yok' are currently under renewal.
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Chinese Classification Society (CCS)Yok
Det Norske Veritas (DNV)Yok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Royal Institution of Naval Architects (RINA)Yok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total1274,81 kg
during manufacturing225,96 kg
during operation1048 kg
after end of life0,85 kg
product functions / general
MTBF8,6 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing225,96 kg
global warming potential [CO2 eq] / during operation1048 kg
global warming potential [CO2 eq] / after end of life0,85 kg
global warming potential [CO2 eq] / total1274,81 kg
