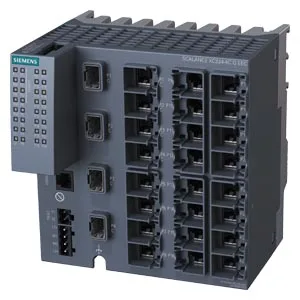

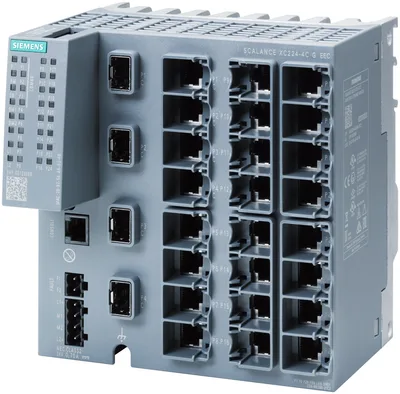

Siemens 6GK5224-4GS00-2FC2
SCALANCE XC224-4C G EEC managed Layer 2 IE anahtar; IEC 62443-4-2 certified; Full Gigabit; 20x 10/100/1000 Mbps RJ45 ports; 4x 1000 Mbps combo ports (either 1000 Mbps/ SFPs veya 10/100/1000 Mbps RJ45 ports can be used); 1x console port; diagnostics LED; yedekli besleme besleme; ile painted printed circuit boards NAMUR NE21-compliant; temp. range -40 °C to +70 °C; montaj: DIN rail/S7 montaj rail/wall; redundancy functions; Office features (RSTP, VLAN,…); PROFINET IO cihaz; Ethernet/IP-compliant;
product brand nameSCALANCE
product type designationXC224-4C G EEC
transfer rate10, 100, 1000 Mbit/s
number of 10/100/1000 Mbit/s RJ45 ports24
for SFP4
for operator console1
Ürün Hakkında
SCALANCE XC224-4C G EEC managed Layer 2 IE anahtar; IEC 62443-4-2 certified; Full Gigabit; 20x 10/100/1000 Mbps RJ45 ports; 4x 1000 Mbps combo ports (either 1000 Mbps/ SFPs veya 10/100/1000 Mbps RJ45 ports can be used); 1x console port; diagnostics LED; yedekli besleme besleme; ile painted printed circuit boards NAMUR NE21-compliant; temp. range -40 °C to +70 °C; montaj: DIN rail/S7 montaj rail/wall; redundancy functions; Office features (RSTP, VLAN,…); PROFINET IO cihaz; Ethernet/IP-compliant;
Siemens 6GK5224-4GS00-2FC2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXC224-4C G EEC
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment24; RJ45
number of 10/100/1000 Mbit/s RJ45 ports24
number of combo ports / with RJ45 interface for optical plug-in transceiver4; 1000 MBit/s SFPs
interfaces / for communication / plug-in
for SFP4
interfaces / other
for operator console1
for signaling contact1
for power supply1
for operator consoleRJ11
for signaling contact2-pole terminal block
for power supply3-pole terminal block, permanently installed
C-PLUGVar
at DC / rated value24 V
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value16,8 W
supply voltage / 1 / voltage range9,6... 31,2
consumed current / 1 / maximum0,7 A
type of electrical connection / 1 / for power supply3-pole terminal block, permanently installed
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage3,15 A / 125 V
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width140 mm
height150 mm
depth125 mm
net weight1,3 kg
product feature / conformal coatingVar
material / of the enclosurePolycarbonate (PC-GF10) / pressure die cast aluminum
35 mm DIN-rail mountingVar
wall mountingYok
S7-300 rail mountingVar
S7-1500 rail mountingVar
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
QoS according to DSCPVar
Cut Through switching methodYok
Store & Forward switching methodVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
SMTP serverYok
port mirroringVar
multiport mirroringVar
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum10240 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
SFTPVar
BOOTPVar
GMRPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP serverVar
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
of the PROFINET IO device / is supported / H-Sync forwardingVar
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
redundancy procedure MSTPVar
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
LACPVar
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
IEEE 802.1x (radius)Var
RADIUS clientVar
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientVar
NTPVar
SNTPVar
IEEE 1588 profile defaultVar
standards, specifications, approvals
CE markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
product conformity / according to EMC-guideline2014/30/EU
for EMC interference emissionEN 61000-6-4, EN 50121-4
for immunity to EMCEN 61000-6-2, EN 50121-4
for safety / from CSA and ULUL 60950-1 E115352, UL-61010-2 E85972
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
railway application in accordance with EN 50121-4Var
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Var
Chinese Classification Society (CCS)Var
Det Norske Veritas (DNV)Var
Korean Register of Shipping (KRS)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Var
Polski Rejestr Statkow (PRS)Var
Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total339,9 kg
during manufacturing57,33 kg
during operation281,79 kg
after end of life0,76 kg
product functions / general
MTBF20 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing57,33 kg
global warming potential [CO2 eq] / during operation281,79 kg
global warming potential [CO2 eq] / after end of life0,76 kg
global warming potential [CO2 eq] / total339,9 kg
