Siemens 6XV1870-4UE50

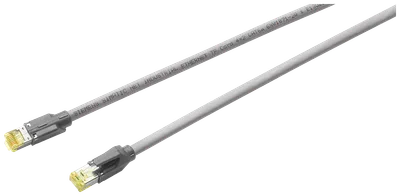

Industrial Ethernet TP cord RJ45/RJ45, Cat6a, S/FTP cable 4x2(gray), pre-assembled with 2 RJ45 connectors, length 0.5 m.
product brand nameSIMATIC NET
cable designationS/FTP, LI 02YSCH 4x2x0,15 PIMF GR FRNC
wire length0,5 m
number of electrical connections2
at 10 MHz / maximum0,086 dB/m
at 100 MHz / maximum0,28 dB/m
Ürün Hakkında
Industrial Ethernet TP cord RJ45/RJ45, Cat6a, S/FTP cable 4x2(gray), pre-assembled with 2 RJ45 connectors, length 0.5 m.
Siemens 6XV1870-4UE50
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useEasy connection of terminal devices to the IE FC cabling system
cable designationS/FTP, LI 02YSCH 4x2x0,15 PIMF GR FRNC
wire length0,5 m
electrical data
number of electrical connections2
at 10 MHz / maximum0,086 dB/m
at 100 MHz / maximum0,28 dB/m
at 300 MHz / maximum0,485 dB/m
at 600 MHz / maximum0,675 dB/m
at 1 MHz ... 100 MHz100 Ω
at 10 MHz … 600 MHz100 Ω
of the characteristic impedance at 1 MHz … 100 MHz5 %
coupling loss / at 30 MHz … 100 MHz / minimum85 dB
transfer impedance per length / at 10 MHz10 mΩ/m
loop resistance per length / maximum290 mΩ/m
RMS value80 V
NVP value in percent76 %
mechanical data
number of electrical cores8
design of the shieldS/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
of AWG26 insulated conductor0,5 mm
of inner conductor0,5 mm
of the wire insulation1 mm
of cable sheath6,2 mm
symmetrical tolerance of the outer diameter / of cable sheath0,3 mm
of the wire insulationpolyethylene (PE)
of cable sheathFRNC
of the insulation of data wireswhite/blue, white/orange, white/green, white/brown
of cable sheathgray
with single bend / minimum permissible31 mm
with multiple bends / minimum permissible62 mm
weight per length46 kg/km
plug
connector typeRJ45
type of plug interlocklatched
design of plug-in connectionRJ45-180
ambient conditions
during operation-25... +80 °C
during storage-25... +80 °C
during transport-25... +80 °C
during installation-25... +80 °C
noteIn fixed installation -40 °C to 80 °C
fire behaviorflame resistant acc. to IEC 60332-1-2, EN 60332-3-24, smoke density acc. to IEC 61034
class of burning behaviour / according to EN 13501-6Eca
to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)
to greaseConditional resistance
radiological resistance / to UV radiationnot resistant
protection class IPIP20
product features, product functions, product components / general
halogen-freeVar; halogen-free according to EN 60754-2
PoE capabilityVar
PoE+ capabilityVar
PoE++ capabilityVar
silicon-freeVar
at AC / core-to-core500 V
at AC / core shield1500 V
standards, specifications, approvals
UL/ETL listing / 300 V RatingYok
UL/ETL style / 600 V RatingVar; E502506 AWM STYLE 21279, Wiring Harness
certificate of suitabilityISO/IEC 11801-1, IEC 61035
EAC approvalVar
UL onayıVar
RoHS conformityVar
standard for structured cablingCat6A
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
