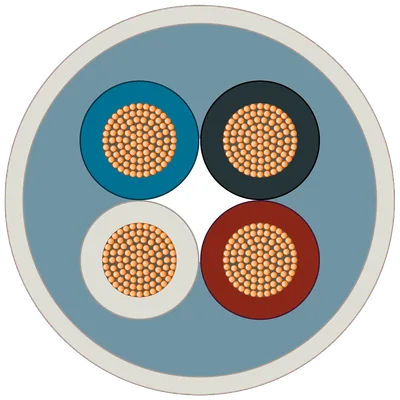

Siemens 6XV1801-2A
Robust Energy kablo, 4-core güç hat, stranded wires 4x 0,75 mm2 teslimat ünite: max. 1000 m, minimum order quantity 20 m sold by the meter
product brand nameSIMATIC NET
cable designationLI9YY6Y 4X1X0.75 GY
insulation resistance coefficient20 GΩ·m
operating voltage / RMS value300 V
number of electrical cores4
of inner conductor1,15 mm
Ürün Hakkında
Robust Energy kablo, 4-core güç hat, stranded wires 4x 0,75 mm2 teslimat ünite: max. 1000 m, minimum order quantity 20 m sold by the meter
Siemens 6XV1801-2A
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useCable with FEP jacket (fluorinated plastic, perfluoroethylene propylene) for use in the food, beverage ve tobacco industry (IP65/67/69 resistant, EHEDG approval). Cable is water-repellent, weather-proof, resistant to microbes, ve extremely resistant to many cleaning agents ve disinfectants (such as hypochlorite, chlorine dioxide, peroxyacetic acid, ve quaternary ammonium cations).
cable designationLI9YY6Y 4X1X0.75 GY
electrical data
insulation resistance coefficient20 GΩ·m
operating voltage / RMS value300 V
conductor cross section / of the power line0,75 mm²
continuous current / of the power lines6,5 A; 40°C according to DIN VDE 0891-1 (8 A 20°C according to DIN VDE 0891-1)
mechanical data
number of electrical cores4
of inner conductor1,15 mm
of the wire insulation1,7 mm
of cable sheath5,7 mm
symmetrical tolerance of the outer diameter / of cable sheath0,2 mm
conductor class5
of the conductorCU, blank
of the wire insulationPP
of cable sheathPVC/FEP; FEP transparent
product component / PE connectionYok
marking / of coresColor
of the power line insulationbrown / blue, white / black
of cable sheathgray
with single bend / minimum permissible23 mm
with multiple bends / minimum permissible46 mm
with continuous bending100 mm
number of bending cycles500000; acceleration 4 m/s²
number of torsion cycles / with torsion by ± 180° on 1 m cable length1000000
tensile load / maximum150 N
weight per length53 kg/km
ambient conditions
during operation-40... +90 °C
during storage-40... +90 °C
during transport-40... +90 °C
during installation-40... +90 °C
noteelectrical characteristics measured 20 ºC, tests according to DIN 47250 Part 4 veya DIN VDE 0472
fire behaviorFlame-resistant acc. to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6Eca
to mineral oiloil resistant according to DIN EN 60811-404 (7x24h/90°C)
to greaseresistant
to waterresistant
radiological resistance / to UV radiationresistant according to UL 2556 Sec. 4.2.8.5
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(ETL)us 3047254, CMG FT4 75°C, (ETL)us PLTC-ER, SUN RES, OIL RES I veya E130266 AWM 22161 AWM I A/B 80°C 300V FT2
UL/ETL style / 600 V RatingYok
EAC approvalVar
RoHS conformityVar
for hygienic designEHEDG, Installation ve layout of the cables must fulfil the requirements of EHEDG published in the Guidelines Doc. 13 Hygienic Design of open equipment for processing food ve Doc. 44 Hygienic Design Principles for food factories to be accessible for cleaning. Also connections must be easily cleanable by using EHEDG certified cable glands veya connectors.
Aksesuarlar 8
Siemens 6XV1801-2A motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1906-0EA00 | Aksesuar | |
| 6GK1906-0EB00 | Aksesuar | |
| 6GK1907-0AB11-6AA0 | Aksesuar | |
| 6GK1907-0DB10-6AA3 | Aksesuar | |
| 6GK1907-0DC00-6AA5 | Aksesuar | |
| 6GK1907-0DC10-6AA3 | Aksesuar | |
| 6GK1908-0DB10-6AA0 | Aksesuar | |
| 6GK1908-0DC10-6AA0 | Aksesuar |
