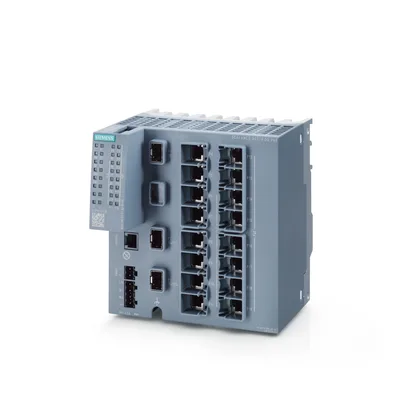

Siemens 6GK5216-3RS00-5AC2
SCALANCE XC216-3G PoE Manageable Layer 2 IE PoE anahtar; 14x 10/100/1000 Mbps RJ45 PoE ports according to IEEE802.3at; 2 ports thereof according to IEEE802.3bt; IEC 62443-4-2 certified; 2x 10/100/1,000 Mbps RJ45; 2x 1,000, 10,000 Mbps SFP+; 1x 1,000 Mbps SFP; PoE support için 54 V DC infeed; 300 W PoE güç can be distributed among all PoE ports; 1x console port; diagnostics LED; yedekli besleme besleme; sıcaklık range -40 °C to +60 °C; montaj on DIN rail/S7 montaj rail /wall; redundancy functions; Office features (RSTP, VLAN,...); PROFINET cihaz; Etherne(*)
product brand nameSCALANCE
product type designationXC216-3G PoE (DC 54 V)
transfer rate10, 100, 1000 Mbit/s
transfer rate10 Gbit/s
with securing collar / with PoE14
for SFP3
Ürün Hakkında
SCALANCE XC216-3G PoE Manageable Layer 2 IE PoE anahtar; 14x 10/100/1000 Mbps RJ45 PoE ports according to IEEE802.3at; 2 ports thereof according to IEEE802.3bt; IEC 62443-4-2 certified; 2x 10/100/1,000 Mbps RJ45; 2x 1,000, 10,000 Mbps SFP+; 1x 1,000 Mbps SFP; PoE support için 54 V DC infeed; 300 W PoE güç can be distributed among all PoE ports; 1x console port; diagnostics LED; yedekli besleme besleme; sıcaklık range -40 °C to +60 °C; montaj on DIN rail/S7 montaj rail /wall; redundancy functions; Office features (RSTP, VLAN,...); PROFINET cihaz; Etherne(*)
Siemens 6GK5216-3RS00-5AC2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXC216-3G PoE (DC 54 V)
transfer rate
transfer rate10, 100, 1000 Mbit/s
transfer rate10 Gbit/s
interfaces / for communication / integrated
for network components or terminal equipment16; RJ45
with securing collar16; 12 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W)
with securing collar / with PoE14
for SFP3
interfaces / for communication / plug-in
for SFP1
for SFP+2; SFPs with 1000 Mbit/s veya 10,000 Mbit/s possible; 100 Mbit/s with SFP991-1(LD) A possible
interfaces / other
for operator console1
for signaling contact1
for operator consoleRJ11
for signaling contact2-pole terminal block
for power supply4-pole terminal block
C-PLUGVar
at DC / rated value54 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
total / maximum338 W
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value54 V
power loss [W] / 1 / rated value28 W
supply voltage / 1 / voltage range52... 57
consumed current / 1 / maximum6,5 A
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage15 A / 125 V
ambient conditions
during operation-40... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
noteinstallation position ve SFPs used during the operation have to be considered (see manual)
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width140 mm
height147 mm
depth125 mm
net weight1,14 kg
product feature / conformal coatingYok
material / of the enclosurePolycarbonate (PC-GF10) / pressure die cast aluminum
35 mm DIN-rail mountingVar
wall mountingYok
S7-300 rail mountingVar
S7-1500 rail mountingVar
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
QoS according to DSCPVar
Cut Through switching methodYok
Store & Forward switching methodVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
SMTP serverYok
port mirroringVar
multiport mirroringVar
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum10240 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
SFTPVar
BOOTPVar
GMRPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP serverVar
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
of the PROFINET IO device / is supported / H-Sync forwardingVar
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
redundancy procedure MSTPVar
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
LACPVar
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
IEEE 802.1x (radius)Var
RADIUS clientVar
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientVar
NTPVar
SNTPVar
IEEE 1588 profile defaultVar
standards, specifications, approvals
CE markingVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
product conformity / according to EMC-guideline2014/30/EU
for EMC interference emissionEN 61000-6-4, EN 50121-4
for immunity to EMCEN 61000-6-2, EN 50121-4
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
railway application in accordance with EN 50121-4Var
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total491,2 kg
during manufacturing52,28 kg
during operation438,3 kg
after end of life0,62 kg
product functions / general
MTBF23 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing52,28 kg
global warming potential [CO2 eq] / during operation438,3 kg
global warming potential [CO2 eq] / after end of life0,62 kg
global warming potential [CO2 eq] / total491,2 kg
