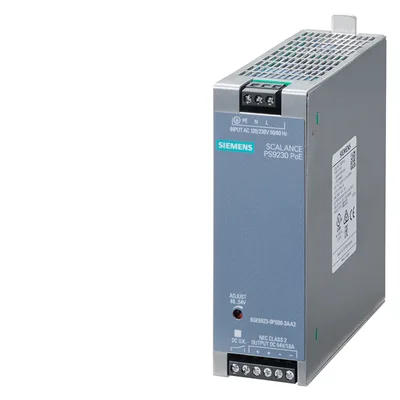

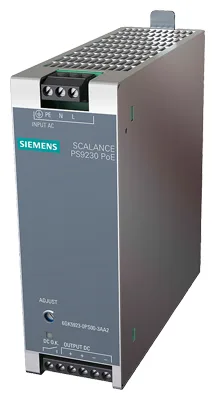

Siemens 6GK5923-0PS00-3AA2
See SIOS ID 109983816 için güç over Ethernet, giriş: 120/230 V AC, çıkış: 54 V DC/1,6 A NEC sınıf 2.
product brand nameSCALANCE
suitability for usePower supply for PoE
product categoryPower supply
voltage curve / at inputAC single phase
supply voltage / 1 / rated value230 V
supply voltage / 1 / rated value85... 264 V
Ürün Hakkında
See SIOS ID 109983816 için güç over Ethernet, giriş: 120/230 V AC, çıkış: 54 V DC/1,6 A NEC sınıf 2.
Siemens 6GK5923-0PS00-3AA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
type of current supplyInput: AC 120 / 230 V, Output: DC 54 V / 1,6 A, NEC CLASS 2
suitability for usePower supply for PoE
electrical data
product categoryPower supply
electrical data / input
voltage curve / at inputAC single phase
supply voltage / 1 / rated value230 V
supply voltage / 1 / rated value85... 264 V
type of voltage / 1 / of the supply voltageAC
consumed current / 1 / at rated supply voltage / maximum1 A
design of input / wide range inputVar
overvoltage categoryCategory II
buffering time / for rated value of the output current / in the event of power failure / minimum50 ms
50 HzVar
60 HzVar
line frequency47... 63 Hz
input current / at rated input voltage 230 V / rated value1 A
current limitation / of inrush current / at 25 °C / maximum35 A
fuse protection type / at inputFuse T 3.15A soldered
electrical data / output
voltage curve / at outputControlled, isolated DC voltage, adjustable from 48 V to 54 V
1 / at DC / rated value54 V
display version / for normal operationLED green for DC ok
behavior of the output voltage / when switching onOvershoot of Ua < 2 %
startup delay time / maximum1,5 s
voltage increase time / of the output voltage / maximum15 ms
rated value1,6 A
rated range0... 1,8 A
supplied active power / typical86 W
product feature / parallel switching of channelsYok
number of parallel-switched equipment resources / for increasing the power0
efficiency in percent89 %
power loss [W]11 W
electrical data / closed-loop control
relative overall tolerance / of the voltage1 %
residual ripple / maximum0,05 V
voltage peak / maximum0,2 V
on slow fluctuation of input voltage0,2 %
on slow fluctuation of ohm loading0,5 %
load step of resistive load 50/100/50 % / typical0,5 %
with rapid fluctuation of the input voltage by +/- 15% / typical0,3 %
load step 50 to 100% / typical0,5 ms
load step 100 to 50% / typical0,5 ms
electrical data / protection and monitoring
design of the overvoltage protection / at output< 60 V
response value current limitation / typical1,7 A
property of the output / short-circuit proofVar
design of short-circuit protectionElectronic shutdown, automatic restart
electrical data / safety
galvanic isolation / between input and outputVar
galvanic isolationSafety extra-low output voltage Uout acc. to EN 60950-1
operating resource protection classClass I
maximum3,5 mA
typical2 mA
interfaces
for power supply3
for signaling contact2
for signaling contactScrew terminal 0,5 - 2,5 mm²
at inputPE / L / N screw-type terminal 0,5 - 2,5 mm²
at output2x + / 2x -, screw-type terminal 0,5 - 2,5 mm²
signal inputs/outputs
product component / signaling contactVar
relay designNormal open contact (N/O)
at DC / rated value24 V
at DC / maximum60 V
at DC / maximum0,3 A
at DC / at 30 V / maximum0,3 A

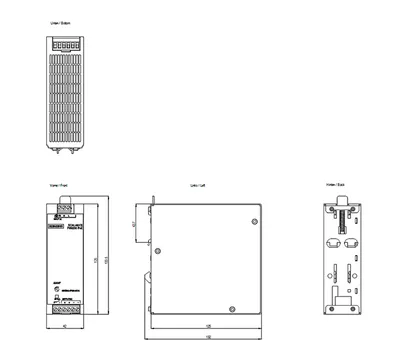

design, dimensions and weights
width42 mm
height125 mm
depth125 mm
net weight0,5 kg
product feature / of the enclosure / housing can be lined upVar
19-inch installationYok
wall mountingYok
35 mm DIN-rail mountingVar
S7-300 rail mountingYok
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
noteConvection
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
environmental category / according to IEC 60721Climate class 3K3, without condensation
protection class IPIP20
standards, specifications, approvals
for safety / from CSA and ULcULus listed (UL508, CSA C22.2 Yok. 107,1)
for emitted interferenceEN 61000-6-4: 2007
for interference immunityEN 61000-6-2
certificate of suitabilityEN 61000-6-4: 2007
CE markingVar
C-TickVar
MTBF115 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total595,15 kg
during manufacturing62,11 kg
during operation532,64 kg
after end of life0,4 kg
Aksesuarlar 1
Siemens 6GK5923-0PS00-3AA2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9MC0110-1EG00-0AA3 | Servis · Box PC |
