How can I get a price quote for Siemens 6GK5788-1GD00-0AA0?

You can request a fast quote for Siemens 6GK5788-1GD00-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B02C35B6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5788-1GD00-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5788-1GD00-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5788-1GD00-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

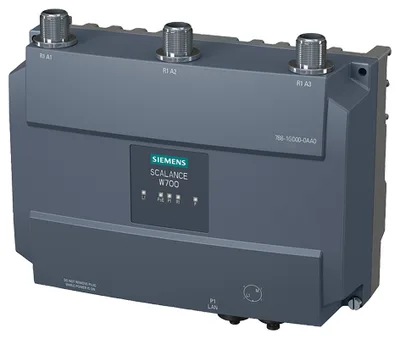

Siemens 6GK5788-1GD00-0AA0

Please observe national approvals: www.siemens.com/wireless-approvals discontinuation; IWLAN access point, SCALANCE W788-1 M12, 1 radio, 3 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross 450 Mbps per radio, 1x M12 max. 1 Gbps, PoE, redundant 24 V DC,M12 A-coded IP65, -20..+60 °C, plug slot, WPA2/802.11i/e, observe national approvals! CERT ID: RAPN-W1-M12-E3, includes: MPCIE-R1-ABGN-U3, scope of supply: manuals on CD-ROM, German/English, M12 sealing caps; for operation outside of USA/Israel

SiemensMFR # 6GK5788-1GD00-0AA0SKU # CEY-8EF3B02C35B6

product brand nameSCALANCE

with WLAN / maximum450 Mbit/s

for Industrial Ethernet10, 100, 1000 Mbit/s

for power supply1

for redundant voltage supply1

for power supplyM12 interface (4-pole, A-coded)

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5788-1GD00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

transfer rate

with WLAN / maximum450 Mbit/s

for Industrial Ethernet10, 100, 1000 Mbit/s

interfaces

for network components or terminal equipment1

for power supply1

for redundant voltage supply1

for network components or terminal equipmentM12 interface (8-pole, X-coded), PoE

for power supplyM12 interface (4-pole, A-coded)

memory

C-PLUGYes

KEY-PLUGYes

interfaces / wireless

number of radio cards / permanently installed1

transmission mode / for multiple input multiple output (MIMO)3x3

number of spatial streams3

number of electrical connections / for external antenna(s)3

type of electrical connection / for external antenna(s)N-Connect (socket)

product feature / external antenna can be mounted directly on deviceYes

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V

from Power-over-Ethernet according to IEEE802.3at for type 250 V

at DC / at 24 V / typical0.45 A

with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0.22 A

at DC / at 24 V / typical10.7 W

from M12 Power Connector (A-coded) for redundant power supply19.2 V

from M12 Power Connector (A-coded) for redundant power supply28.8 V

ambient conditions

during operation-20 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity / at 25 °C / without condensation / during operation / maximum90 %

ambient condition / for operationWhen used under hazardous conditions (Zone 2), the SCALANCE W788-x or W748-x product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of at least IP 54 in compliance with EN 60529.

protection class IPIP65

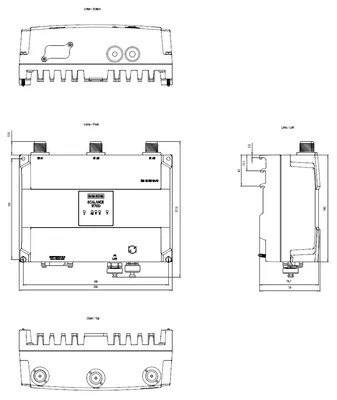

design, dimensions and weights

width / of the enclosure / without antenna200 mm

height / of the enclosure / without antenna176 mm

depth / of the enclosure / without antenna79 mm

net weight1.7 kg

fastening methodFor 35 mm DIN rail mounting an additional mounting adapter is required

S7-300 rail mountingYes

S7-1500 rail mountingYes

35 mm DIN-rail mountingYes

wall mountingYes

radio frequencies

for WLAN in 2.4 GHz frequency band2.41 ... 2.48 GHz; depending on the country approvals

for WLAN in 5 GHz frequency band4.9 ... 5.8 GHz; depending on the country approvals

product features, product functions, product components / general

product function / Access Point ModeYes

product function / client ModeYes

number of SSIDs8

iPCF Access PointYes; Only in combination with the 'KEY-PLUG W780 iFeatures'

iPCF clientYes; Only in combination with the 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures'

iPCF-MC Access PointNo

iPCF-MC clientYes; Only in combination with 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures'

number of iPCF-capable radio modules1

product function / iREFYes; In combination only with 'KEY-PLUG W780 iFeatures'

number of iREF-capable radio modules1

product function / iPRPYes; In combination with the 'KEY-PLUG W780 iFeatures' only

product functions / management, configuration, engineering

number of manageable IP addresses / in client8

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

configuration with STEP 7 in the TIA PortalYes

operation with IWLAN controllerNo

operation with Enterasys WLAN controllerNo

forced roaming on IP down with IWLANYes

forced roaming on link down with IWLANYes

WDSYes

Address Resolution Protocol (ARP)Yes

ICMPYes

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

DCPYes

LLDPYes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

PROFINET IO diagnosisYes

link checkNo

connection monitoring IP-AliveNo

localization via AeroscoutYes

SysLogYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

product functions / VLAN

function VLAN with IWLANYes

product functions / DHCP

DHCP clientYes

DHCP serverYes

DHCP Option 82Yes

product functions / redundancy

STP/RSTPYes

MSTPYes

RSTPYes

product functions / security

ACL - MAC-basedYes

management security, ACL-IP basedYes

IEEE 802.1x (radius)Yes

NAT/NAPTNo

access protection according to IEEE802.11iYes

WPA/WPA2Yes

TKIP/AESYes

SSHYes

RADIUSYes

product functions / time

NTPYes

SNTPYes

SIMATIC time synchronization (SIMATIC Time)Yes

standards, specifications, approvals

for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X

for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1

EC Declaration of ConformityYes

CE markingYes

C-TickYes

E1 approvalYes

railway application in accordance with EN 50155Yes

railway application in accordance with EN 50121-4Yes

fire protection in accordance with EN 45545-2Yes

NEMA TS2No

IEC 61375No

IEC 61850-3No

NEMA4XNo

Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afYes

Power-over-Ethernet according to IEEE802.3at for type 2Yes

IEEE 802.11aYes

IEEE 802.11bYes

IEEE 802.11eYes

IEEE 802.11gYes

IEEE 802.11hYes

IEEE 802.11iYes

IEEE 802.11nYes

standards, specifications, approvals / marine classification

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)Yes

DNV GLYes

Korean Register of Shipping (KRS)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (NK)Yes

Polski Rejestr Statkow (PRS)Yes

Royal Institution of Naval Architects (RINA)Yes

standards, specifications, approvals / hazardous environments

standard / for hazardous zoneEN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X

from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480

certificate of suitability / CCC / for hazardous zone according to GB standardYes; GB3836.1, GB3836.8

as markingEx nA IIC T4 Gc
