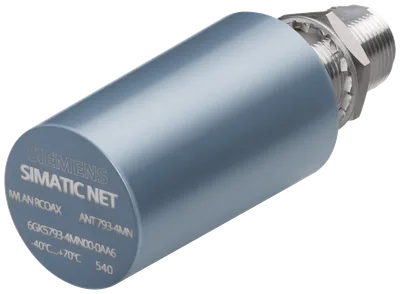

Siemens 6GK5793-4MN00-0AA6

ANT793-4MN IWLAN antenna for RCoax systems; Lambda/4 with omnidirectional Characteristic, 6 dBi incl. N-female plug IP65 (-40-+70 °C), 5 GHz.

SiemensMFR # 6GK5793-4MN00-0AA6SKU # CEY-8EF3B030B4FC

product brand nameSCALANCE

type of wireless network / is supportedWLAN

for WLAN in 5 GHz frequency band 15.15 ... 5.85 GHz

with linear radiationmaximum antenna gain

impedance50 Ω

polarizationvertical (lambda 5/8 characteristic)

Have questions?Chat on WhatsApp

About This Product

ANT793-4MN IWLAN antenna for RCoax systems; Lambda/4 with omnidirectional Characteristic, 6 dBi incl. N-female plug IP65 (-40-+70 °C), 5 GHz.

Siemens 6GK5793-4MN00-0AA6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

radio frequencies

type of wireless network / is supportedWLAN

for WLAN in 5 GHz frequency band 15.15 ... 5.85 GHz

electrical data

with linear radiationmaximum antenna gain

of the WLAN antenna / in the 5 GHz frequency band6 dB

impedance50 Ω

polarizationvertical (lambda 5/8 characteristic)

radiation characteristicomnidirectional

standing wave ratio (VSWR) / maximum2

in the 5 GHz frequency band / horizontal360°

in the 5 GHz frequency band / vertical40°

number of electrical connections / of the antenna1

type of electrical connection / of the antennaN-Connector

design of plug-in connectionfemale

angle of inclination / downward / maximum0°

mechanical data

of outer shellPolycarbonate

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

protection class IPIP65

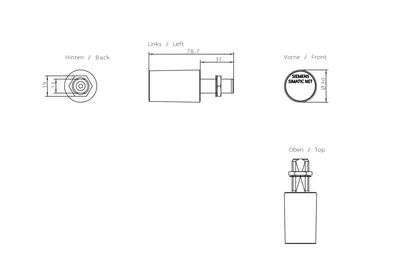

design, dimensions and weights

height78.7 mm

diameter30 mm

net weight65 g

product features, product functions, product components / general

product feature / silicon-freeYes

standards, specifications, approvals

RoHS conformityYes

product conformityUL 94-V1
